KSP90R-AHMRKW (2008)

Toyota Yaris (Jpp)

Production Aug 2008 - Aug 2011
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )KSP90..JPP

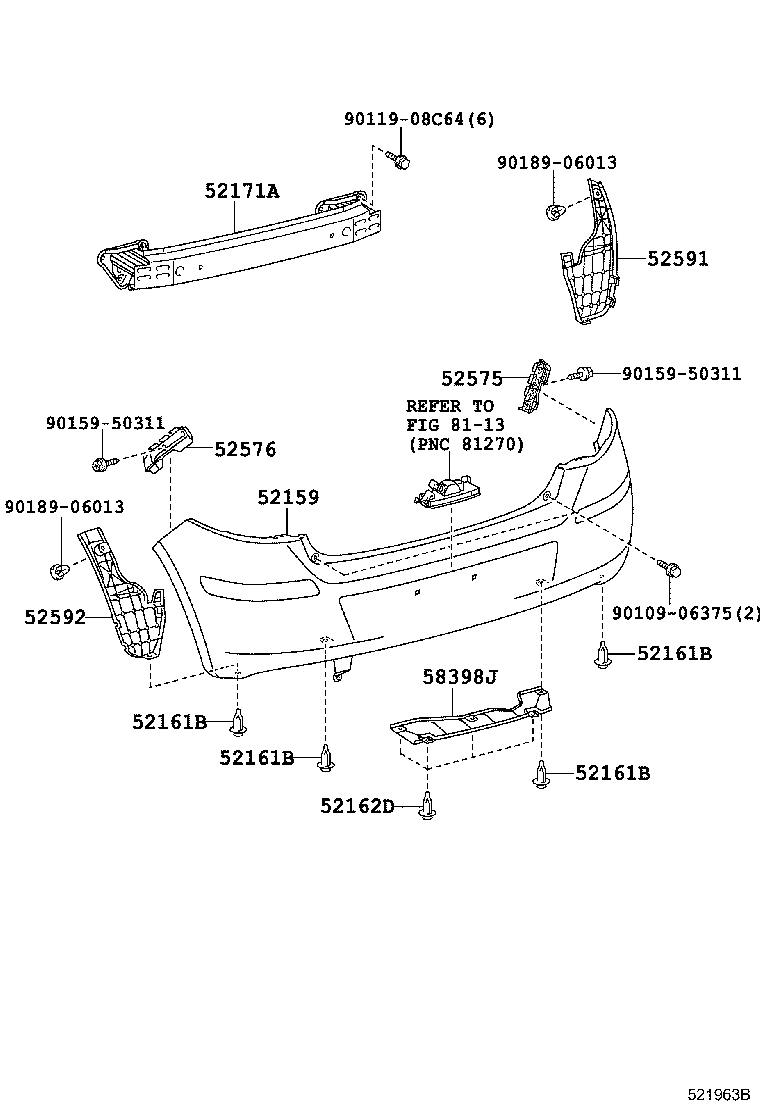

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52161B 52162D 52171A 52575 52576 52591 52592 58398J 8113 9010906375 9011908C64 9015950311 9015950311 9018906013 9018906013
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-52952

KSP90..JPP

PAINT REQ.

 1
52159-52922

KSP90..JPP

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

KSP90..JPP

 4
52161-16010

KSP90..JPP

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90..JPP

 4
52161-16010

KSP90..JPP

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90..JPP

 4
52161-16010

KSP90..JPP

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90..JPP

 4
52161-16010

KSP90..JPP

 4
52162D - PIECE, REAR BUMPER
52161-16010

KSP90..JPP..RHD

AIR SPATS-WITH(FRONT)

 4
52161-16010

KSP90..JPP;ZSP90..JPP..6F

 4
52161-16010

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 4
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-52020

KSP90..JPP;ZSP90..JPP..6F

 1
52023-52020

KSP90,ZSP90..JPP

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52111

KSP90..JPP;ZSP90..JPP..6F

 1
52575-52110

KSP90,ZSP90..JPP

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52090

KSP90,ZSP90..JPP

 1
52576-52091

KSP90..JPP;ZSP90..JPP..6F

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52270

KSP90..JPP

 1
52591-52180

KSP90..JPP

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52270

KSP90..JPP

 1
52592-52170

KSP90..JPP

 1
58398J - COVER, FLOOR UNDER, NO.1
58398-52030

KSP90..JPP

 1
58398-52030

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 1
58398-52030

KSP90..JPP..RHD

AIR SPATS-WITH(FRONT)

 1
Common parts
90109-06375
90119-08C64
90159-50311
90189-06013
Linked diagrams
8113
