KSP90R-AHMRKW (2008)
Toyota Yaris (Jpp)

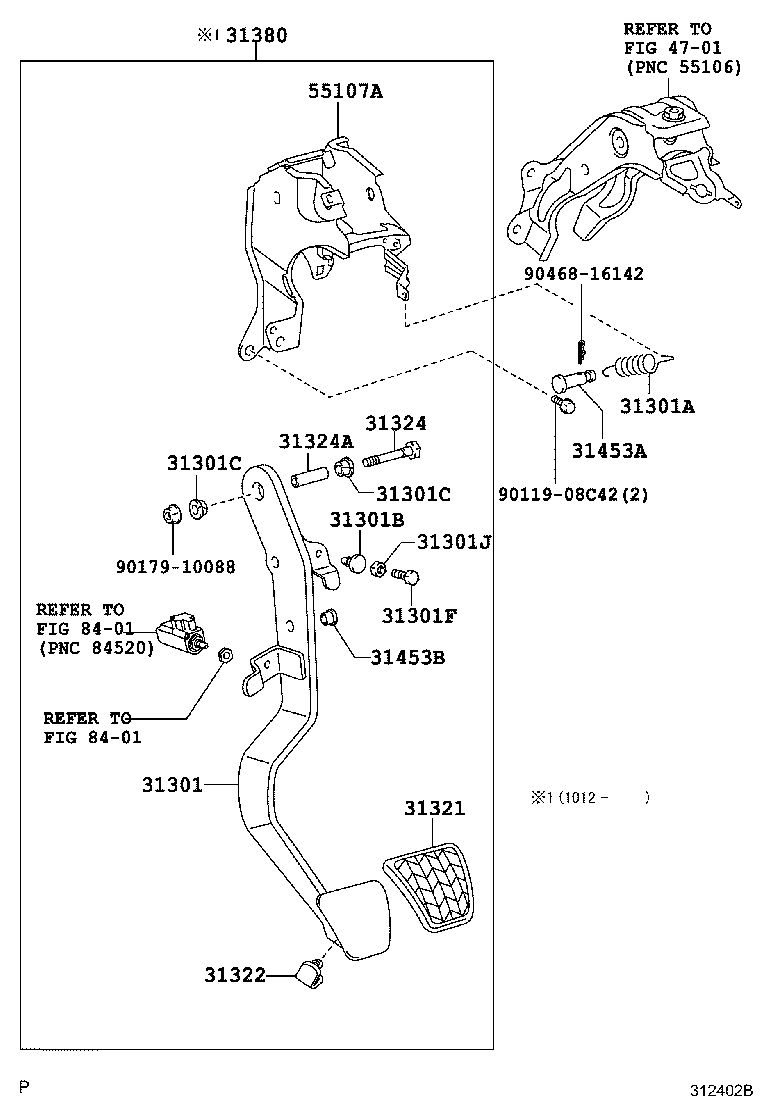

ILLUST NO. 1 OF 2(0808- )KSP90..JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-52100 |
KSP90..JPP..RHD |
1 | ||
| 31301-52130 |
KSP90..JPP..RHD |
1 | ||
| 31301-52131 |
KSP90..JPP |
1 | ||
| 31301-52150 |
KSP90..JPP |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14055 |
KSP90..JPP |
1 | ||
| 90507-14047 |
KSP90..JPP |
1 | ||
| 90507-14047 |
KSP90..JPP |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 90541-06036 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 90386-13015 |
KSP90..JPP;ZSP90..JPP..6F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 90386-13015 |
KSP90..JPP;ZSP90..JPP..6F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 91112-61025 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 91112-61025 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-10017 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 90170-10017 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 31321-52010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 31322 - STOPPER, CLUTCH PEDAL | ||||
| 31322-52010 |
KSP90,ZSP90..JPP..RHD..5F |
1 | ||
| 31322-52010 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 90101-10015 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 90105-10444 |
KSP90..JPP |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
KSP90,ZSP90..JPP..RHD..5F |
1 | ||
| 90387-10003 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 31380 - SUPPORT ASSY, PEDAL | ||||
| 31380-52340 |
KSP90..JPP |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08051 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F L=31.5 |
1 | ||
| 90249-08051 |
KSP90,ZSP90..JPP..RHD..5F L=31.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KSP90..JPP..RHD |
1 | ||
| 90386-08033 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-52110 |
KSP90..JPP..RHD |
1 | ||
| 55107-52240 |
KSP90..JPP |
1 | ||
| 55107-52170 |
KSP90..JPP..RHD |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 8401 | ||||
