KSP90R-AHMRKW (2008)
Toyota Yaris (Jpp)

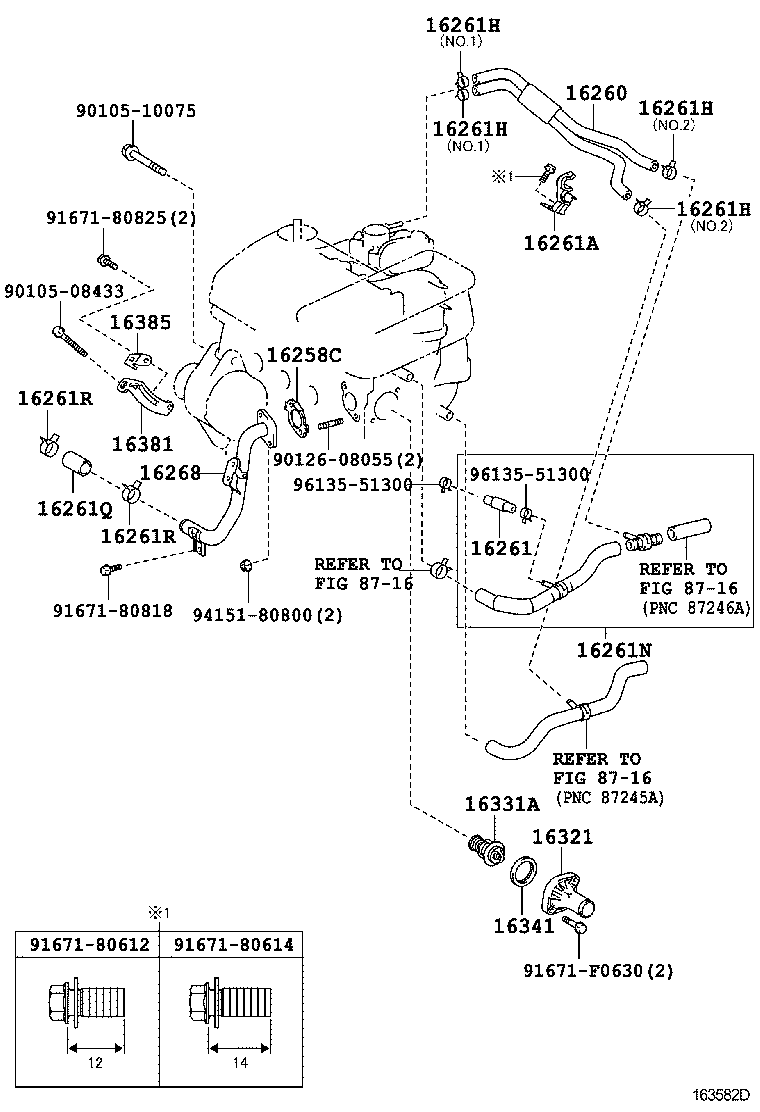

ILLUST NO. 2 OF 2(0808- )1KRFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40010 |
1KRFE..KSP90..JPP |
1 | ||
| 16258-40010 |
1KRFE..KSP90..JPP |
1 | ||
| 16258-40020 |
1KRFE..KSP90..JPP |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-40070 |
1KRFE..KSP90..JPP |
1 | ||
| 16260-40040 |
1KRFE..KSP90..JPP |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-40061 |
1KRFE..KSP90..JPP L=67 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 16581-40010 |
1KRFE..KSP90..JPP |
1 | ||
| 16581-40010 |
1KRFE..KSP90..JPP |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-W0002 |
1KRFE..KSP90..JPP (L),NO.1 |
2 | ||
| 90466-W0002 |
1KRFE..KSP90..JPP (L),NO.1 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..JPP (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..JPP (L),NO.2 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..JPP (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..JPP (L),NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-W0002 |
1KRFE..KSP90..JPP (L),NO.1 |
2 | ||
| 90466-W0002 |
1KRFE..KSP90..JPP (L),NO.1 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..JPP (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..JPP (L),NO.2 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..JPP (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..JPP (L),NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-W0002 |
1KRFE..KSP90..JPP (L),NO.1 |
2 | ||
| 90466-W0002 |
1KRFE..KSP90..JPP (L),NO.1 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..JPP (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..JPP (L),NO.2 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..JPP (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..JPP (L),NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-W0002 |
1KRFE..KSP90..JPP (L),NO.1 |
2 | ||
| 90466-W0002 |
1KRFE..KSP90..JPP (L),NO.1 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..JPP (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..JPP (L),NO.2 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..JPP (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..JPP (L),NO.2 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16260-40012 |
1KRFE..KSP90..JPP |
1 | ||
| 16261Q - HOSE, WATER BY-PASS | ||||
| 16261-40111 |
1KRFE..KSP90..JPP |
1 | ||
| 16261-40111 |
1KRFE..KSP90..JPP |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-30001 |
1KRFE..KSP90..JPP |
2 | ||
| 90466-30001 |
1KRFE..KSP90..JPP |
2 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-30001 |
1KRFE..KSP90..JPP |
2 | ||
| 90466-30001 |
1KRFE..KSP90..JPP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-40040 |
1KRFE..KSP90..JPP |
1 | ||
| 16268-40050 |
1KRFE..KSP90..JPP |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-40010 |
1KRFE..KSP90..JPP |
1 | ||
| 16321-40010 |
1KRFE..KSP90..JPP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03134 |
1KRFE..KSP90..JPP |
1 | ||
| 90916-03134 |
1KRFE..KSP90..JPP |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KSP90..JPP |
1 | ||
| 16341-35010 |
1KRFE..KSP90..JPP |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-40041 |
1KRFE..KSP90..JPP |
1 | ||
| 16381-40070 |
1KRFE..KSP90..JPP |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-40011 |
1KRFE..KSP90..JPP |
1 | ||
| 16385-40011 |
1KRFE..KSP90..JPP |
1 | ||
| Common parts | ||||
| 90105-08433 | ||||
| 90105-10075 | ||||
| 90126-08055 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80818 | ||||
| 91671-80825 | ||||
| 91671-F0630 | ||||
| 94151-80800 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 8716 | ||||
