KSP90R-AHMGKW (2005)
Toyota Yaris (Jpp)
ILLUST NO. 2 OF 3(0508- )JPP..RHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2 | ||||
| 55082-52010 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-52020 |
KSP90,ZSP90..JPP..RHD..5F |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52180 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55843-52170 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55871-52040 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52120 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-52020 |
KSP90,ZSP90..JPP..RHD..5F |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52010 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52020 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

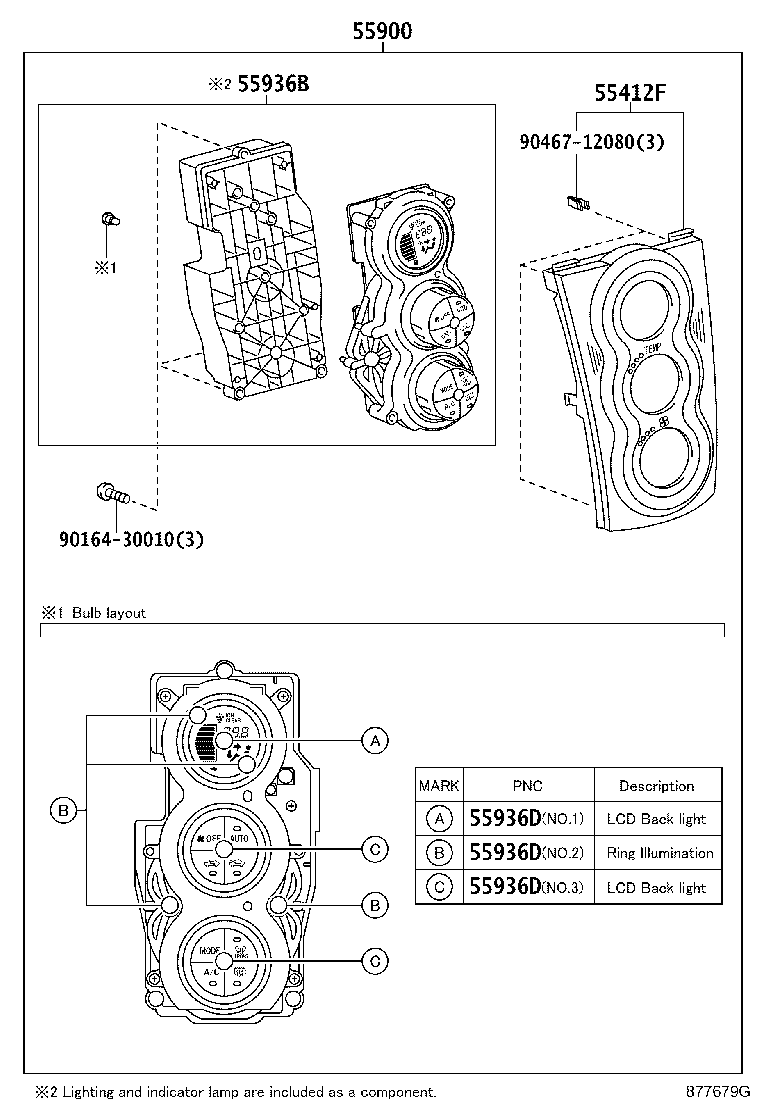

ILLUST NO. 1 OF 3(0508- )JPP..SOL,TS
CONTROL PANEL---AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55410-52050B0 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI),LT.SILVER,TRIM18,19 |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-52380B0 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI),LT.SILVER,TRIM1# |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-52170 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01114 |
KSP90..JPP..SOL 14V 0.98W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.1 |
1 | ||
| 90010-01115 |
KSP90..JPP..SOL 14V 0.98W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.2 |
4 | ||
| 90010-01097 |
KSP90..JPP..SOL 14V 1.12W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.3 |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01114 |
KSP90..JPP..SOL 14V 0.98W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.1 |
1 | ||
| 90010-01115 |
KSP90..JPP..SOL 14V 0.98W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.2 |
4 | ||
| 90010-01097 |
KSP90..JPP..SOL 14V 1.12W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.3 |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01114 |
KSP90..JPP..SOL 14V 0.98W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.1 |
1 | ||
| 90010-01115 |
KSP90..JPP..SOL 14V 0.98W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.2 |
4 | ||
| 90010-01097 |
KSP90..JPP..SOL 14V 1.12W,W(CAP),AIR CONDITIONER-AUTO(B/PWM COMP/VARI),NO.3 |
2 | ||
| Common parts | ||||
| 90164-30010 | ||||
| 90467-12080 | ||||
ILLUST NO. 3 OF 3(0508- )JPP
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-47021 |
KSP90,ZSP90..JPP..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
KSP90,ZSP90..JPP..5F |
1 | ||
ILLUST NO. 1 OF 3(0508- )JPP
CONTROL PANEL---MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1 | ||||
| 90010-01113 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 90010-01113 |
KSP90..JPP |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-52090 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 55901-52090 |
KSP90..JPP..SOL |
1 | ||
| 55901-52100 |
KSP90..JPP..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 55901-52100 |
KSP90..JPP..SOL AIR CONDITIONER-WITHOUT |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-52010 |
KSP90..JPP |
1 | ||
| 55902-52010 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2 | ||||
| 90010-01113 |
KSP90..JPP |
1 | ||
| 90010-01113 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-52010 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 55903-52010 |
KSP90..JPP |
1 | ||
| 55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3 | ||||
| 90010-01113 |
KSP90..JPP |
1 | ||
| 90010-01113 |
KSP90..JPP..SOL AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
KSP90,ZSP90..JPP..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 55906-52132 |
KSP90,ZSP90..JPP |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52130 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 55908-52130 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52120 |
KSP90,ZSP90..JPP |
1 | ||
| 55909-52120 |
KSP90,ZSP90..JPP..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
