KSP90R-AHMGKW (2005)
Toyota Yaris (Jpp)
(0508- )JPP..RHD
W/O(AIR CONDITIONER)

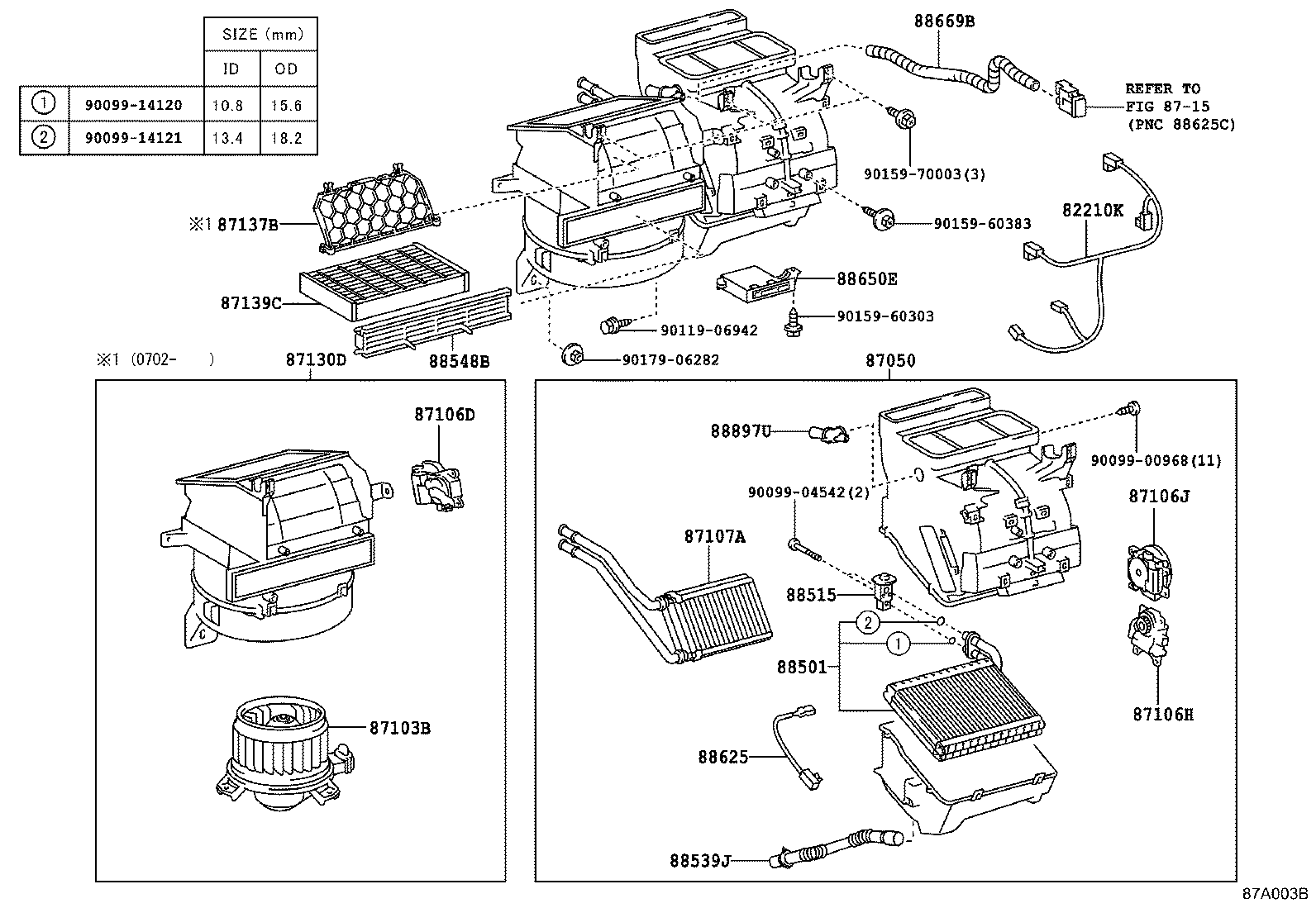

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52020 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87050-52051 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87050-52012 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87050-52051 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52130 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87103-52120 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52060 |
KSP90,ZSP90..JPP |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52030 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87130-52110 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-52040 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87130-52110 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87130-52031 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87130-52111 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-52111 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
KSP90,ZSP90..JPP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52020 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52381 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88650-52291 |
ZSP90..JPP..LHD..5F;KSP90..JPP..RHD..SOL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 88650-52291 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) |
1 | ||
| 88650-52291 |
ZSP90..JPP..LHD..5F;KSP90..JPP..RHD..SOL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88650-52291 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 88650-52381 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(0508- )JPP..RHD
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52051 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87050-52012 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87050-52020 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87050-52051 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52130 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87103-52120 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52060 |
KSP90,ZSP90..JPP |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52030 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87130-52110 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-52040 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87130-52110 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87130-52031 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87130-52111 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-52111 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-52010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
KSP90,ZSP90..JPP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52090 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26070 |
KSP90,ZSP90..JPP..(SOL,TS) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52020 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KSP90,ZSP90..JPP..5F..(SOL,TS) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52381 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88650-52291 |
ZSP90..JPP..LHD..5F;KSP90..JPP..RHD..SOL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 88650-52291 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) |
1 | ||
| 88650-52291 |
ZSP90..JPP..LHD..5F;KSP90..JPP..RHD..SOL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88650-52291 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 88650-52381 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(0508- )JPP..RHD..SOL,TS
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52010 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52051 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87050-52012 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87050-52020 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87050-52051 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52130 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87103-52120 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52100 |
KSP90,ZSP90..JPP..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-52080 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-52090 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52060 |
KSP90,ZSP90..JPP |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52030 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87130-52110 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-52040 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 87130-52110 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87130-52031 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 87130-52111 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-52111 |
KSP90..JPP..RHD..SOL AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-52010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52090 |
KSP90,ZSP90..JPP..RHD..(SOL,TS) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26070 |
KSP90,ZSP90..JPP..(SOL,TS) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52020 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KSP90,ZSP90..JPP..5F..(SOL,TS) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52381 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88650-52291 |
ZSP90..JPP..LHD..5F;KSP90..JPP..RHD..SOL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 88650-52291 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) |
1 | ||
| 88650-52291 |
ZSP90..JPP..LHD..5F;KSP90..JPP..RHD..SOL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88650-52291 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F AIR CONDITIONER-L/ UNIT (W/H ONLY) |
1 | ||
| 88650-52291 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-WITHOUT |
1 | ||
| 88650-52381 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52050 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
