KSP90R-AHMGKW (2005)
Toyota Yaris (Jpp)
(0508- )KSP90..JPP ; (0508- )ZSP90..JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-52050 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52250 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52260 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52250 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52261 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52250 |
KSP90..JPP..SOL;ZSP90..JPP..LHD |
1 | ||
| 89741-52251 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52251 |
KSP90..JPP..SOL;ZSP90..JPP..LHD |
1 | ||
| 89741-52262 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52251 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89740-52051 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
(0508- )KSP90..JPP..RHD
W(DOUBLE LOCKING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52010 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,LOWER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,UPPER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52010 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,LOWER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,UPPER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 85970B - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 85970-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300 - BOX ASSY, ECU AGGREGATION | ||||
| 89300-52021 |
KSP90..JPP..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52011 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52012 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52013 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52051 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52052 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52030 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-52050 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52250 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52260 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52250 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52261 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52250 |
KSP90..JPP..SOL;ZSP90..JPP..LHD |
1 | ||
| 89741-52251 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52251 |
KSP90..JPP..SOL;ZSP90..JPP..LHD |
1 | ||
| 89741-52262 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52251 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89740-52051 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50322 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8401 | ||||

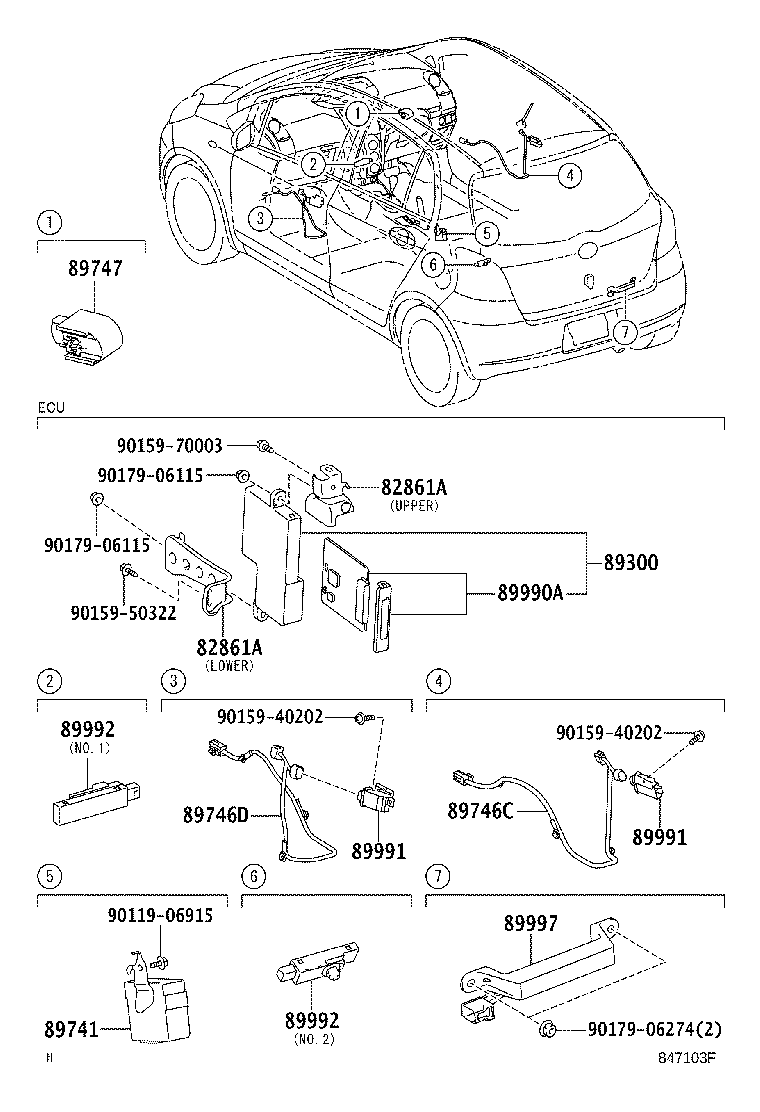

(0508- )JPP..RHD..SOL
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52010 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,LOWER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,UPPER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52010 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,LOWER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,UPPER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 89300 - BOX ASSY, ECU AGGREGATION | ||||
| 89300-52021 |
KSP90..JPP..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52011 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52012 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52013 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52051 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52052 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52030 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-52050 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52250 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52260 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52250 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52261 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52250 |
KSP90..JPP..SOL;ZSP90..JPP..LHD |
1 | ||
| 89741-52251 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52251 |
KSP90..JPP..SOL;ZSP90..JPP..LHD |
1 | ||
| 89741-52262 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52251 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89740-52051 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-52030 |
KSP90..JPP..5D..SOL;ZSP90..JPP..LHD..5D..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-52040 |
KSP90..JPP..5D..SOL;ZSP90..JPP..LHD..5D..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-52010 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89747-48020 |
KSP90..JPP..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-52081 |
KSP90..JPP..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52081 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52111 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52112 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52112 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52111 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,RH |
1 | ||
| 89991-30050 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LH |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,RH |
1 | ||
| 89991-30050 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LH |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-52020 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,NO.2 |
1 | ||
| 89992-52010 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,NO.1 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-52020 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,NO.2 |
1 | ||
| 89992-52010 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,NO.1 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-52010 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-40202 | ||||
| 90159-50322 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||

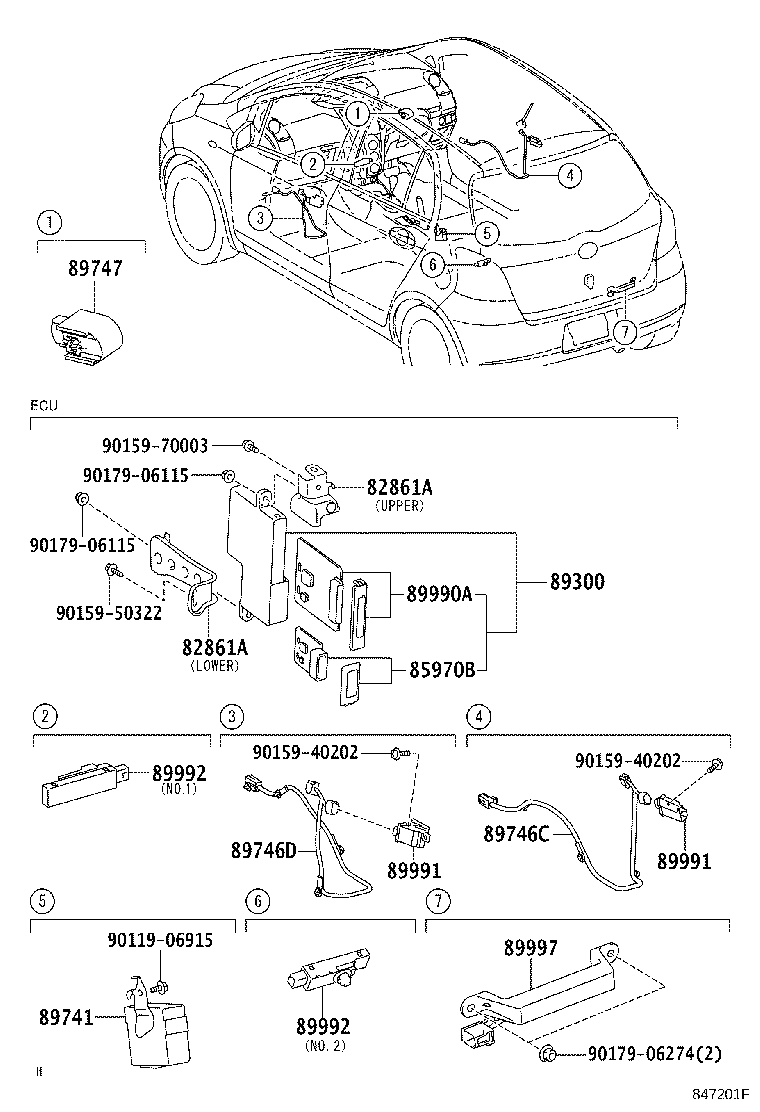

(0508- )JPP..RHD..SOL,TS
W(DOUBLE LOCKING & SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52010 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,LOWER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,UPPER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52010 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,LOWER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING,UPPER |
1 | ||
| 82861-52010 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LOWER |
1 | ||
| 85970B - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 85970-52020 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300 - BOX ASSY, ECU AGGREGATION | ||||
| 89300-52021 |
KSP90..JPP..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52011 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52012 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52013 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52051 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52052 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89300-52030 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-52050 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52250 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52260 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52250 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52261 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52250 |
KSP90..JPP..SOL;ZSP90..JPP..LHD |
1 | ||
| 89741-52251 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52251 |
KSP90..JPP..SOL;ZSP90..JPP..LHD |
1 | ||
| 89741-52262 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING |
1 | ||
| 89741-52251 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89740-52051 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89741-52252 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-52030 |
KSP90..JPP..5D..SOL;ZSP90..JPP..LHD..5D..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-52040 |
KSP90..JPP..5D..SOL;ZSP90..JPP..LHD..5D..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-52010 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89747-48020 |
KSP90..JPP..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-52081 |
KSP90..JPP..SOL WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52081 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52111 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52112 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52112 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89990-52111 |
KSP90..JPP..RHD..SOL POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,RH |
1 | ||
| 89991-30050 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LH |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,RH |
1 | ||
| 89991-30050 |
KSP90..JPP..SOL;ZSP90..JPP..LHD WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,LH |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-52020 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,NO.2 |
1 | ||
| 89992-52010 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,NO.1 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-52020 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,NO.2 |
1 | ||
| 89992-52010 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM,NO.1 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-52010 |
KSP90..JPP..SOL;ZSP90..JPP..LHD..5F WIRELESS DOOR LOCK-SMART ENTRY & START SYSTEM |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-40202 | ||||
| 90159-50322 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
