KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0508- )JPP..RHD

Click highlighted areas on diagram

AIR DUCT

diagram 55082E 55840C 55843A 55844 55871A 55950G 8714 87201 87211 87211A 9011906942 9356855014 9356855014
Part # Description Qty Price
55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2
55082-52010

KSP90,ZSP90..JPP..RHD

 1
55840C - DUCT ASSY, HEATER TO REGISTER, NO.6
55840-52020

KSP90,ZSP90..JPP..RHD..5F

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-52180

KSP90,ZSP90..JPP..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55843-52170

KSP90,ZSP90..JPP..5F

 1
55871A - SEAL, AIR DUCT, NO.1
55871-52040

KSP90,ZSP90..JPP..5F

 2
55950G - NOZZLE ASSY, DEFROSTER
55950-52120

KSP90,ZSP90..JPP..5F

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-52020

KSP90,ZSP90..JPP..RHD..5F

 1
87211 - DUCT, AIR, NO.1
87211-52010

KSP90,ZSP90..JPP..RHD

 1
87211A - DUCT, AIR, NO.2
87211-52020

KSP90,ZSP90..JPP..RHD

 1
Common parts
90119-06942
93568-55014
Linked diagrams
8714

ILLUST NO. 3 OF 3(0508- )JPP

Click highlighted areas on diagram

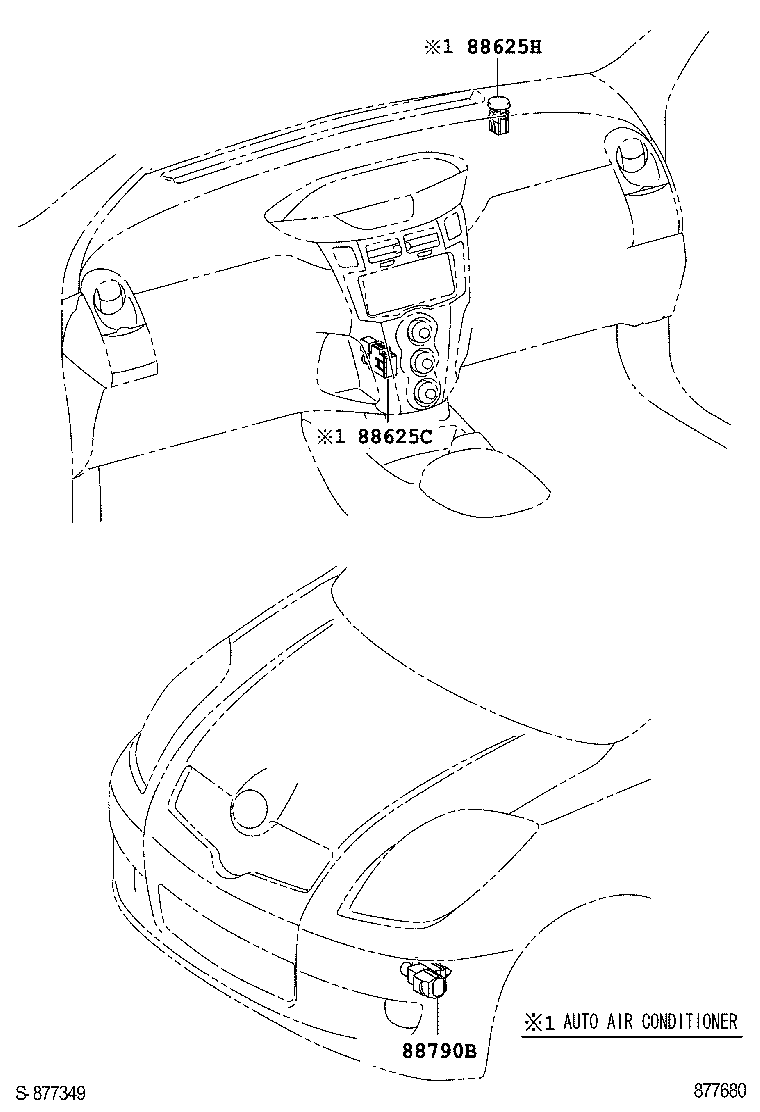

SENSOR

diagram 88625C 88625H 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

KSP90,ZSP90..JPP..5F

 1

ILLUST NO. 1 OF 3(0508- )JPP

Click highlighted areas on diagram

CONTROL PANEL---MANUAL

diagram 5501 55901A 55901D 55902E 55902G 55903A 55903B 55906A 55908A 55909A
Part # Description Qty Price
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90010-01113

KSP90..JPP

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-52100

KSP90..JPP..STD

 1
55901-52090

KSP90..JPP..STD

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-52010

KSP90..JPP

 1
55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2
90010-01113

KSP90..JPP

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-52010

KSP90..JPP

 1
55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3
90010-01113

KSP90..JPP

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52132

KSP90,ZSP90..JPP

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52130

KSP90,ZSP90..JPP..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52120

KSP90,ZSP90..JPP

 1
Linked diagrams
5501
