Toyota Yaris (jpp) KSP90 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
YARIS (JPP)
KSP90R-AGMRKW (2005)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008

Engine 1KRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0508- )JPP..RHD

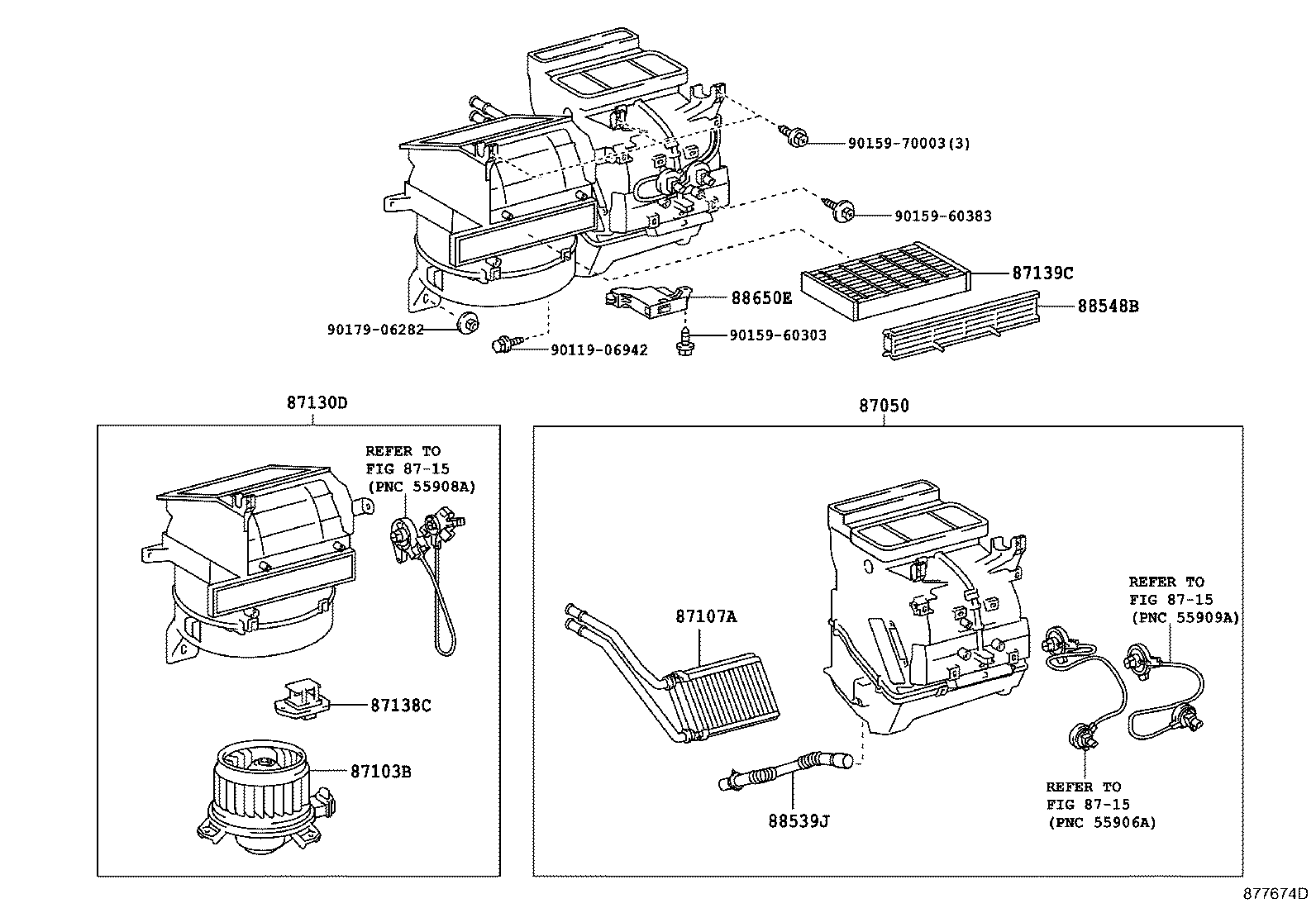

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52012	KSP90..JPP..RHD..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2008	1
87050-52051	KSP90..JPP..RHD..STD	08/2005 - 08/2008	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52120	KSP90,ZSP90..JPP..RHD	08/2005 - 08/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060	KSP90,ZSP90..JPP	08/2005 - 09/2008	1
87130D - BLOWER ASSY
87130-52030	KSP90..JPP..RHD..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 01/2007	1
87130-52110	KSP90..JPP..RHD..STD	08/2005 - 01/2007	1
87130-52031	KSP90..JPP..RHD..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	02/2007 - 07/2008	1
87130-52111	KSP90..JPP..RHD..STD	02/2007 - 07/2008	1
87138C - RESISTOR, BLOWER
87138-52030	KSP90,ZSP90..JPP	08/2005 - 08/2008	1
88539J - HOSE, DRAIN COOLER
88539-52020	KSP90,ZSP90..JPP..5F	08/2005 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52040	KSP90,ZSP90..JPP..5F	08/2005 - 12/2999	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52291	KSP90..JPP..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2008	1
88650-52291	KSP90..JPP..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2008	1
Common parts
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

(0508- )JPP..RHD

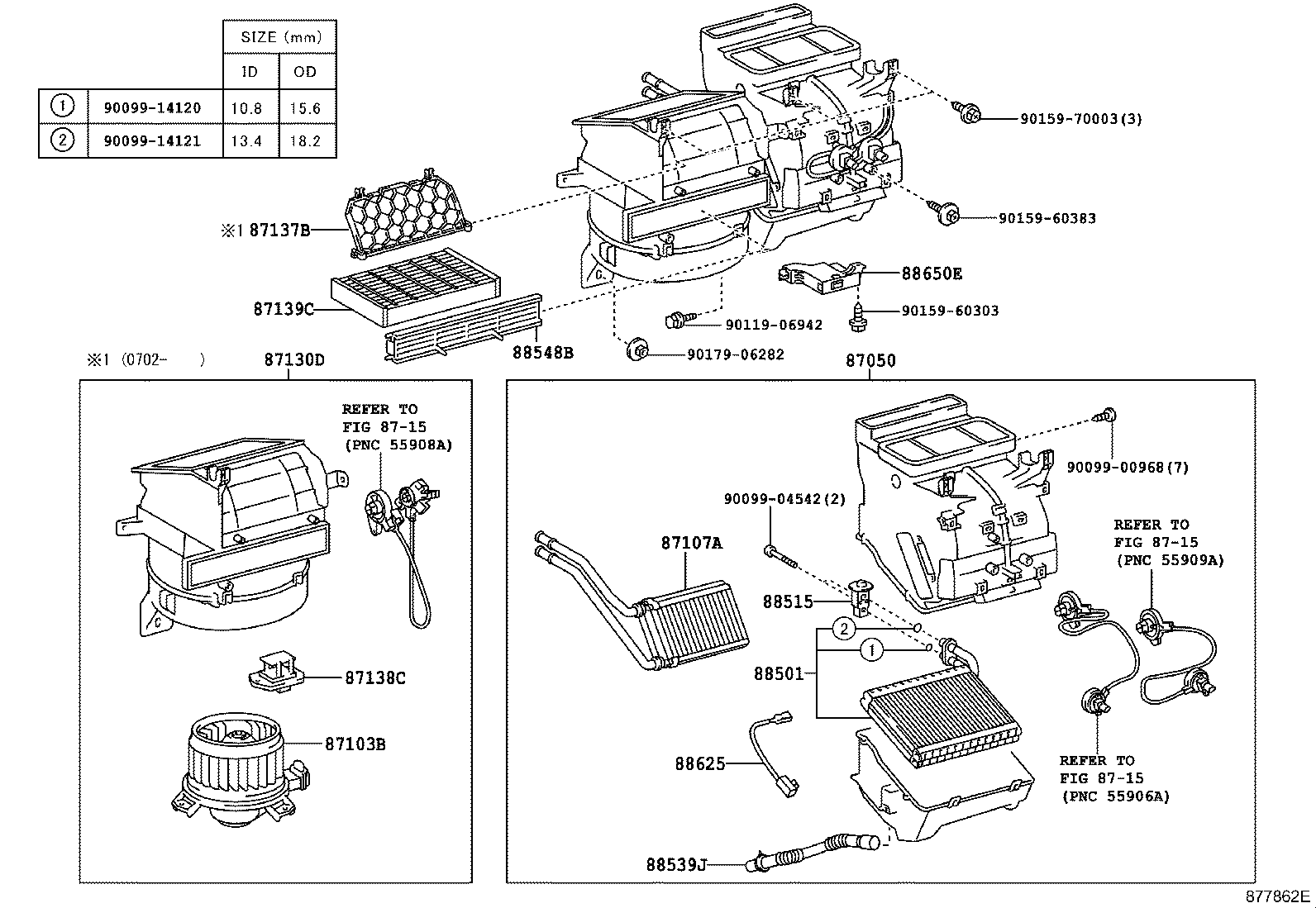

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52012	KSP90..JPP..RHD..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2008	1
87050-52051	KSP90..JPP..RHD..STD	08/2005 - 08/2008	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52120	KSP90,ZSP90..JPP..RHD	08/2005 - 08/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060	KSP90,ZSP90..JPP	08/2005 - 09/2008	1
87130D - BLOWER ASSY
87130-52030	KSP90..JPP..RHD..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 01/2007	1
87130-52110	KSP90..JPP..RHD..STD	08/2005 - 01/2007	1
87130-52031	KSP90..JPP..RHD..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	02/2007 - 07/2008	1
87130-52111	KSP90..JPP..RHD..STD	02/2007 - 07/2008	1
87137B - COVER, HEATER BLOWER
87137-52010	KSP90,ZSP90..JPP..5F	02/2007 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-52030	KSP90,ZSP90..JPP	08/2005 - 08/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52090	KSP90..JPP..RHD..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 05/2008	1
88501-52091	KSP90..JPP..RHD..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	06/2008 - 08/2008	1
88515 - VALVE, COOLER EXPANSION
88515-26070	KSP90..JPP..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2008	1
88539J - HOSE, DRAIN COOLER
88539-52020	KSP90,ZSP90..JPP..5F	08/2005 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52040	KSP90,ZSP90..JPP..5F	08/2005 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	KSP90..JPP..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2008	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52291	KSP90..JPP..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2008	1
88650-52291	KSP90..JPP..STD AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2008	1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

KSP90R-AGMRKW (2005)

(0508- )JPP..RHD

(0508- )JPP..RHD
