KSP90R-AGMRKW (2005)
Toyota Yaris (Jpp)
(0508- )KSP90..JPP ; (0508- )ZSP90..JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-52261 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52252 |
KSP90..JPP..RHD..STD SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52251 |
KSP90..JPP..STD WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52250 |
KSP90..JPP..RHD..STD SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52250 |
KSP90..JPP..STD WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52251 |
KSP90..JPP..RHD..STD SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52262 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52252 |
KSP90..JPP..STD WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52260 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
(0508- )KSP90..JPP..RHD
W(DOUBLE LOCKING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52010 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH,LOWER |
1 | ||
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52010 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH,UPPER |
1 | ||
| 82861-52020 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH,LOWER |
1 | ||
| 85970B - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-52020 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89300 - BOX ASSY, ECU AGGREGATION | ||||
| 89300-52030 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-52261 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52252 |
KSP90..JPP..RHD..STD SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52251 |
KSP90..JPP..STD WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52250 |
KSP90..JPP..RHD..STD SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52250 |
KSP90..JPP..STD WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52251 |
KSP90..JPP..RHD..STD SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52262 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52252 |
KSP90..JPP..STD WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-52260 |
KSP90..JPP..RHD..STD POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50322 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||

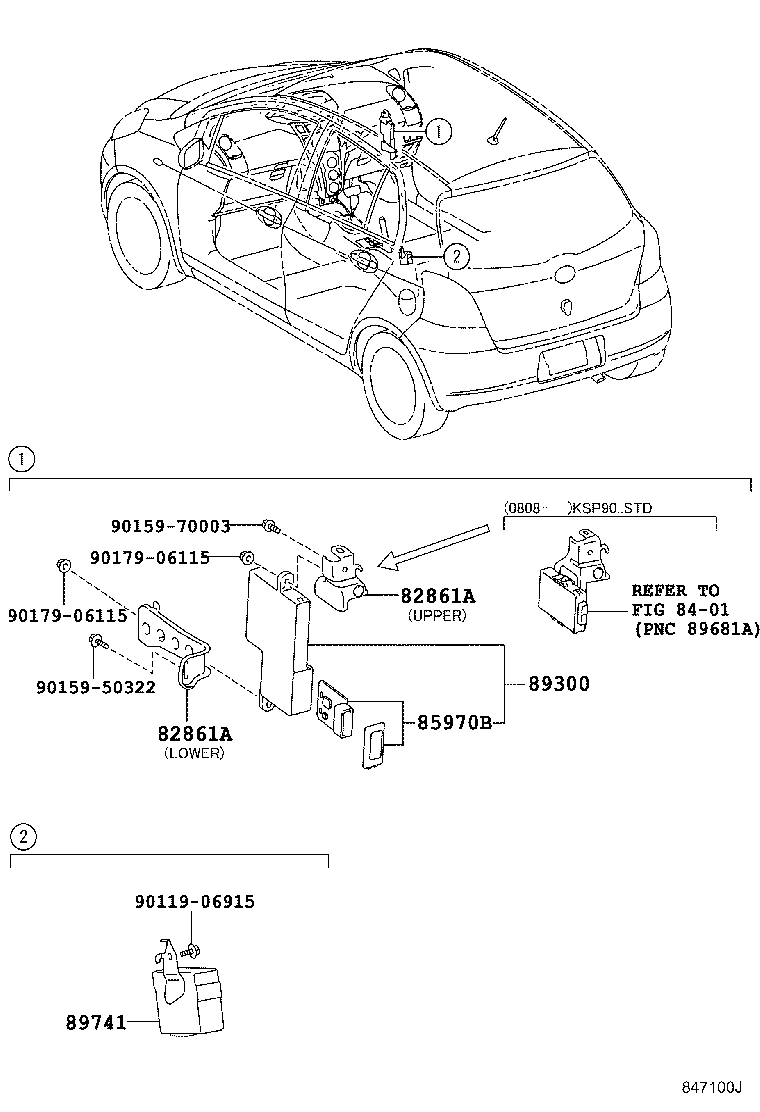

| Linked diagrams | ||||
| 8401 | ||||
