KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )KSP90..JPP..RHD

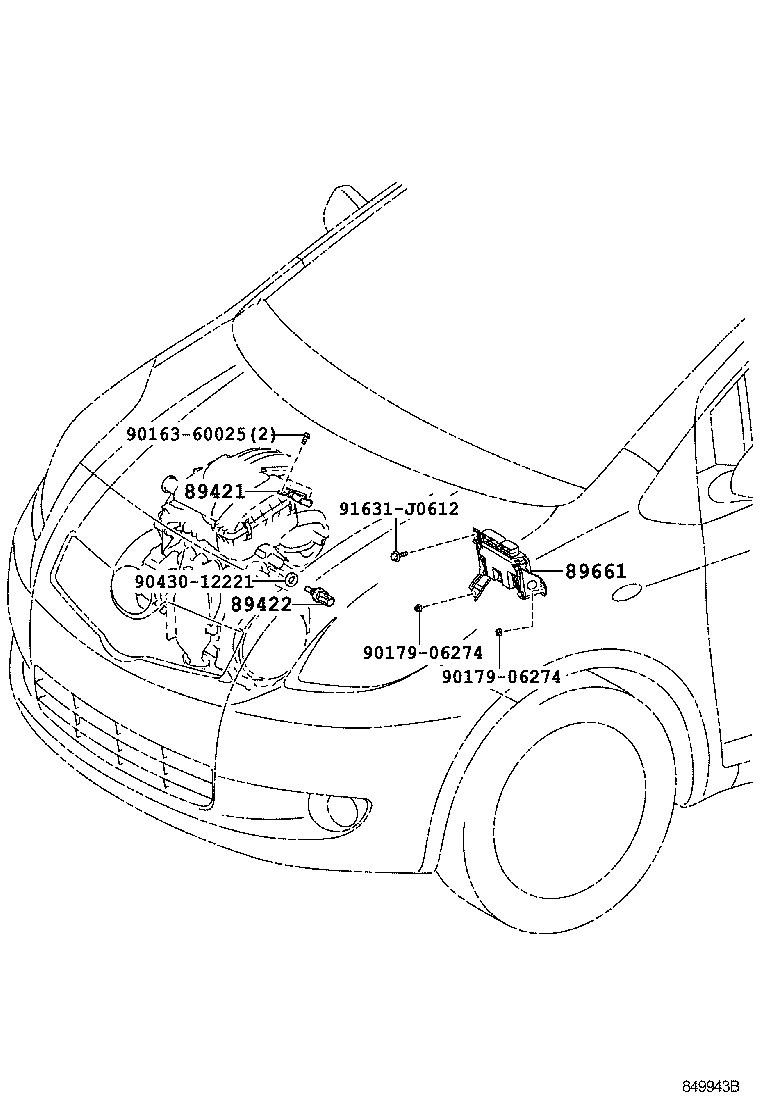

Click highlighted areas on diagram

diagram 89421 89422 89661 9016360025 9017906274 9017906274 9043012221 91631J0612
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-52010

KSP90..JPP

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KSP90,ZSP90..JPP..5F

 1
89661 - COMPUTER, ENGINE CONTROL
89660-0D400

KSP90..JPP..RHD

 1
89660-0D730

KSP90..JPP..RHD

EXHAUST EMISSION CONTROL-EURO4 WITHOUT(ON BOARD DIAGNOSIS)

 1
Common parts
90163-60025
90179-06274
90430-12221
91631-J0612
