KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )JPP

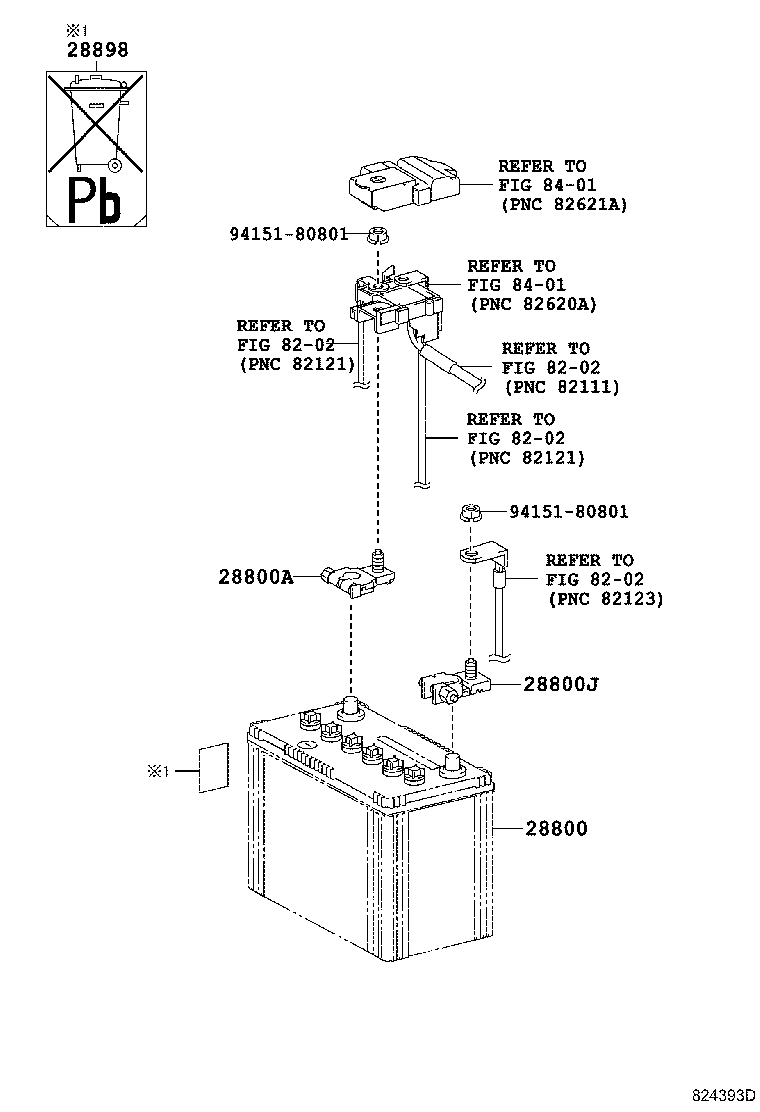

Click highlighted areas on diagram

diagram 28800 28800A 28800J 28898 8202 8202 8202 8202 8401 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-74261

1KRFE,2ZRFE..KSP90,ZSP90..JPP

46B24L(S),FURUKAWA

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1KRFE,2ZRFE..KSP90,ZSP90..JPP..5F

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1KRFE,2ZRFE..KSP90,ZSP90..JPP..5F

 1
28898 - PLATE, BATTERY
28898-46020

1KRFE,2ZRFE..KSP90,ZSP90..JPP..5F

 1
Common parts
94151-80801
Linked diagrams
8202
8401
