KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

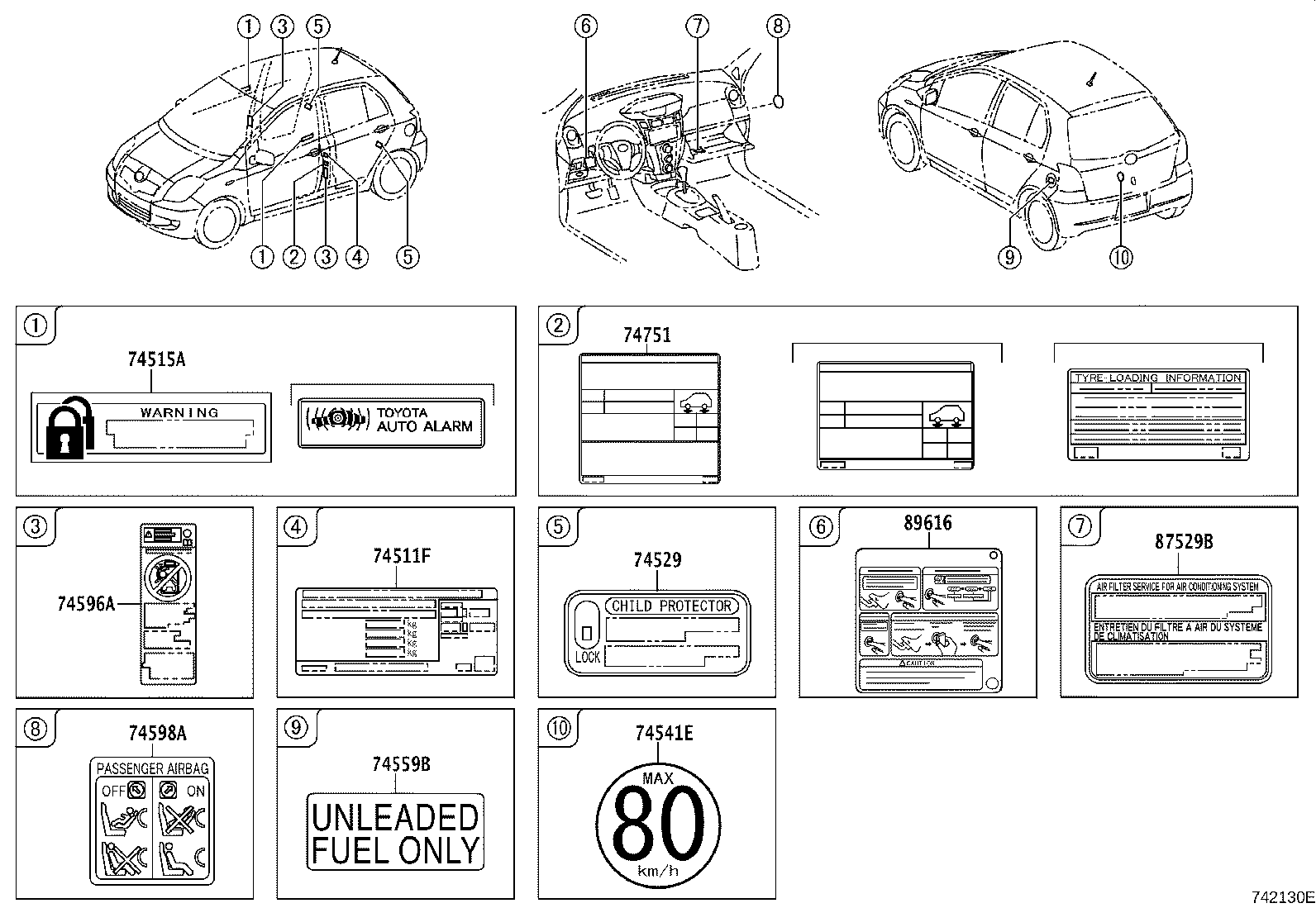

ILLUST NO. 2 OF 2(0508- )JPP

Click highlighted areas on diagram

diagram 74511F 74515A 74529 74541E 74559B 74596A 74598A 74751 87529B 89616
Part # Description Qty Price
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-48010

KSP90..JPP

*111

 1
74511-48020

KSP90,ZSP90..JPP

*111,REGULAT.COMPL.LBL&NAME PL-EUROPE(W/O WVTA)

 1
74515A - PLATE, THEFT WARNING
74515-52010

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-20020

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC

 1
42668-20020

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
42668-20020

KSP90,ZSP90..JPP..5F

 1
74559B - LABEL, FUEL INFORMATION
74559-14050

KSP90,ZSP90..JPP..5F

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12020

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 2
74596-12020

KSP90,ZSP90..JPP..5F

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-52640

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
42661-52510

KSP90..JPP..STD

TIRE & DISK WHEEL-165/70R14 5J BLACK

 1
42661-52570

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK

 1
42661-52520

KSP90..JPP

 1
42661-52530

KSP90..JPP

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
42661-52640

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC

 1

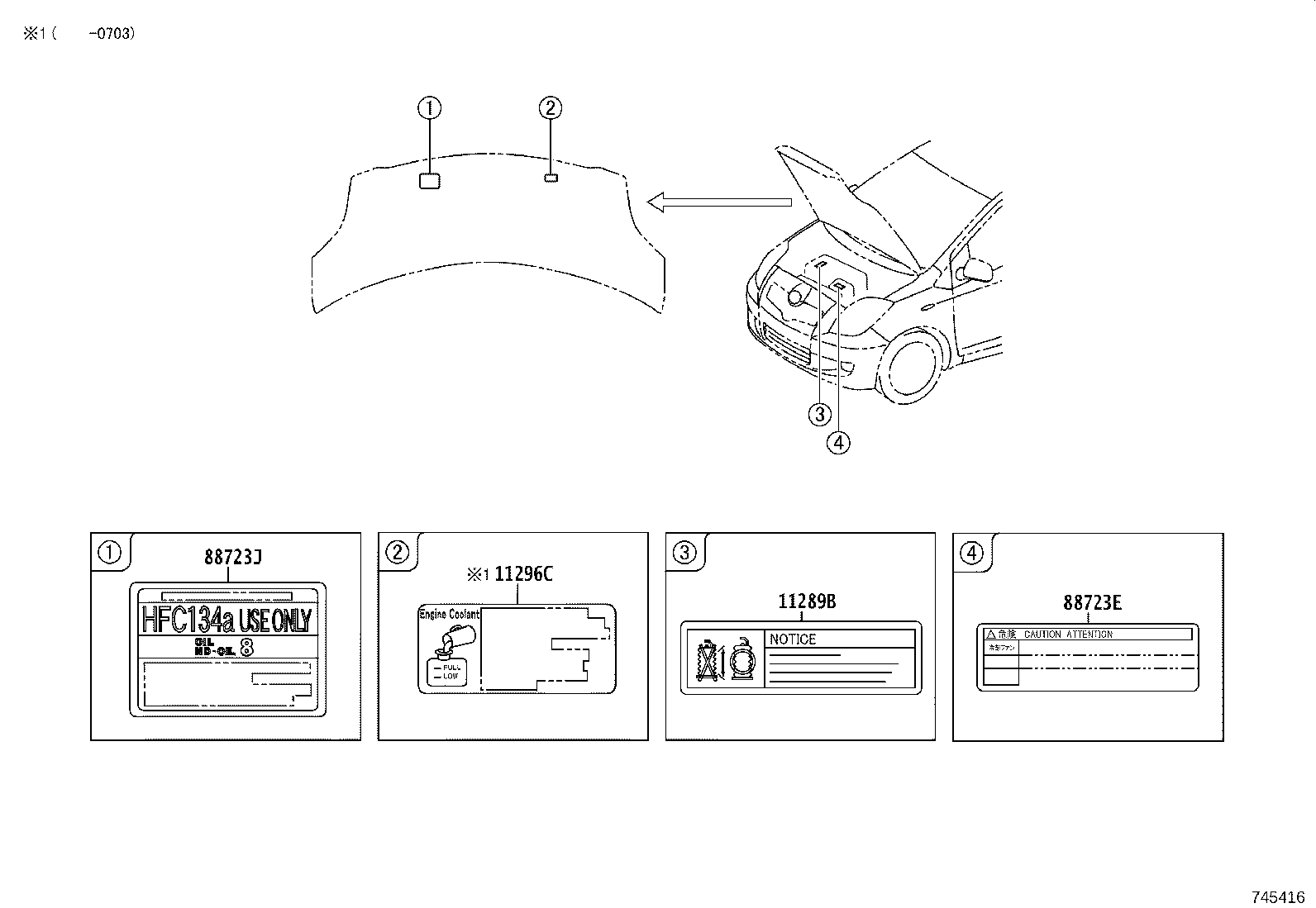

ILLUST NO. 1 OF 2(0508- )JPP

Click highlighted areas on diagram

diagram 11289B 11296C 88723E 88723J
Part # Description Qty Price
11289B - LABEL, SPARK PLUG NOTICE
11289-40010

1KRFE..KSP90..JPP

(J)

 1
11289-0Q010

1KRFE..KSP90..JPP

(L)

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

1KRFE,2ZRFE..KSP90,ZSP90..JPP..5F

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-20081

KSP90..JPP

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-28220

KSP90..JPP..STD

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
