KSP90R-AGMRKW (2005)
Toyota Yaris (Jpp)
ILLUST NO. 1 OF 2(0508- )JPP
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-52020B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) GRAY,TRIM1# |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-52020B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52310B0 |
KSP90..JPP..STD GRAY,TRIM1# |
1 | ||
| 74231-52300B0 |
KSP90..JPP..RHD..STD POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE),GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52220B0 |
KSP90..JPP..RHD..STD POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE),GRAY,TRIM1# |
1 | ||
| 74232-52230B0 |
KSP90..JPP..STD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||

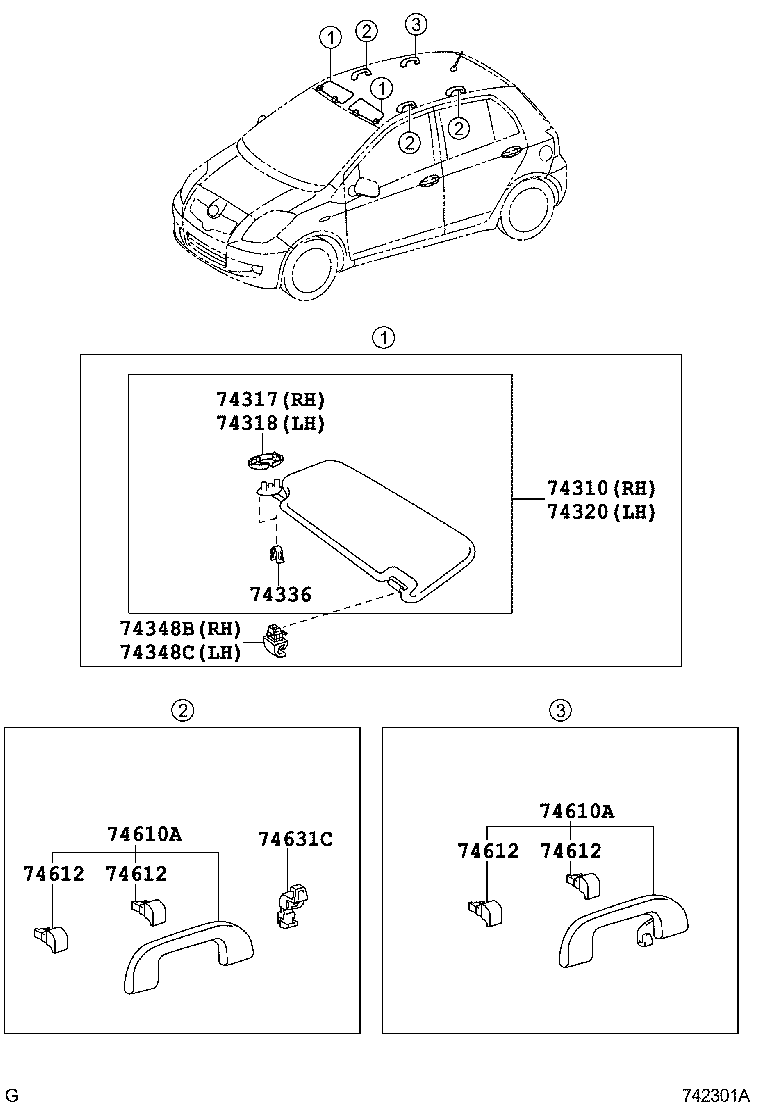

ILLUST NO. 2 OF 2(0508- )JPP
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52500B0 |
KSP90..JPP..RHD..STD SUN VISOR-D+P MIRROR (D+P:W/COVER),GRAY,TRIM1# |
1 | ||
| 74310-52510B0 |
KSP90..JPP..RHD..STD GRAY,TRIM1# |
1 | ||
| 74310-52511B0 |
KSP90..JPP..RHD..STD GRAY,TRIM1# |
1 | ||
| 74310-52501B0 |
KSP90..JPP..RHD..STD SUN VISOR-D+P MIRROR (D+P:W/COVER),GRAY,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010B0 |
KSP90,ZSP90..JPP..5F..(STD,TS) GRAY,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020B0 |
KSP90,ZSP90..JPP..5F..(STD,TS) GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52641B0 |
KSP90,ZSP90..JPP..RHD..5F..(STD,TS) GRAY,TRIM1# |
1 | ||
| 74320-52640B0 |
KSP90..JPP..RHD..STD GRAY,TRIM1# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-12040B4 |
KSP90,ZSP90..JPP..5F..(STD,TS) GRAY,TRIM1# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-12040B4 |
KSP90,ZSP90..JPP..5F..(STD,TS) GRAY,TRIM1# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B0 |
KSP90..JPP..STD ASSIST GRIP-FR-2,RR-2&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1# |
3 | ||
| 74610-52030B0 |
KSP90..JPP..STD ASSIST GRIP-FR-2,RR-2&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1#,W(COAT HOOK) |
1 | ||
| 74610-52020B0 |
KSP90..JPP..STD GRAY,TRIM1# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B0 |
KSP90..JPP..STD ASSIST GRIP-FR-2,RR-2&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1# |
3 | ||
| 74610-52030B0 |
KSP90..JPP..STD ASSIST GRIP-FR-2,RR-2&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1#,W(COAT HOOK) |
1 | ||
| 74610-52020B0 |
KSP90..JPP..STD GRAY,TRIM1# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B0 |
KSP90..JPP..STD ASSIST GRIP-FR-2,RR-2&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1# |
8 | ||
| 74612-52030B0 |
KSP90..JPP..STD GRAY,TRIM1# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B0 |
KSP90..JPP..STD ASSIST GRIP-FR-2,RR-2&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1# |
8 | ||
| 74612-52030B0 |
KSP90..JPP..STD GRAY,TRIM1# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B0 |
KSP90..JPP..STD ASSIST GRIP-FR-2,RR-2&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1# |
8 | ||
| 74612-52030B0 |
KSP90..JPP..STD GRAY,TRIM1# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B0 |
KSP90..JPP..STD ASSIST GRIP-FR-2,RR-2&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1# |
8 | ||
| 74612-52030B0 |
KSP90..JPP..STD GRAY,TRIM1# |
2 | ||
| 74631C - HOOK, COAT | ||||
| 74631-52060B0 |
KSP90..JPP..STD GRAY,TRIM1# |
1 | ||
