KSP90R-AGMRKW (2005)
Toyota Yaris (Jpp)

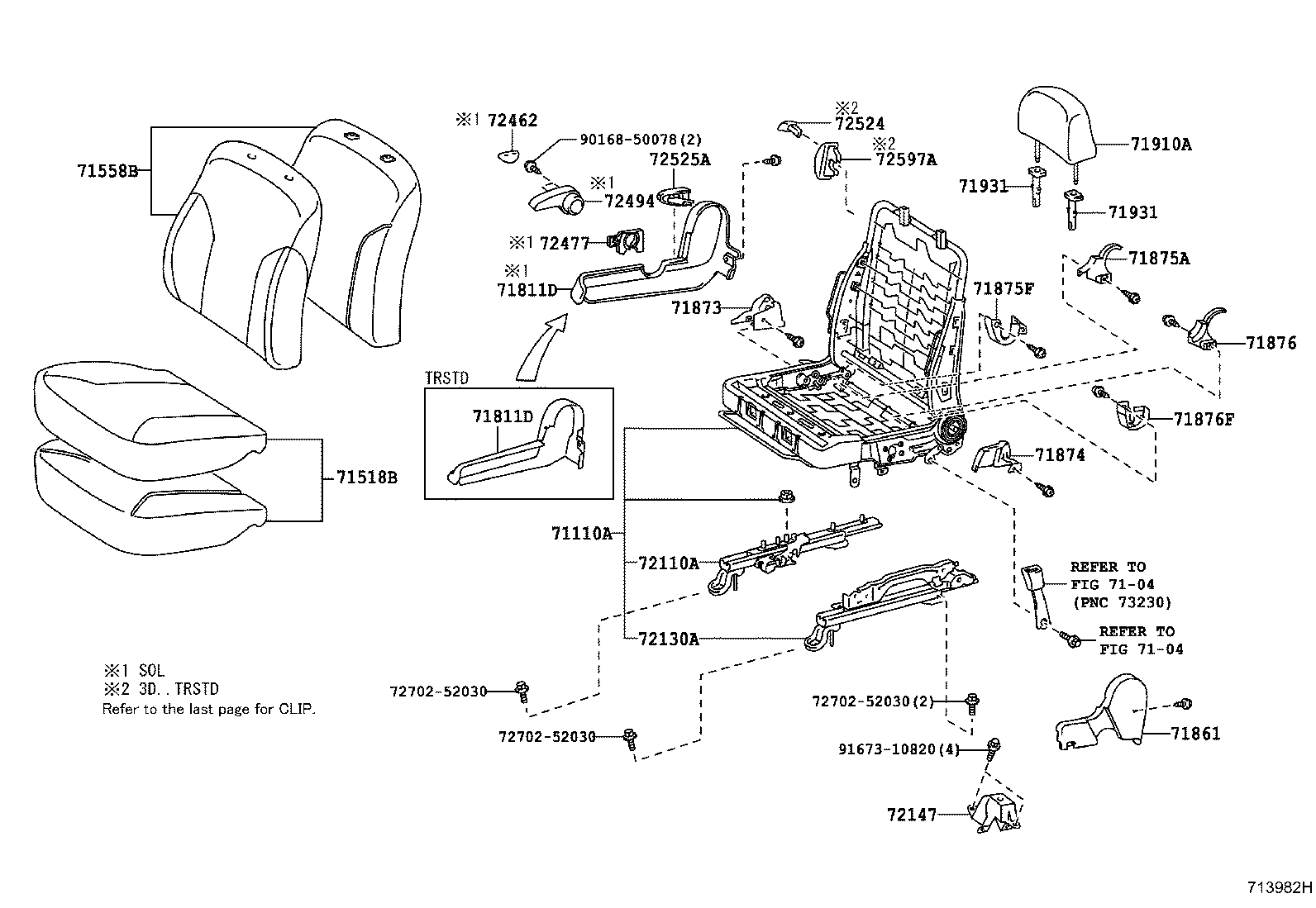

ILLUST NO. 1 OF 2(0508-0808)KSP90..JPP..RHD ; (0611-0809)ZSP90..JPP..RHD
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52270 |
KSP90..JPP..RHD..3D..STD |
1 | ||
| 71110-52620 |
KSP90..JPP..RHD..3D..STD |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52A60C0 |
KSP90..JPP..RHD..STD BLACK,TRIM1# |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52C30C0 |
KSP90..JPP..3D..STD BLACK,TRIM1# |
1 | ||
| 71558-52C10C1 |
KSP90..JPP..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71558-52C10C1 |
KSP90..JPP..3D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52200B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52200B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52190B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52210B0 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52200B0 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-52300B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52280B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52490C0 |
KSP90..JPP..STD BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..3D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..3D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-52020 |
KSP90,ZSP90..JPP..RHD;KSP90,ZSP90..JPP..LHD..5D |
1 | ||
| 72110-52070 |
KSP90,ZSP90..JPP..RHD;KSP90,ZSP90..JPP..LHD..5D |
1 | ||
| 72110-52020 |
KSP90,ZSP90..JPP..RHD;KSP90,ZSP90..JPP..LHD..5D..(STD,TS) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-52100 |
KSP90..JPP..RHD..STD |
1 | ||
| 72130-52100 |
KSP90..JPP..RHD..STD;KSP90,ZSP90..JPP..LHD..5D..(STD,TS) |
1 | ||
| 72130-52250 |
KSP90..JPP..RHD..STD;KSP90,ZSP90..JPP..LHD..5D |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-21010B0 |
KSP90..JPP..3D..STD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-52050B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90168-50078 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

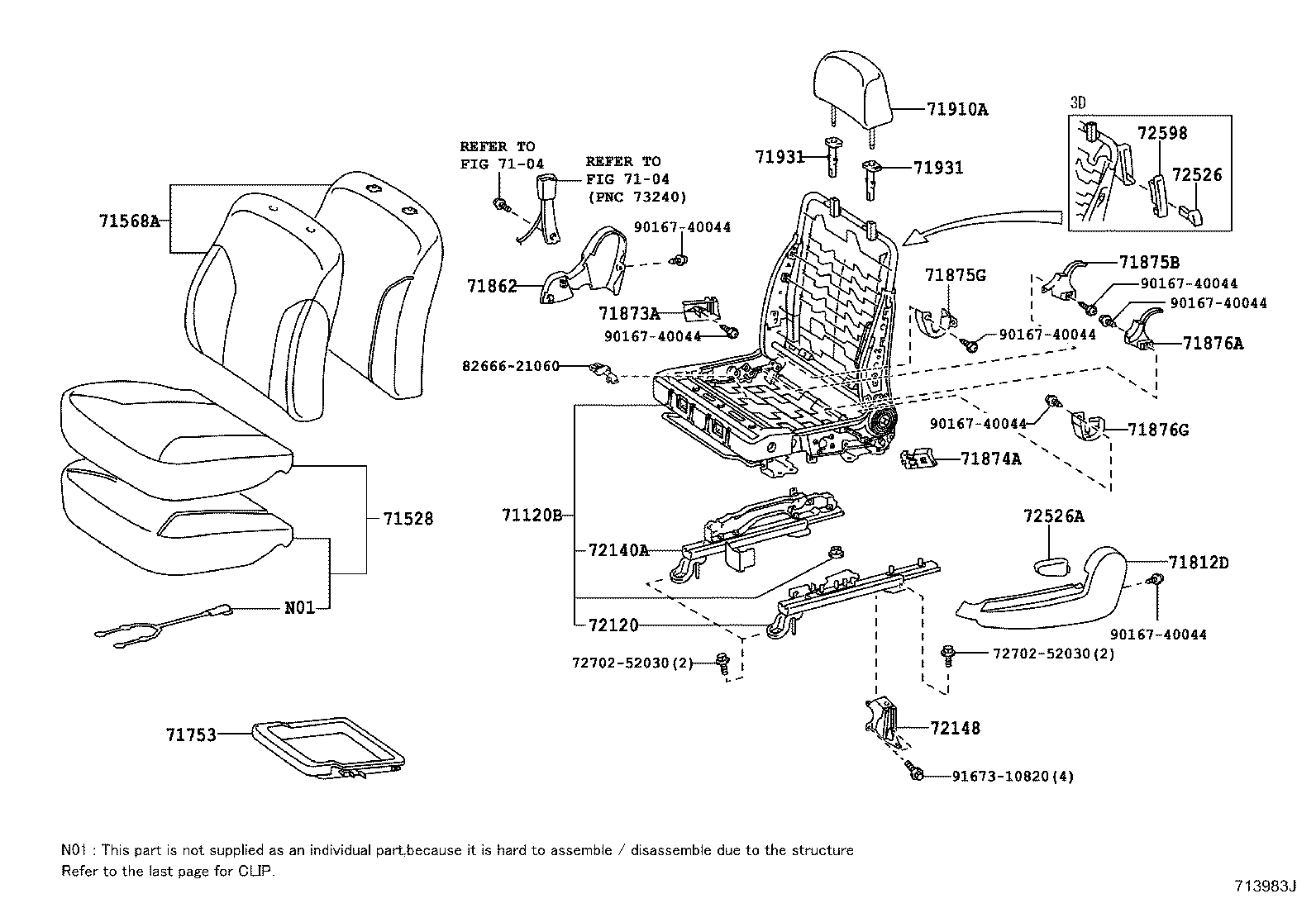

ILLUST NO. 2 OF 2(0508-0808)KSP90..JPP..RHD ; (0611-0809)ZSP90..JPP..RHD
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52230 |
KSP90..JPP..RHD..3D |
1 | ||
| 71120-52750 |
KSP90..JPP..RHD..3D |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52E80C0 |
KSP90..JPP..RHD..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71528-52E90C0 |
KSP90..JPP..RHD..3D..STD BLACK,TRIM1# |
1 | ||
| 71528-52E80C0 |
KSP90..JPP..RHD..3D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71528-52E80C0 |
KSP90..JPP..RHD..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52B30C1 |
KSP90..JPP..RHD..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71568-52B50C0 |
KSP90..JPP..3D..STD BLACK,TRIM1# |
1 | ||
| 71568-52B30C1 |
KSP90..JPP..3D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71568-52B30C1 |
KSP90..JPP..RHD..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52030 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
KSP90,ZSP90..JPP..RHD..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52190B0 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52070B0 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52300B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52280B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52490C0 |
KSP90..JPP..STD BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..3D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..3D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52160 |
KSP90..JPP..RHD..3D |
1 | ||
| 72120-52070 |
KSP90,ZSP90..JPP..RHD..3D |
1 | ||
| 72120-52070 |
KSP90..JPP..RHD..3D |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52270 |
KSP90,ZSP90..JPP..RHD..3D |
1 | ||
| 72140-52160 |
KSP90,ZSP90..JPP..RHD..3D |
1 | ||
| 72140-52160 |
KSP90,ZSP90..JPP..RHD..3D |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-21010B0 |
KSP90..JPP..3D..STD DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72598-52030B0 |
KSP90,ZSP90..JPP..3D..5F..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82666-21060 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

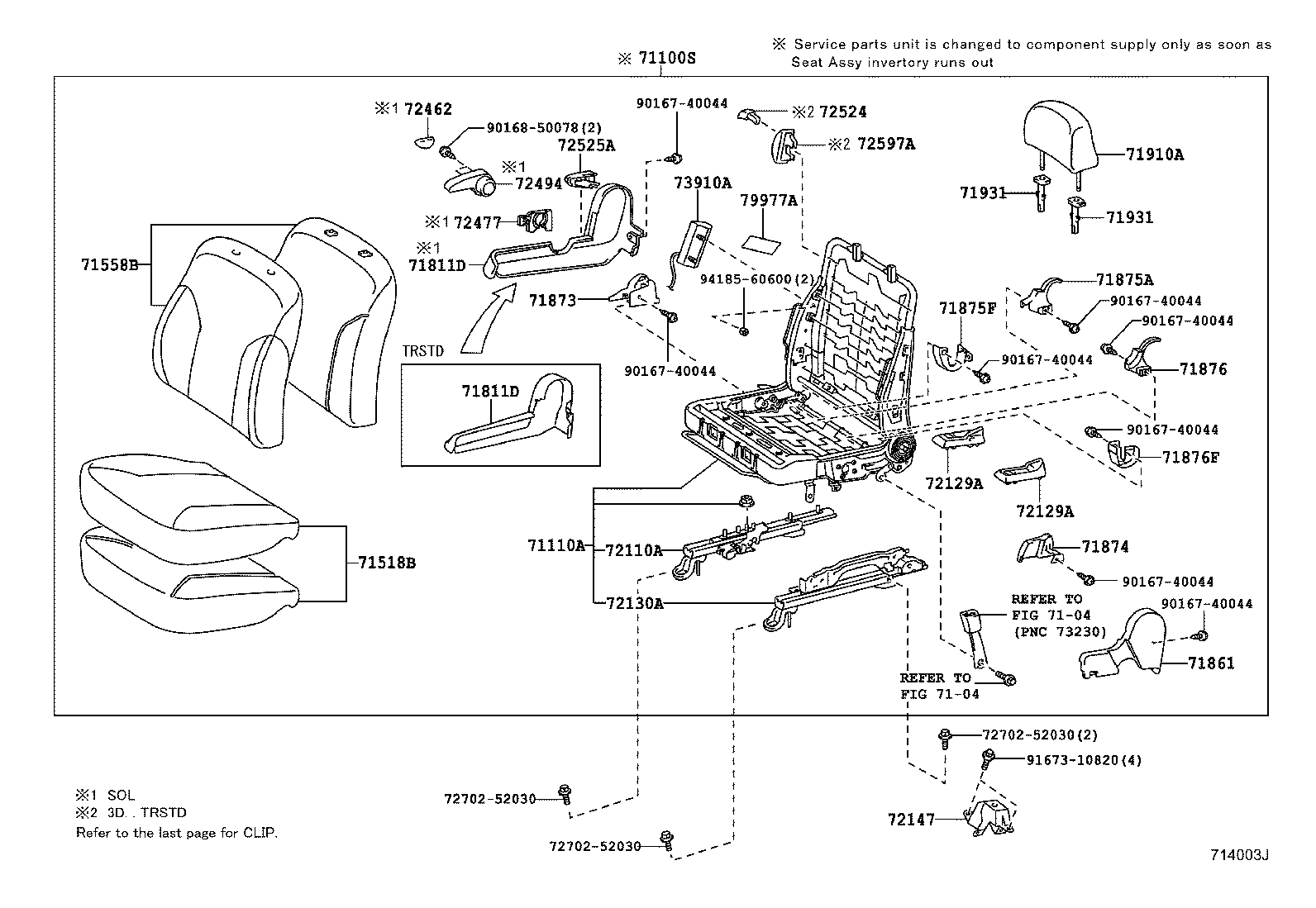

ILLUST NO. 1 OF 2(0508-0808)KSP90..JPP..RHD ; (0611-0809)ZSP90..JPP..RHD
DRIVER SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-52P90B2 |
KSP90..JPP..RHD..3D..STD DK.GRAY,TRIM1# |
1 | ||
| 71100-5CE90B0 |
KSP90..JPP..RHD..3D..STD DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52270 |
KSP90..JPP..RHD..3D..STD |
1 | ||
| 71110-52620 |
KSP90..JPP..RHD..3D..STD |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52A60C0 |
KSP90..JPP..RHD..STD BLACK,TRIM1# |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52C30C0 |
KSP90..JPP..3D..STD BLACK,TRIM1# |
1 | ||
| 71558-52C10C1 |
KSP90..JPP..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71558-52C10C1 |
KSP90..JPP..3D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52200B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52200B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52190B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52210B0 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52200B0 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-52300B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52280B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52490C0 |
KSP90..JPP..STD BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..3D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..3D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-52020 |
KSP90,ZSP90..JPP..RHD;KSP90,ZSP90..JPP..LHD..5D |
1 | ||
| 72110-52070 |
KSP90,ZSP90..JPP..RHD;KSP90,ZSP90..JPP..LHD..5D |
1 | ||
| 72110-52020 |
KSP90,ZSP90..JPP..RHD;KSP90,ZSP90..JPP..LHD..5D..(STD,TS) |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90..JPP |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90..JPP |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-52100 |
KSP90..JPP..RHD..STD |
1 | ||
| 72130-52100 |
KSP90..JPP..RHD..STD;KSP90,ZSP90..JPP..LHD..5D..(STD,TS) |
1 | ||
| 72130-52250 |
KSP90..JPP..RHD..STD;KSP90,ZSP90..JPP..LHD..5D |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-21010B0 |
KSP90..JPP..3D..STD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-52050B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52060 |
KSP90,ZSP90..JPP |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52070 |
KSP90..JPP..RHD..3D..STD RR HEADREST-3PIECES |
2 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

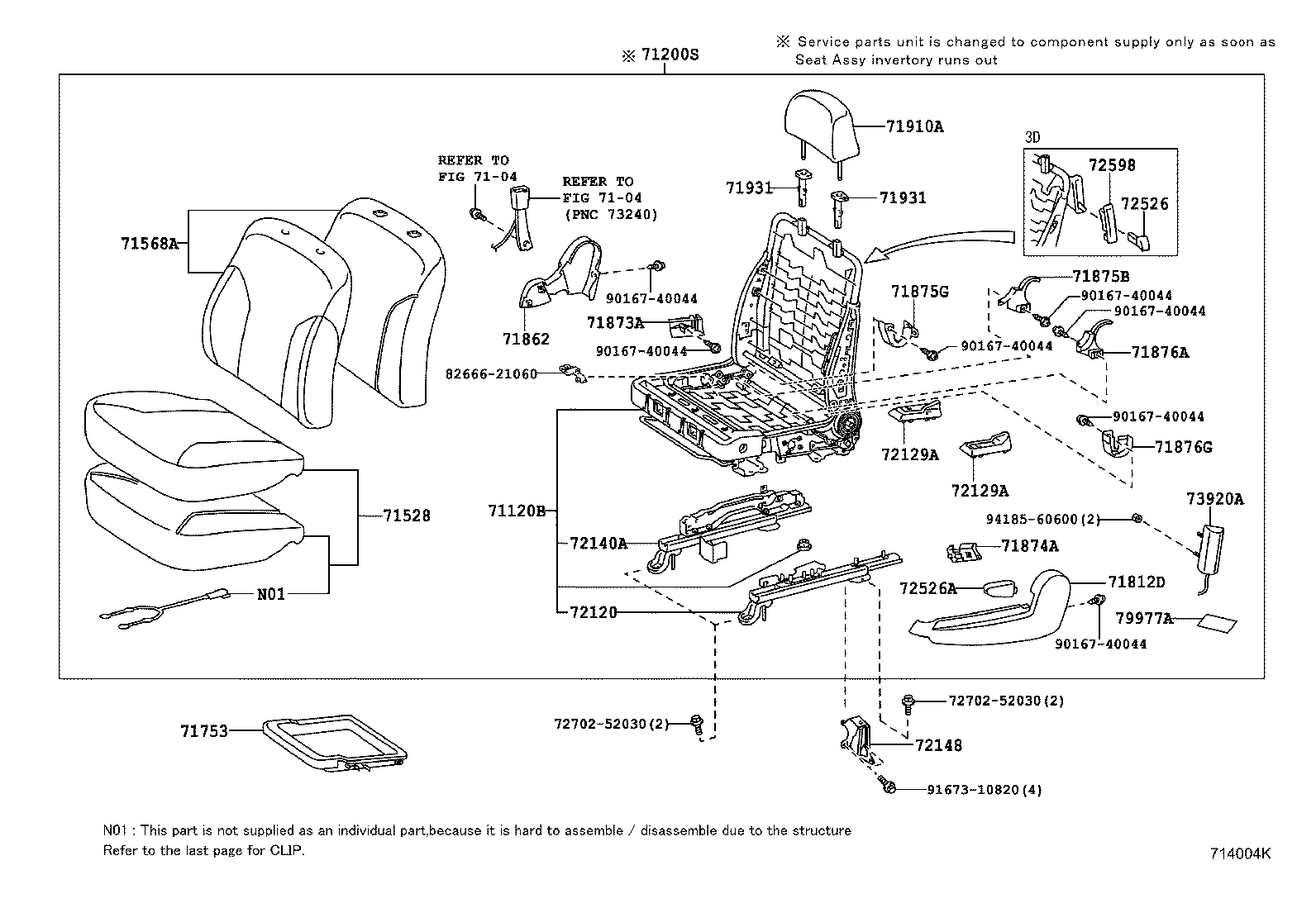

ILLUST NO. 2 OF 2(0508-0808)KSP90..JPP..RHD ; (0611-0809)ZSP90..JPP..RHD
PASSENGER SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52230 |
KSP90..JPP..RHD..3D |
1 | ||
| 71120-52750 |
KSP90..JPP..RHD..3D |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-52F50B4 |
KSP90..JPP..RHD..3D..STD DK.GRAY,TRIM1# |
1 | ||
| 71200-5CE90B0 |
KSP90..JPP..RHD..3D..STD DK.GRAY,TRIM1# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52E80C0 |
KSP90..JPP..RHD..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71528-52E90C0 |
KSP90..JPP..RHD..3D..STD BLACK,TRIM1# |
1 | ||
| 71528-52E80C0 |
KSP90..JPP..RHD..3D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71528-52E80C0 |
KSP90..JPP..RHD..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52B30C1 |
KSP90..JPP..RHD..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71568-52B50C0 |
KSP90..JPP..3D..STD BLACK,TRIM1# |
1 | ||
| 71568-52B30C1 |
KSP90..JPP..3D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71568-52B30C1 |
KSP90..JPP..RHD..3D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52030 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
KSP90,ZSP90..JPP..RHD..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52190B0 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52070B0 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52300B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52280B0 |
KSP90,ZSP90..JPP..3D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52490C0 |
KSP90..JPP..STD BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..3D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..3D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52160 |
KSP90..JPP..RHD..3D |
1 | ||
| 72120-52070 |
KSP90,ZSP90..JPP..RHD..3D |
1 | ||
| 72120-52070 |
KSP90..JPP..RHD..3D |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90..JPP |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90..JPP |
8 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52270 |
KSP90,ZSP90..JPP..RHD..3D |
1 | ||
| 72140-52160 |
KSP90,ZSP90..JPP..RHD..3D |
1 | ||
| 72140-52160 |
KSP90,ZSP90..JPP..RHD..3D |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-21010B0 |
KSP90..JPP..3D..STD DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72598-52030B0 |
KSP90,ZSP90..JPP..3D..5F..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-52060 |
KSP90,ZSP90..JPP |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52070 |
KSP90..JPP..RHD..3D..STD RR HEADREST-3PIECES |
2 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82666-21060 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0508- )JPP
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
