KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)KSP90..JPP ; (0508-0809)ZSP90..JPP

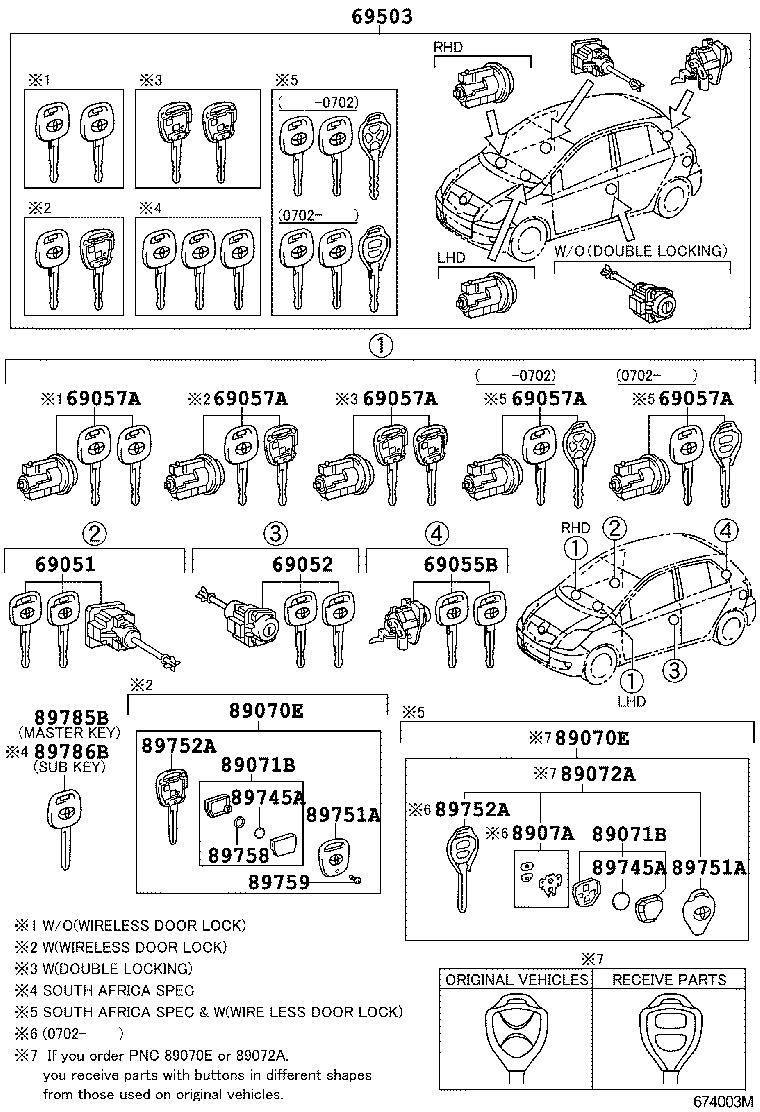

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69051 69052 69055B 69057A 69057A 69057A 69057A 69057A 69503 89070E 89070E 89071B 89071B 89072A 8907A 89745A 89745A 89751A 89751A 89752A 89752A 89758 89759 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-52400

KSP90..JPP;ZSP90..JPP..LHD..5F

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-52330

KSP90..JPP;ZSP90..JPP..LHD..5F

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-52450

KSP90..JPP;ZSP90..JPP..LHD..5F

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-52571

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52550

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-12730

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057-52570

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52510

KSP90..JPP..STD

 1
69057-52551

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-52520

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-52571

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52550

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-12730

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057-52570

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52510

KSP90..JPP..STD

 1
69057-52551

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-52520

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-52571

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52550

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-12730

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057-52570

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52510

KSP90..JPP..STD

 1
69057-52551

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-52520

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-52571

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52550

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-12730

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057-52570

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52510

KSP90..JPP..STD

 1
69057-52551

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-52520

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-52571

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52550

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-12730

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69057-52570

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69057-52510

KSP90..JPP..STD

 1
69057-52551

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69057-52520

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69503 - CYLINDER SET, LOCK
69005-52B51

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69005-52B60

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69005-52B50

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69005-52A60

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69005-52B61

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69005-52A61

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69005-52A50

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC

 1
69005-5C080

KSP90..JPP..STD

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-52570

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89070-52572

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89070-52571

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89070-52750

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89070-52751

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89070-52752

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-52570

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89070-52572

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89070-52571

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89070-52750

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89070-52751

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89070-52752

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-71010

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89071-71050

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89071-52150

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
89071-71051

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89071-52150

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-71010

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89071-71050

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89071-52150

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
89071-71051

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89071-52150

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-52470

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
8907A - SWITCH SET, TRANSMITTER
8907A-71010

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89745A - BATTERY, TRANSMITTER
89745-71010

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89745-52010

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
89745-52010

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89745A - BATTERY, TRANSMITTER
89745-71010

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89745-52010

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
89745-52010

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89751A - COVER, TRANSMITTER HOUSING
89751-52140

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89751-52112

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
89751-52120

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89751-52110

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89751-52110

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
89751-52112

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89751-52111

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89751-52111

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
89751A - COVER, TRANSMITTER HOUSING
89751-52140

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89751-52112

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
89751-52120

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89751-52110

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89751-52110

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
89751-52112

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89751-52111

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89751-52111

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
89752A - CASE, TRANSMITTER HOUSING
89752-13020

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89752-28050

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89752A - CASE, TRANSMITTER HOUSING
89752-13020

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89752-28050

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89758 - PACKING, DOOR CONTROL TRANSMITTER
89758-52010

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
89758-52010

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89759 - SCREW, DOOR CONTROL TRANSMITTER
89759-41020

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 2
89759-41020

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
89785-60160

KSP90..JPP;ZSP90..JPP..LHD..5F

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

KSP90..JPP..RHD..STD

BLANK KEY,SOUTH AFRICA SPEC

 1

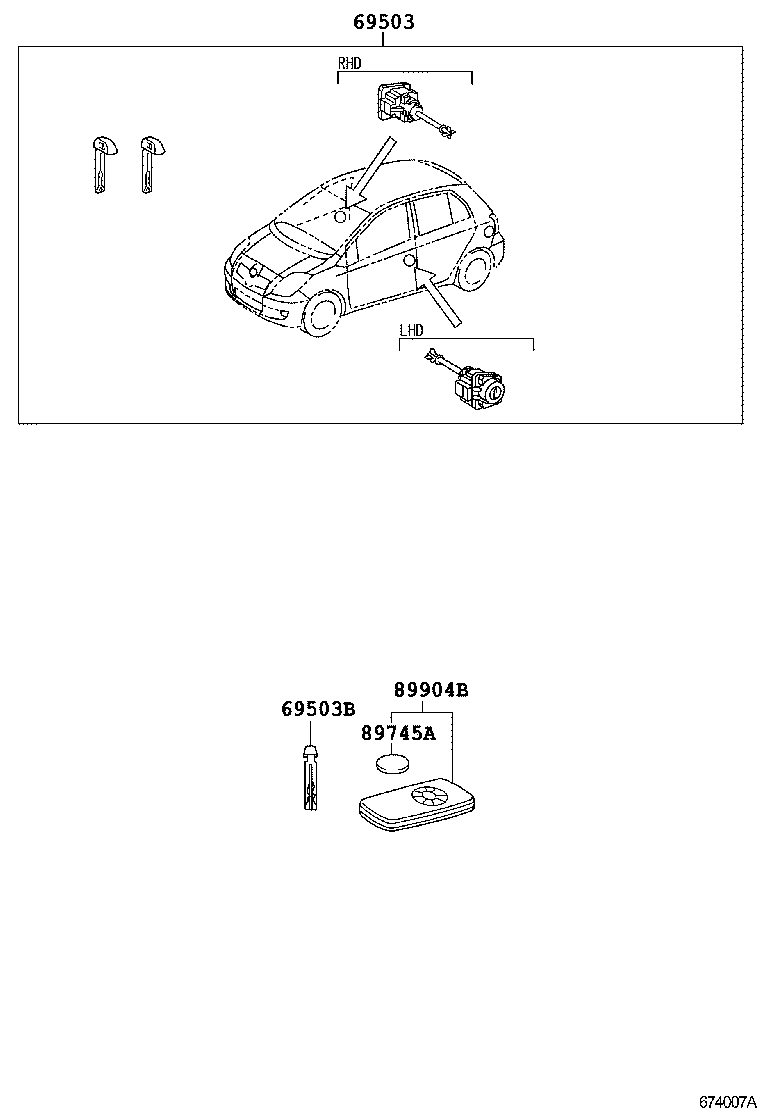

(0508- )JPP

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 69503 69503B 89745A 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-52B51

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69005-52B60

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69005-52B50

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
69005-52A60

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69005-52B61

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
69005-52A61

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
69005-52A50

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC

 1
69005-5C080

KSP90..JPP..STD

 1
89745A - BATTERY, TRANSMITTER
89745-71010

KSP90..JPP..RHD..STD

SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH

 1
89745-52010

KSP90..JPP..RHD..STD

POWER DOOR LOCK-D+P,DOUBLE LOCKING&WIRELESS DOOR LOCK-WITH

 1
89745-52010

KSP90..JPP..STD

WIRELESS DOOR LOCK-WITH

 1
