KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )JPP..6F ; (0508- )KSP90..JPP

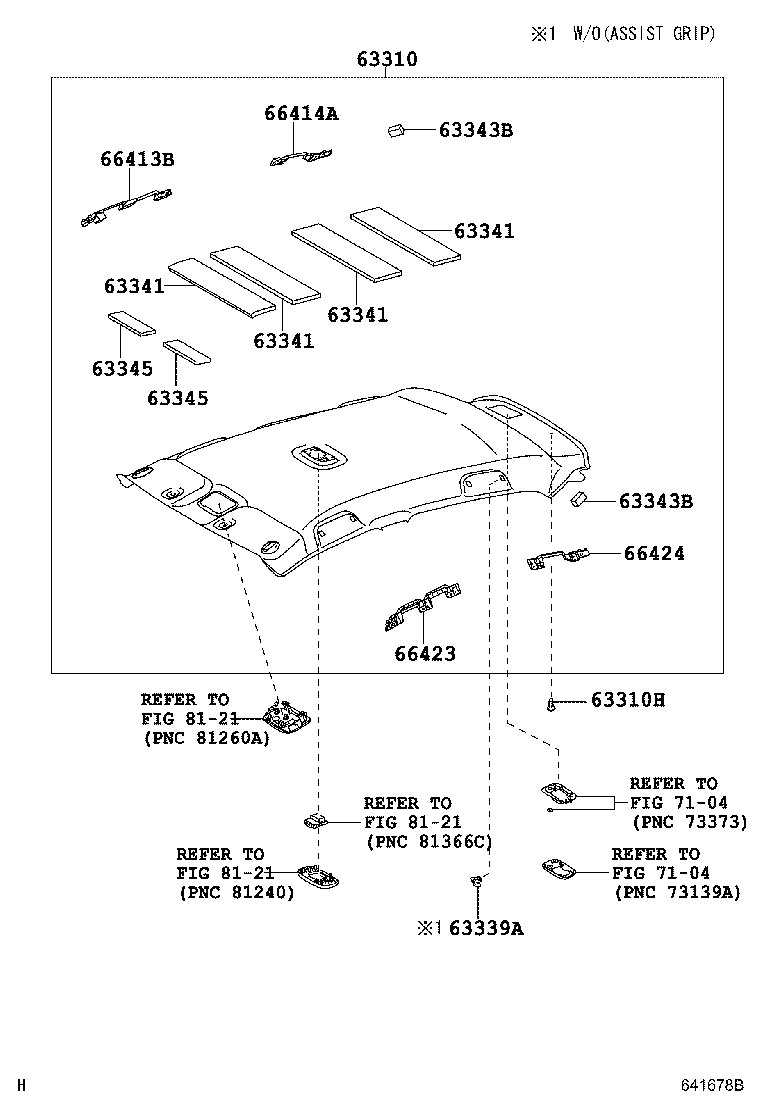

Click highlighted areas on diagram

diagram 63310 63310H 63339A 63341 63341 63341 63341 63343B 63343B 63345 63345 66413B 66414A 66423 66424 7104 7104 8121 8121 8121
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63301-52070B0

KSP90..JPP..3D..STD

GRAY,TRIM1#

 1
63301-52080B0

KSP90..JPP..3D..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B6

KSP90,ZSP90..JPP..(STD,TS)

GRAY,TRIM1#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030B1

KSP90..JPP..STD

GRAY,TRIM1#

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

KSP90,ZSP90..JPP

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

KSP90,ZSP90..JPP

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

KSP90,ZSP90..JPP

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

KSP90,ZSP90..JPP

 4
63343B - PAD, ROOF SILENCER, REAR
63343-52040

KSP90,ZSP90..JPP

 2
63343B - PAD, ROOF SILENCER, REAR
63343-52040

KSP90,ZSP90..JPP

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52030

KSP90,ZSP90..JPP

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52030

KSP90,ZSP90..JPP

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52180

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
66413-52190

KSP90..JPP..3D..STD

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52200

KSP90..JPP..3D..STD

 1
66414-52210

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52170

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
66423-52190

KSP90..JPP..3D..STD

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52190

KSP90..JPP..3D..STD

 1
66424-52200

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
Linked diagrams
7104
8121

(0508- )JPP

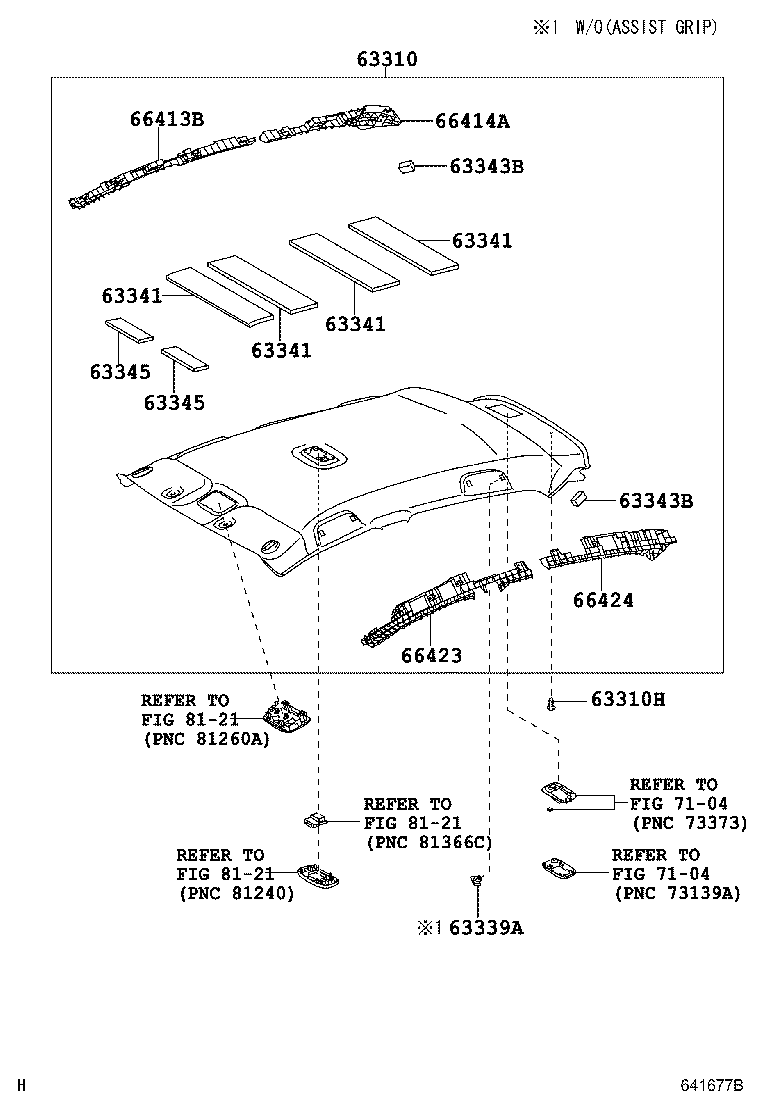

Click highlighted areas on diagram

W(SRS CURTAIIN SHIELD AIR BAG)

diagram 63310 63310H 63339A 63341 63341 63341 63341 63343B 63343B 63345 63345 66413B 66414A 66423 66424 7104 7104 8121 8121 8121
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63301-52070B0

KSP90..JPP..3D..STD

GRAY,TRIM1#

 1
63301-52080B0

KSP90..JPP..3D..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B6

KSP90,ZSP90..JPP..(STD,TS)

GRAY,TRIM1#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030B1

KSP90..JPP..STD

GRAY,TRIM1#

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

KSP90,ZSP90..JPP

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

KSP90,ZSP90..JPP

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

KSP90,ZSP90..JPP

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

KSP90,ZSP90..JPP

 4
63343B - PAD, ROOF SILENCER, REAR
63343-52040

KSP90,ZSP90..JPP

 2
63343B - PAD, ROOF SILENCER, REAR
63343-52040

KSP90,ZSP90..JPP

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52030

KSP90,ZSP90..JPP

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52030

KSP90,ZSP90..JPP

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52180

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
66413-52190

KSP90..JPP..3D..STD

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52200

KSP90..JPP..3D..STD

 1
66414-52210

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52170

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
66423-52190

KSP90..JPP..3D..STD

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52190

KSP90..JPP..3D..STD

 1
66424-52200

KSP90..JPP..STD

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
Linked diagrams
7104
8121
