KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )JPP

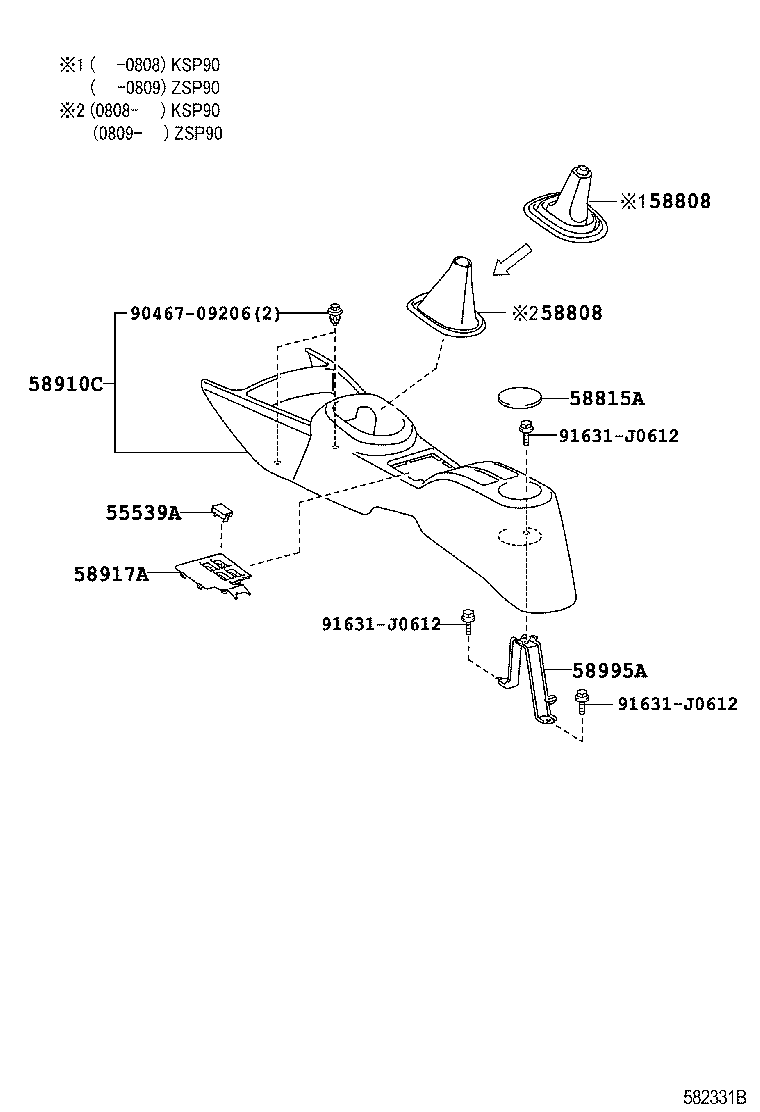

Click highlighted areas on diagram

diagram 55539A 58808 58808 58815A 58910C 58917A 58995A 9046709206 91631J0612 91631J0612 91631J0612
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52060B0

KSP90..JPP..STD

DK.GRAY,TRIM1#

 3
55539-52060B0

KSP90..JPP..STD

POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE),DK.GRAY,TRIM1#

 4
55539-52060B0

KSP90..JPP..STD

POWER DOOR LOCK-WITHOUT,DK.GRAY,TRIM1#

 4
55539-52070B0

KSP90..JPP..STD

POWER DOOR LOCK-WITHOUT,DK.GRAY,TRIM1#

 4
55539-52070B0

KSP90..JPP..STD

POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE),DK.GRAY,TRIM1#

 4
55539-52070B0

KSP90..JPP..STD

DK.GRAY,TRIM1#

 3
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-52060B1

KSP90,ZSP90..JPP..5F..(STD,TS)

DK.GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-52060B1

KSP90,ZSP90..JPP..5F..(STD,TS)

DK.GRAY,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-52050

KSP90,ZSP90..JPP..5F

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-52020B0

KSP90..JPP..STD

DK.GRAY,TRIM1#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52040B0

KSP90,ZSP90..JPP..5F..(STD,TS)

DK.GRAY,TRIM1#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-52010

KSP90,ZSP90..JPP..5F

 1
Common parts
90467-09206
91631-J0612
