KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )KSP90..JPP..RHD

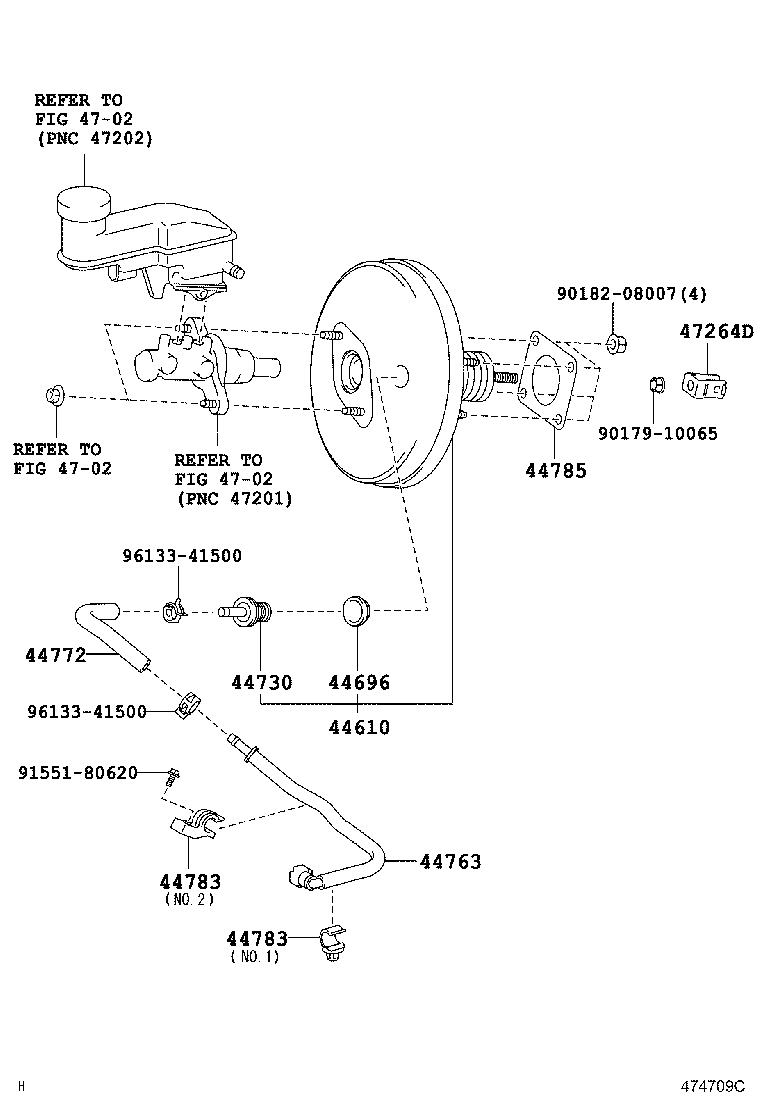

Click highlighted areas on diagram

diagram 44610 44696 44730 44763 44772 44783 44783 44785 4702 4702 4702 47264D 9017910065 9018208007 9155180620 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-52400

KSP90..JPP..RHD

REAR WHEEL BRAKE-DISK(BUILT-IN)&VSC-WITH

 1
44610-52390

KSP90..JPP..RHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
44610-52420

KSP90..JPP..RHD

 1
44610-52420

KSP90..JPP..RHD..STD;KSP90..JPP..RHD..5D..SOL

VSC-WITH

 1
44696 - GROMMET, CHECK VALVE
90480-24015

KSP90,ZSP90..JPP..RHD..5F

 1
90480-24015

KSP90..JPP..RHD..STD;KSP90..JPP..RHD..5D..SOL

VSC-WITH

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030

KSP90..JPP..RHD

 1
44730-28030

KSP90..JPP..RHD..STD;KSP90..JPP..RHD..5D..SOL

VSC-WITH

 1
44763 - TUBE, BOOSTER VACUUM
44763-52040

KSP90..JPP..RHD

 1
44763-52040

KSP90..JPP..RHD..STD;KSP90..JPP..RHD..5D..SOL

VSC-WITH

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-52040

KSP90..JPP..RHD

 1
44772-52040

KSP90..JPP..RHD..STD;KSP90..JPP..RHD..5D..SOL

VSC-WITH

 1
44783 - CLAMP, VACUUM HOSE
44783-70010

KSP90..JPP

NO.1

 1
44783-70010

KSP90..JPP..RHD..STD;KSP90..JPP..RHD..5D..SOL

VSC-WITH,NO.1

 1
44783-70020

KSP90..JPP..RHD

NO.2

 1
44783 - CLAMP, VACUUM HOSE
44783-70010

KSP90..JPP

NO.1

 1
44783-70010

KSP90..JPP..RHD..STD;KSP90..JPP..RHD..5D..SOL

VSC-WITH,NO.1

 1
44783-70020

KSP90..JPP..RHD

NO.2

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

KSP90..JPP..STD

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-12060

KSP90..JPP..RHD..STD;KSP90..JPP..RHD..5D..SOL

VSC-WITH

 1
47264-12060

ZSP90..JPP..5F;KSP90..JPP..RHD

 1
Common parts
90179-10065
90182-08007
91551-80620
96133-41500
Linked diagrams
4702
