KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )JPP..RHD

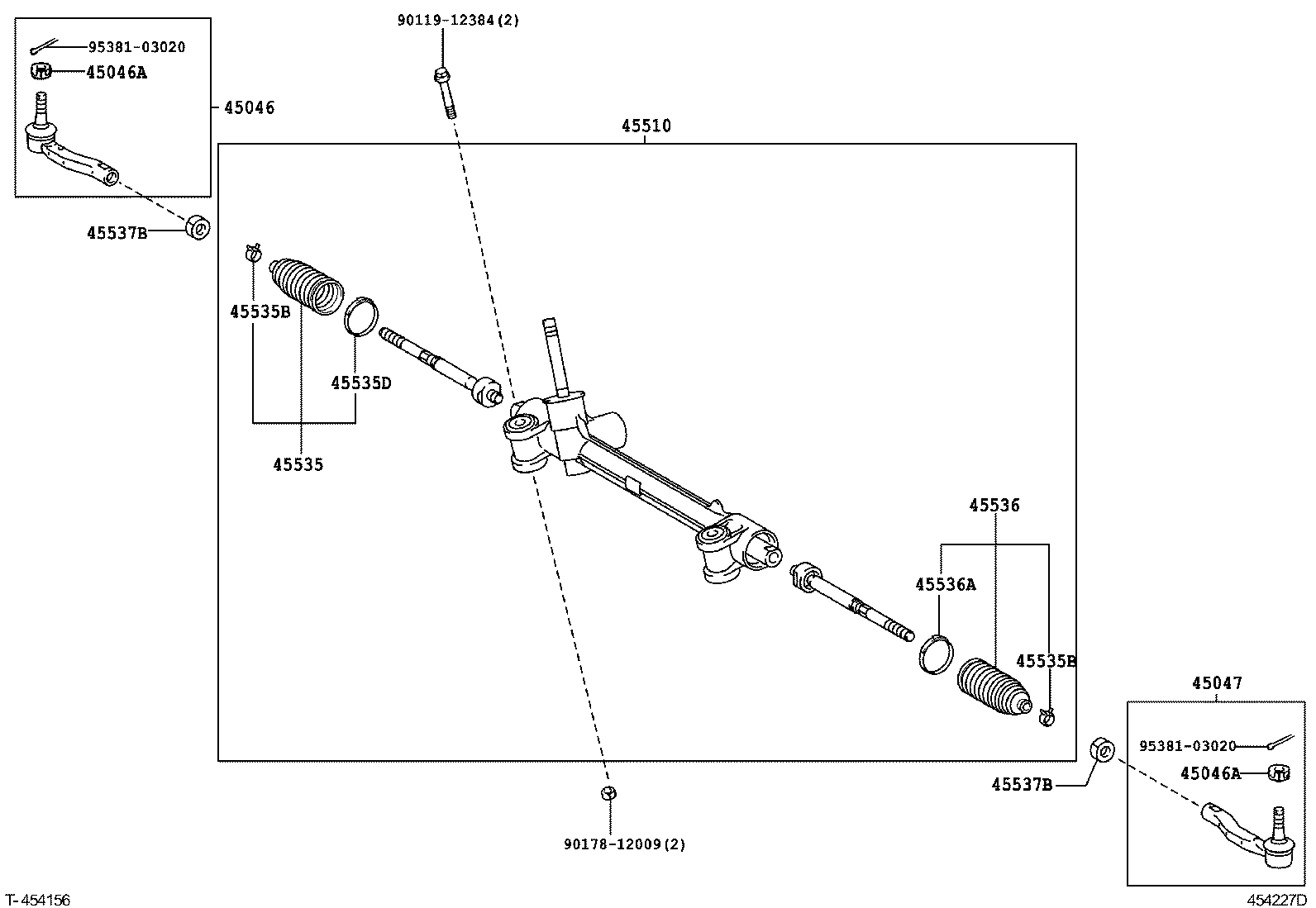

Click highlighted areas on diagram

RHD

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 45537B 45537B 9011912384 9017812009 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-19265

KSP90..JPP..STD

TIRE & DISK WHEEL-165/70R14 5J BLACK

 1
45046-59195

KSP90..JPP

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KSP90,ZSP90..JPP..5F

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KSP90,ZSP90..JPP..5F

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-19115

KSP90..JPP..STD

TIRE & DISK WHEEL-165/70R14 5J BLACK

 1
45047-59135

KSP90..JPP

 1
45510 - GEAR ASSY, STEERING
45510-52040

KSP90..JPP..RHD

 1
45510-52030

KSP90..JPP..RHD..STD

TIRE & DISK WHEEL-165/70R14 5J BLACK

 1
45535 - BOOT, STEERING RACK, NO.1
45535-59015

KSP90,ZSP90..JPP

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

KSP90,ZSP90..JPP

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

KSP90,ZSP90..JPP

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-52010

KSP90,ZSP90..JPP

 1
45536 - BOOT, STEERING RACK, NO.2
45535-59015

KSP90,ZSP90..JPP

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-52010

KSP90,ZSP90..JPP

 1
45537B - NUT, RACK END LOCK
90170-14012

KSP90..JPP..STD

TIRE & DISK WHEEL-165/70R14 5J BLACK

 2
90179-14019

KSP90..JPP

 2
45537B - NUT, RACK END LOCK
90170-14012

KSP90..JPP..STD

TIRE & DISK WHEEL-165/70R14 5J BLACK

 2
90179-14019

KSP90..JPP

 2
Common parts
90119-12384
90178-12009
95381-03020
