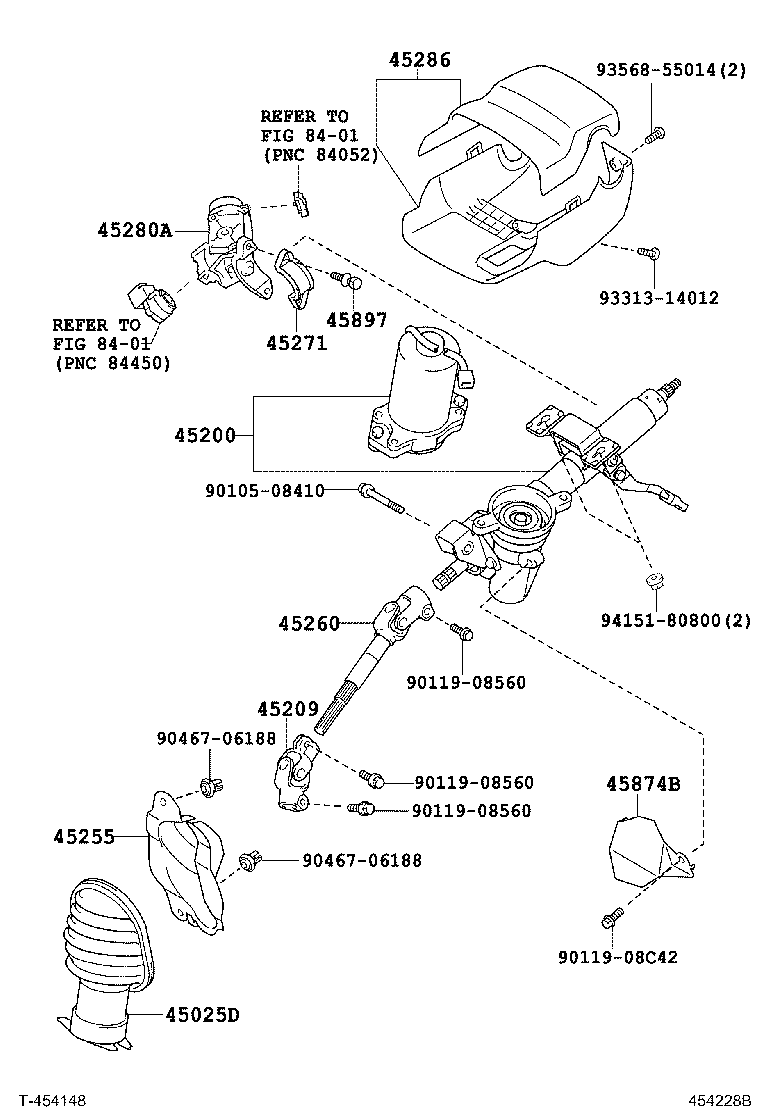

Toyota Yaris (jpp) KSP90 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52140	KSP90,ZSP90..JPP..5F	08/2005 - 12/2999	1
45200 - POST ASSY, STEERING
45200-52280	KSP90..JPP..RHD..STD STEERING COLUMN-TILT & TELESCO(EPS)	08/2005 - 12/2007	1
45200-52261	KSP90..JPP..RHD..STD	01/2008 - 08/2008	1
45200-52260	KSP90..JPP..RHD..STD	08/2005 - 12/2007	1
45200-52281	KSP90..JPP..RHD..STD STEERING COLUMN-TILT & TELESCO(EPS)	01/2008 - 08/2008	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52040	KSP90..JPP	08/2005 - 12/2999	1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-52130	KSP90..JPP..RHD..STD	08/2005 - 08/2008	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52170	KSP90..JPP..RHD	08/2005 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030	KSP90,ZSP90..JPP..5F	08/2005 - 12/2999	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-52090	KSP90..JPP;ZSP90..JPP..LHD	08/2005 - 09/2008	1
45286 - COVER, STEERING COLUMN
45286-52929B0	KSP90,ZSP90..JPP..5F DK.GRAY,TRIM1#	08/2005 - 12/2999	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-52020	KSP90,ZSP90..JPP..RHD..5F	08/2005 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	KSP90,ZSP90..JPP..5F	08/2005 - 12/2999	2
Common parts
90105-08410
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
94151-80800
Linked diagrams
8401

KSP90R-AGMRKW (2005)
