KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )JPP

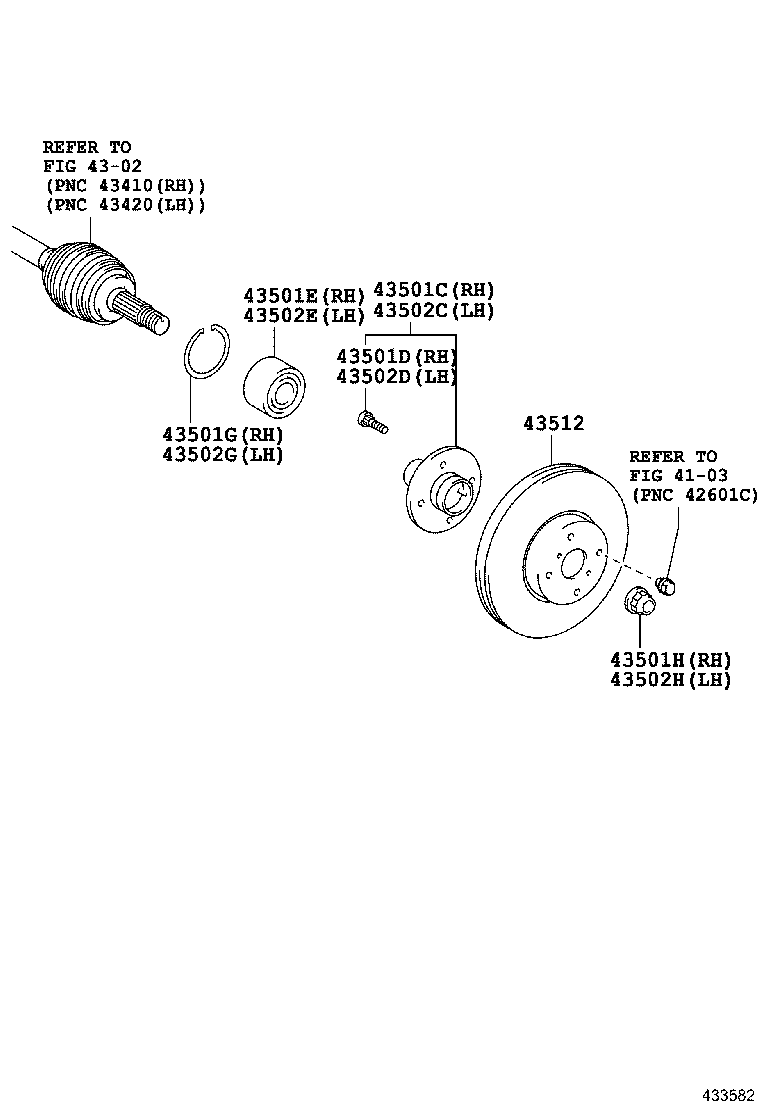

Click highlighted areas on diagram

diagram 4103 4302 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-52030

KSP90,ZSP90..JPP

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

KSP90,ZSP90..JPP..5F

 4
43501E - BEARING (FOR FRONT AXLE HUB RH)
90363-40079

KSP90,ZSP90..JPP..5F

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-80003

KSP90,ZSP90..JPP

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

KSP90,ZSP90..JPP..5F

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-52030

KSP90,ZSP90..JPP..5F

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

KSP90,ZSP90..JPP..5F

 4
43502E - BEARING (FOR FRONT AXLE HUB LH)
90363-40079

KSP90,ZSP90..JPP..5F

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-80003

KSP90,ZSP90..JPP

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

KSP90,ZSP90..JPP..5F

 1
43512 - DISC, FRONT
43512-52130

KSP90..JPP

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
43512-52120

KSP90..JPP

 2
Linked diagrams
4103
4302
