KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )KSP90..JPP

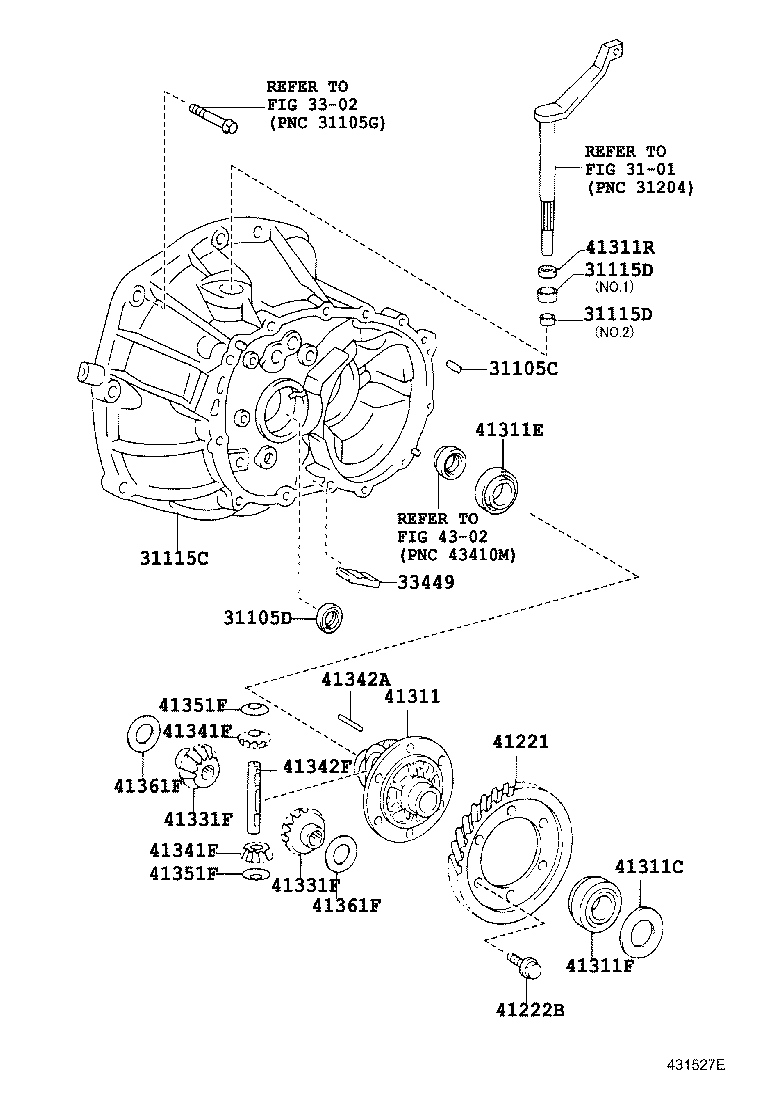

Click highlighted areas on diagram

C551

diagram 3101 31105C 31105D 31115C 31115D 31115D 3302 33449 41221 41222B 41311 41311C 41311E 41311F 41311R 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE)
90250-08054

KSP90..JPP

 4
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-23008

KSP90..JPP

 1
90311-23009

KSP90..JPP

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-52050

KSP90..JPP

 1
31115D - BUSH, BIMETAL FORMED(FOR FRONT TRANSAXLE CASE)
90384-15007

KSP90..JPP

NO.2

 1
90384-20017

KSP90..JPP

NO.1

 1
31115D - BUSH, BIMETAL FORMED(FOR FRONT TRANSAXLE CASE)
90384-15007

KSP90..JPP

NO.2

 1
90384-20017

KSP90..JPP

NO.1

 1
33449 - MAGNET, TRANSMISSION
33449-60010

KSP90..JPP

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-52170

KSP90..JPP

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12313

KSP90..JPP

 6
41311 - CASE, FRONT DIFFERENTIAL
41311-52120

KSP90..JPP

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41015

KSP90..JPP

T=2.15,MARK BB

 1
90564-41021

KSP90..JPP

T=2.45,MARK HH

 1
90564-41018

KSP90..JPP

T=2.30,MARK EE

 1
90564-41014

KSP90..JPP

T=2.10,MARK AA

 1
90564-41016

KSP90..JPP

T=2.20,MARK CC

 1
90564-41026

KSP90..JPP

T=2.70,MARK NN

 1
90564-41017

KSP90..JPP

T=2.25,MARK DD

 1
90564-41027

KSP90..JPP

T=2.75,MARK PP

 1
90564-41024

KSP90..JPP

T=2.60,MARK LL

 1
90564-41019

KSP90..JPP

T=2.35,MARK FF

 1
90564-41020

KSP90..JPP

T=2.40,MARK GG

 1
90564-41022

KSP90..JPP

T=2.50,MARK JJ

 1
90564-41023

KSP90..JPP

T=2.55,MARK KK

 1
90564-41025

KSP90..JPP

T=2.65,MARK MM

 1
90564-41031

KSP90..JPP

T=2.95,MARK TT

 1
90564-41030

KSP90..JPP

T=2.90,MARK SS

 1
90564-41028

KSP90..JPP

T=2.80,MARK QQ

 1
90564-41029

KSP90..JPP

T=2.85,MARK RR

 1
90564-41032

KSP90..JPP

T=3.00,MARK UU

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38045

KSP90..JPP

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

KSP90..JPP

 1
41311R - SEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
90311-20006

KSP90..JPP

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-52050

KSP90..JPP

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-52050

KSP90..JPP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-52070

KSP90..JPP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-52070

KSP90..JPP

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-04053

KSP90..JPP

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-70030

KSP90..JPP

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

KSP90..JPP

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

KSP90..JPP

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-70010

KSP90..JPP

T=0.50

 2
41361-70020

KSP90..JPP

T=0.55

 2
41361-70050

KSP90..JPP

T=0.70

 2
41361-70080

KSP90..JPP

T=0.85

 2
41361-70040

KSP90..JPP

T=0.65

 2
41361-70070

KSP90..JPP

T=0.80

 2
41361-70060

KSP90..JPP

T=0.75

 2
41361-70030

KSP90..JPP

T=0.60

 2
41361-70100

KSP90..JPP

T=0.95

 2
41361-70090

KSP90..JPP

T=0.90

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-70010

KSP90..JPP

T=0.50

 2
41361-70020

KSP90..JPP

T=0.55

 2
41361-70050

KSP90..JPP

T=0.70

 2
41361-70080

KSP90..JPP

T=0.85

 2
41361-70040

KSP90..JPP

T=0.65

 2
41361-70070

KSP90..JPP

T=0.80

 2
41361-70060

KSP90..JPP

T=0.75

 2
41361-70030

KSP90..JPP

T=0.60

 2
41361-70100

KSP90..JPP

T=0.95

 2
41361-70090

KSP90..JPP

T=0.90

 2
Linked diagrams
3101
3302
4302
