KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )KSP90..JPP

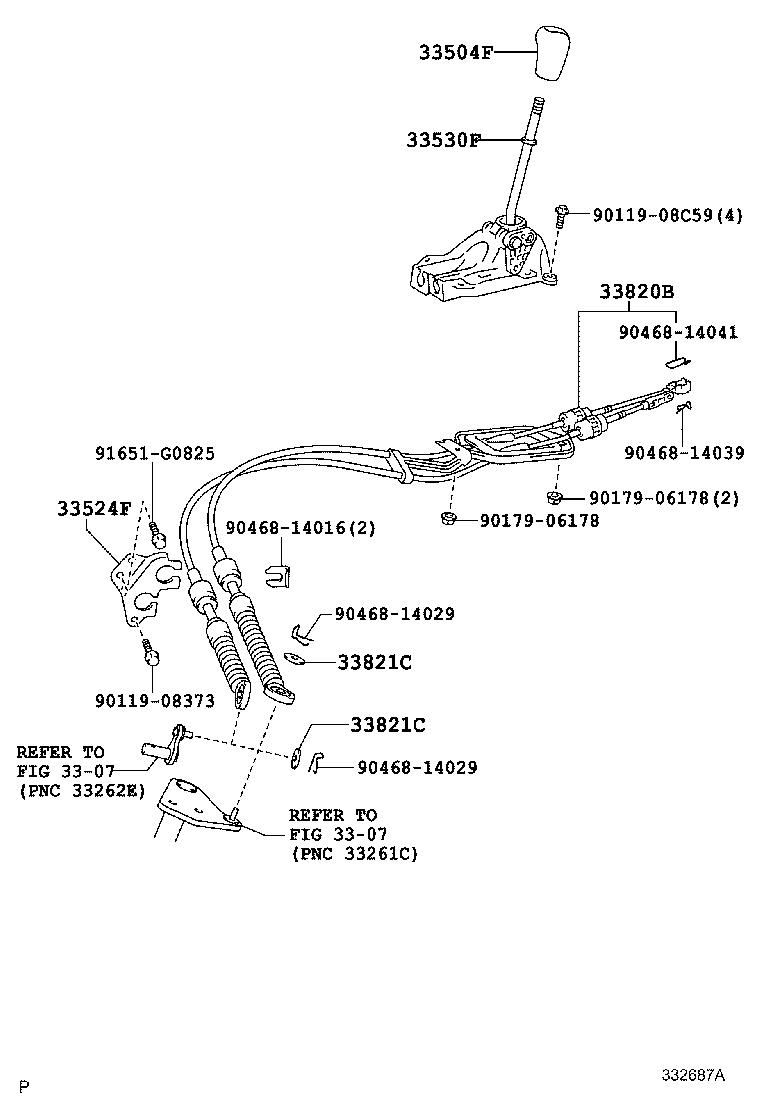

Click highlighted areas on diagram

diagram 3307 3307 33504F 33524F 33530F 33820B 33821C 33821C 9011908373 9011908C59 9017906178 9017906178 9046814016 9046814029 9046814029 9046814039 9046814041 91651G0825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-13010B0

KSP90..JPP..STD

DK.GRAY,TRIM1#

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-52030

KSP90..JPP

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-52210

KSP90,ZSP90..JPP..5F

 1
33530-52110

KSP90,ZSP90..JPP

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52430

KSP90..JPP

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

KSP90,ZSP90..JPP..5F

OD=28

 2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

KSP90,ZSP90..JPP..5F

OD=28

 2
Common parts
90119-08373
90119-08C59
90179-06178
90468-14016
90468-14029
90468-14039
90468-14041
91651-G0825
Linked diagrams
3307
