KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )JPP..RHD

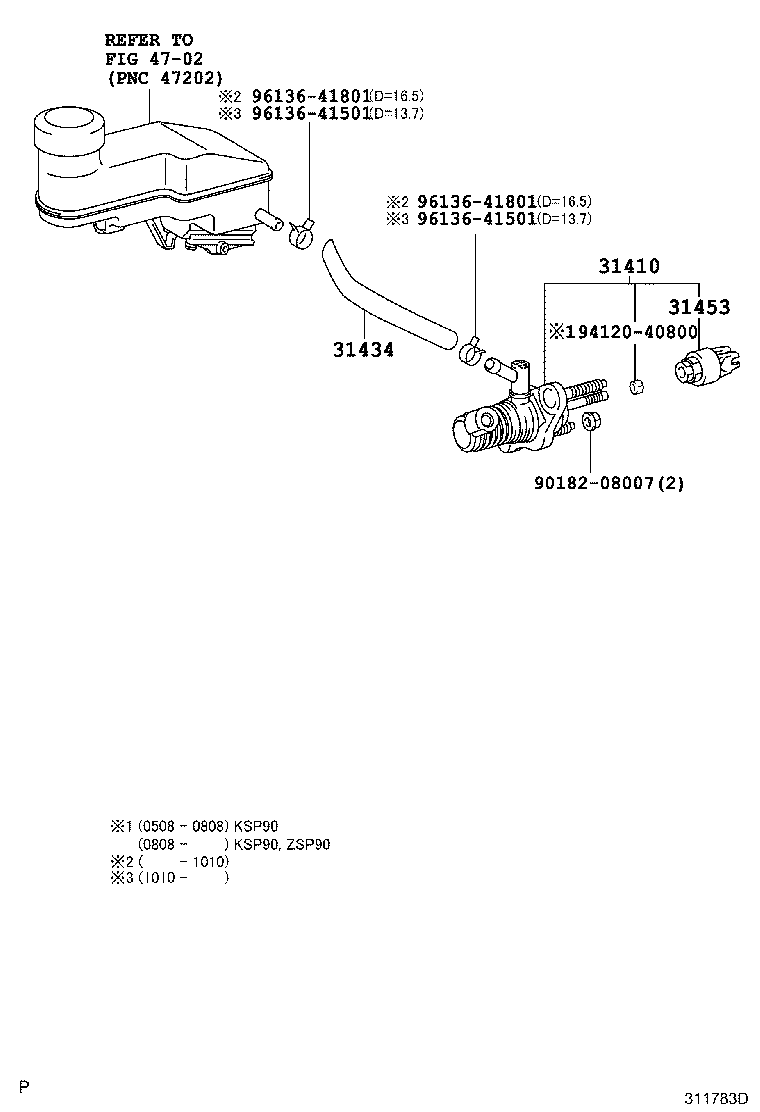

Click highlighted areas on diagram

diagram 31410 31434 31453 4702 9018208007 9412040800 9613641501 9613641501 9613641801 9613641801
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-52050

KSP90..JPP..RHD

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52140

KSP90,ZSP90..JPP..RHD..5F

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-52010

KSP90..JPP..RHD

 1
Common parts
90182-08007
94120-40800
96136-41501
96136-41801
Linked diagrams
4702
