KSP90R-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )1KRFE..JPP

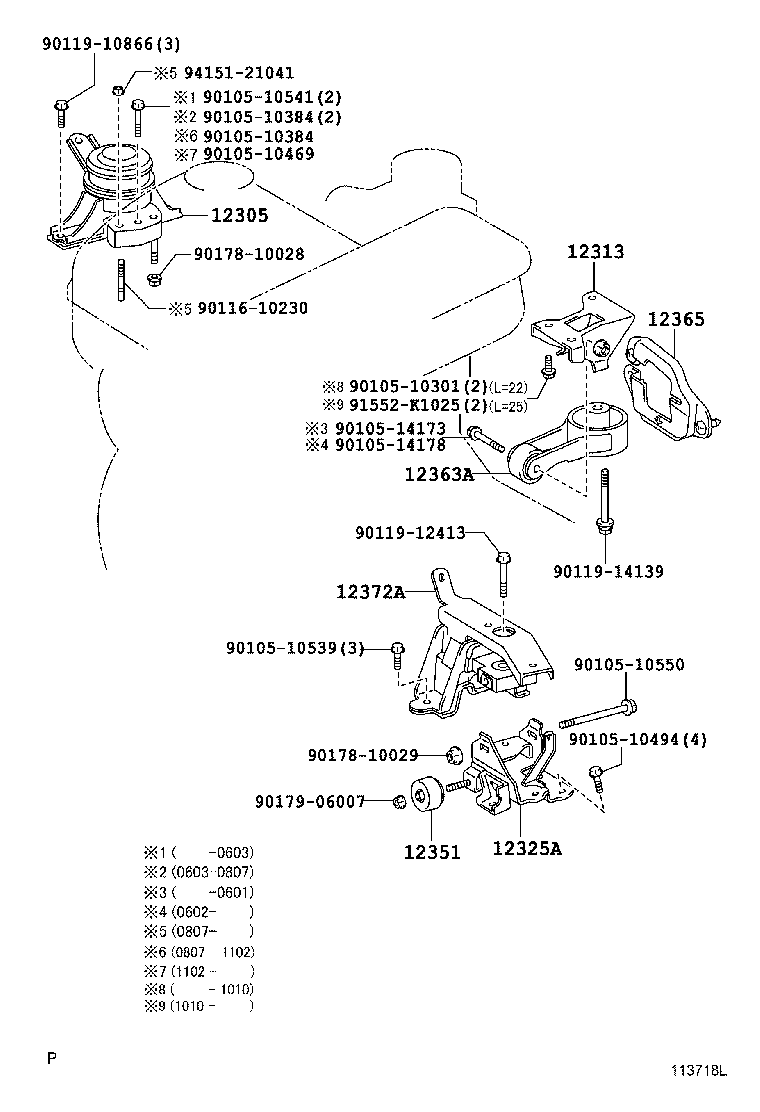

Click highlighted areas on diagram

diagram 12305 12313 12325A 12351 12363A 12365 12372A 9010510301 9010510384 9010510384 9010510469 9010510494 9010510539 9010510541 9010510550 9010514173 9010514178 9011610230 9011910866 9011912413 9011914139 9017810028 9017810029 9017906007 91552K1025 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-40050

1KRFE..KSP90..JPP

 1
12305-40070

1KRFE..KSP90..JPP

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-40010

1KRFE..KSP90..JPP

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-40010

1KRFE..KSP90..JPP

 1
12351 - DAMPER, ENGINE MOUNTING
12351-21100

1KRFE..KSP90..JPP..STD

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-40010

1KRFE..KSP90..JPP

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-40010

1KRFE..KSP90..JPP

 1
Common parts
90105-10301
90105-10384
90105-10469
90105-10494
90105-10539
90105-10541
90105-10550
90105-14173
90105-14178
90116-10230
90119-10866
90119-12413
90119-14139
90178-10028
90178-10029
90179-06007
91552-K1025
94151-21041
