KSP90L-AHMRKW (2008)
Toyota Yaris (Jpp)
(0808- )1KRFE..JPP
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

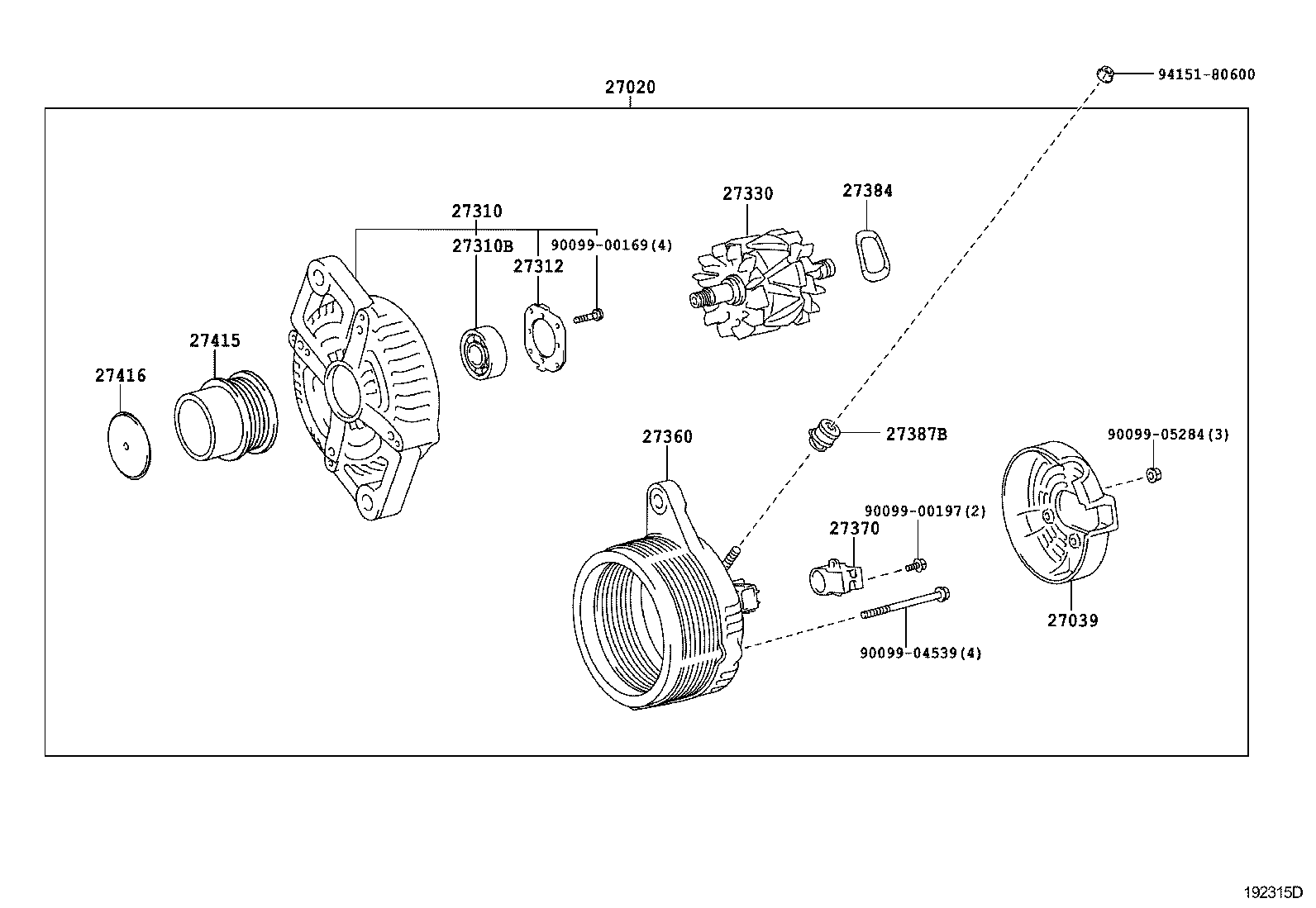

| 27020 - ALTERNATOR ASSY | ||||
| 27060-40020 |
1KRFE..KSP90..JPP 12V 80A |
1 | ||
| 27060-40050 |
1KRFE..KSP90..JPP..LHD 12V 100A,COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27060-40050 |
1KRFE..KSP90..JPP..LHD 12V 100A,COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27060-40040 |
1KRFE..KSP90..JPP 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26170 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27039-31390 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27039-26170 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27039-31390 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-40100 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27310-40100 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 90099-10223 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27312-72100 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-62220 |
1KRFE..KSP90..JPP |
1 | ||
| 27330-62220 |
1KRFE..KSP90..JPP |
1 | ||
| 27330-30070 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27330-30070 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-40110 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27360-40110 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-23120 |
1KRFE..KSP90..JPP |
1 | ||
| 27370-31220 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27370-31220 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27384-50030 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27387-20130 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W031 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 27415-0W031 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 27416-0W020 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 94151-80600 | ||||
