KSP90L-AHMGKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

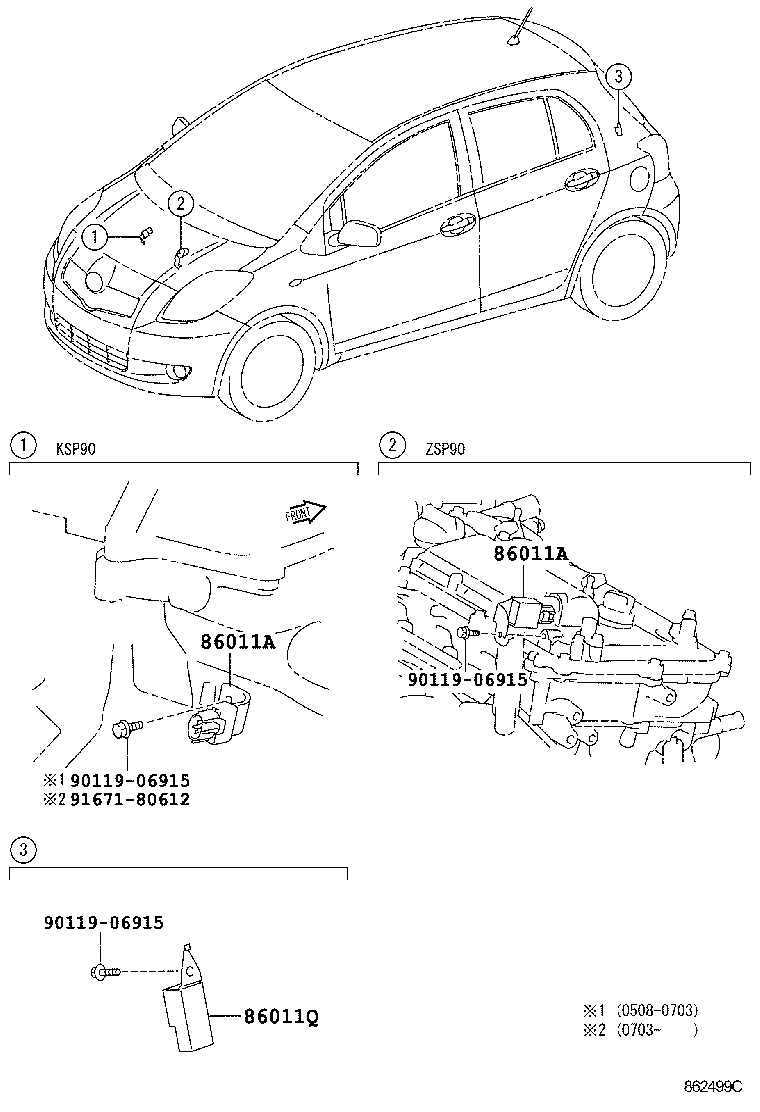

ILLUST NO. 3 OF 3(0508- )JPP

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011Q 9011906915 9011906915 9011906915 9167180612
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04186

KSP90..JPP

 1
86011A - CONDENSER, RADIO SETTING
90980-04186

KSP90..JPP

 1
86011Q - CONDENSER, RADIO SETTING
90980-04148

KSP90,ZSP90..JPP..5F

 1
Common parts
90119-06915
91671-80612

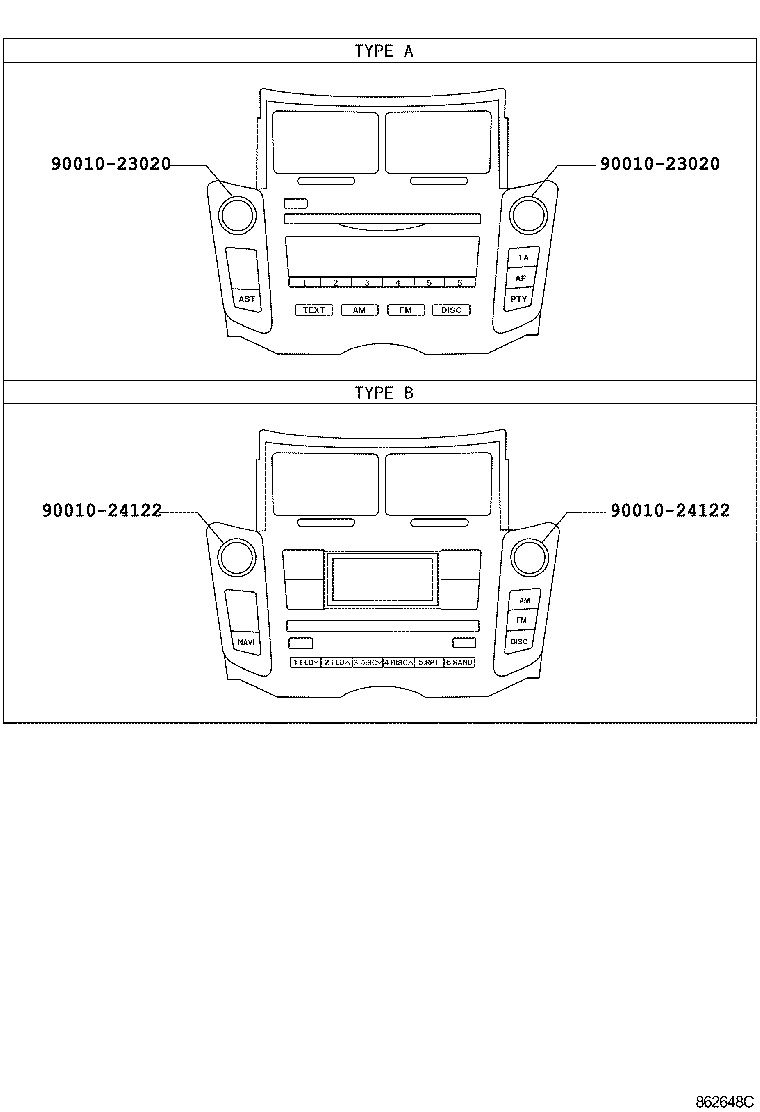

ILLUST NO. 2 OF 3(0508- )JPP

Click highlighted areas on diagram

diagram 9001023020 9001023020 9001024122 9001024122
Part # Description Qty Price
Common parts
90010-23020
90010-24122

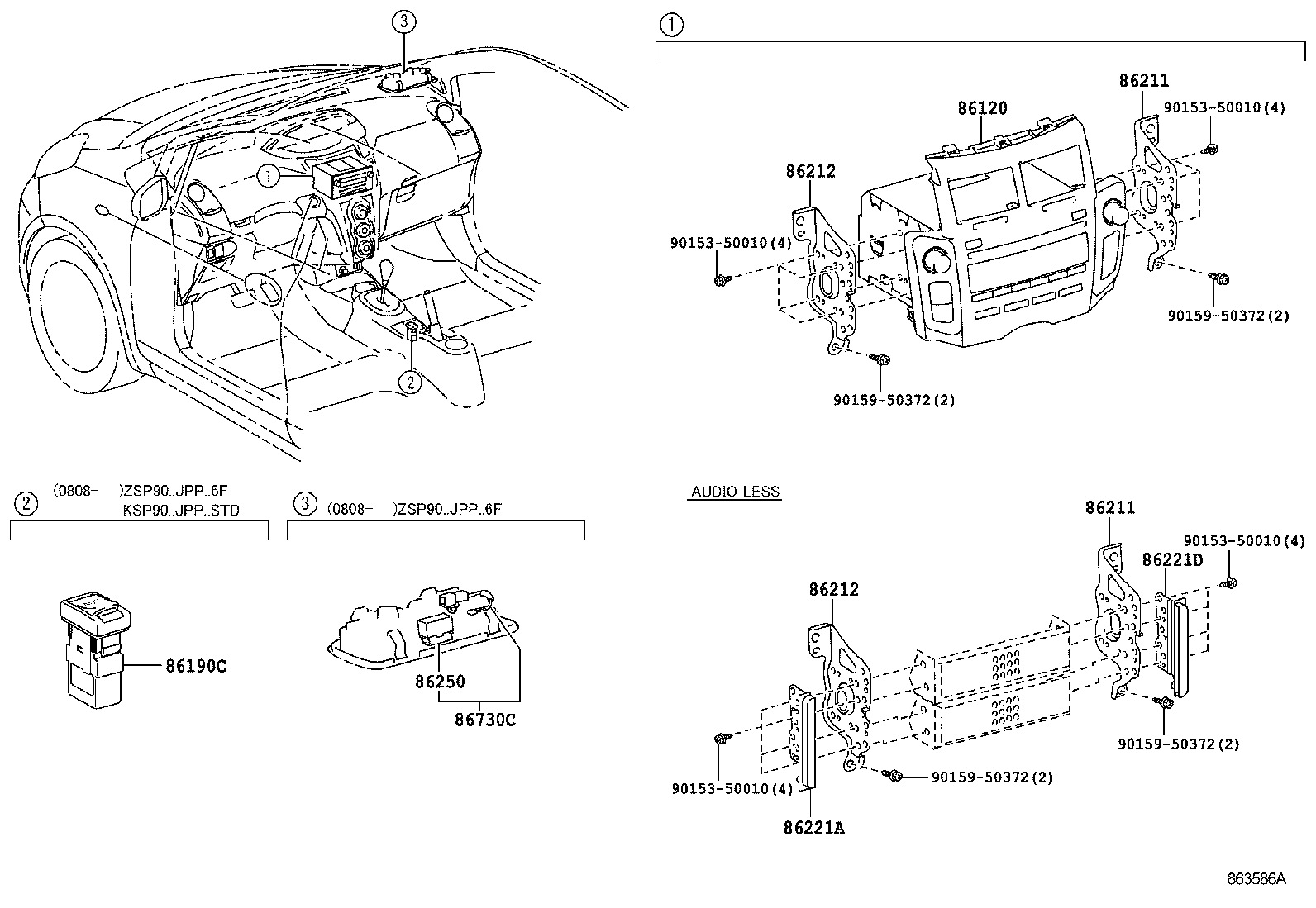

ILLUST NO. 1 OF 3(0508- )JPP

Click highlighted areas on diagram

diagram 86120 86190C 86211 86211 86212 86212 86221A 86221D 86250 86730C 9015350010 9015350010 9015350010 9015350010 9015950372 9015950372 9015950372 9015950372
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-52480

KSP90..JPP..SOL

MATSUSHITA,ID=58825

 1
86120-52481

KSP90..JPP..SOL

MATSUSHITA,ID=58825

 1
86120-52480

KSP90..JPP..SOL

MATSUSHITA,ID=58825,TYPE B:REFER ILLUST.

 1
86120-52481

KSP90..JPP..SOL

MATSUSHITA,ID=58825,TYPE B:REFER ILLUST.

 1
86211 - BRACKET, RADIO, NO.1
86211-52190

KSP90,ZSP90..JPP

 1
86211 - BRACKET, RADIO, NO.1
86211-52190

KSP90,ZSP90..JPP

 1
86212 - BRACKET, RADIO, NO.2
86212-52200

KSP90,ZSP90..JPP

 1
86212 - BRACKET, RADIO, NO.2
86212-52200

KSP90,ZSP90..JPP

 1
86221A - PANEL, RADIO RECEIVER
86221-52060

KSP90..JPP

AUDIO-RADIOLESS 4SPEAKER MULTI

 1
86221D - PANEL, RADIO RECEIVER
86221-52050

KSP90..JPP

AUDIO-RADIOLESS 4SPEAKER MULTI

 1
Common parts
90153-50010
90159-50372
