KSP90L-AHMGKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )JPP..LHD

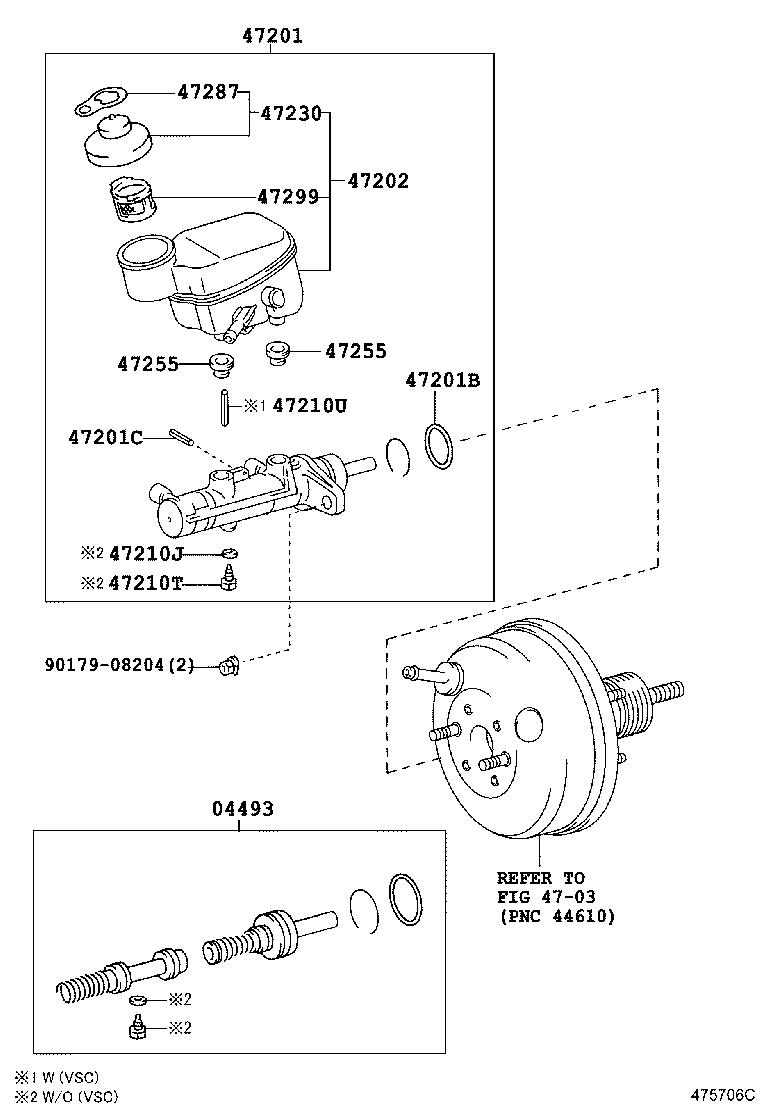

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47201C 47202 47210J 47210T 47210U 47230 47255 47255 47287 47299 9017908204
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-52070

KSP90..JPP..LHD

VSC-WITH

 1
04493-52100

KSP90..JPP..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)&VSC-WITH

 1
04493-52070

KSP90..JPP..LHD

 1
04493-52090

KSP90..JPP..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-52340

KSP90..JPP..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47201-52330

KSP90..JPP..LHD

 1
47201-52350

KSP90..JPP..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)&VSC-WITH

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

KSP90,ZSP90..JPP..LHD..5F

 1
90029-20059

KSP90..JPP..LHD

VSC-WITH

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-52170

KSP90,ZSP90..JPP..LHD

 1
47220-52170

KSP90..JPP..LHD

VSC-WITH

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-14204

KSP90..JPP..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)&VSC-WITH

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-28240

KSP90..JPP..LHD

VSC-WITH

 1
47230-28240

KSP90,ZSP90..JPP..LHD..5F

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
31417-35010

KSP90..JPP..LHD

VSC-WITH

 2
31417-35010

KSP90,ZSP90..JPP..LHD..5F

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
31417-35010

KSP90..JPP..LHD

VSC-WITH

 2
31417-35010

KSP90,ZSP90..JPP..LHD..5F

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010

KSP90,ZSP90..JPP..LHD..5F

 1
47299-25010

KSP90..JPP..LHD

VSC-WITH

 1
Common parts
90179-08204
Linked diagrams
4703
