KSP90L-AHMGKW (2005)
Toyota Yaris (Jpp)
(0508- )1KRFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-23020 |
1KRFE..KSP90..JPP |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-0Q010 |
1KRFE..KSP90..JPP (L) |
1 | ||
| 11363-40010 |
1KRFE..KSP90..JPP (J) |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-40040 |
1KRFE..KSP90..JPP TYPE A:REFER ILLUST. |
1 | ||
| 11401-40041 |
1KRFE..KSP90..JPP TYPE B:REFER ILLUST. |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10531 |
1KRFE..KSP90..JPP |
8 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-12002 |
1KRFE..KSP90..JPP L=12,OD=12 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-12002 |
1KRFE..KSP90..JPP L=12,OD=12 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KSP90..JPP L=14,OD=6 |
4 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KSP90..JPP L=14,OD=6 |
4 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KSP90..JPP L=14,OD=6 |
4 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KSP90..JPP L=14,OD=6 |
4 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10232 |
1KRFE..KSP90..JPP |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10232 |
1KRFE..KSP90..JPP |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-40020 |
1KRFE..KSP90..JPP |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1KRFE..KSP90..JPP |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-40010 |
1KRFE..KSP90..JPP |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-40100 |
1KRFE..KSP90..JPP (J) |
1 | ||
| 12101-0Q020 |
1KRFE..KSP90..JPP (L) |
1 | ||
| 12101-40100 |
1KRFE..KSP90..JPP |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1KRFE..KSP90..JPP |
2 | ||
| 90341-12032 |
1KRFE..KSP90..JPP |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1KRFE..KSP90..JPP |
1 | ||
| 90430-12031 |
1KRFE..KSP90..JPP |
2 | ||
| 12216F - PLATE, VENTILATION BAFFLE | ||||
| 12216-40020 |
1KRFE..KSP90..JPP |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-40070 |
1KRFE..KSP90..JPP |
1 | ||
| Common parts | ||||
| 90119-06861 | ||||
| 90119-06968 | ||||
| 90119-08C71 | ||||
| 90250-06003 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80865 | ||||
| 92122-80814 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

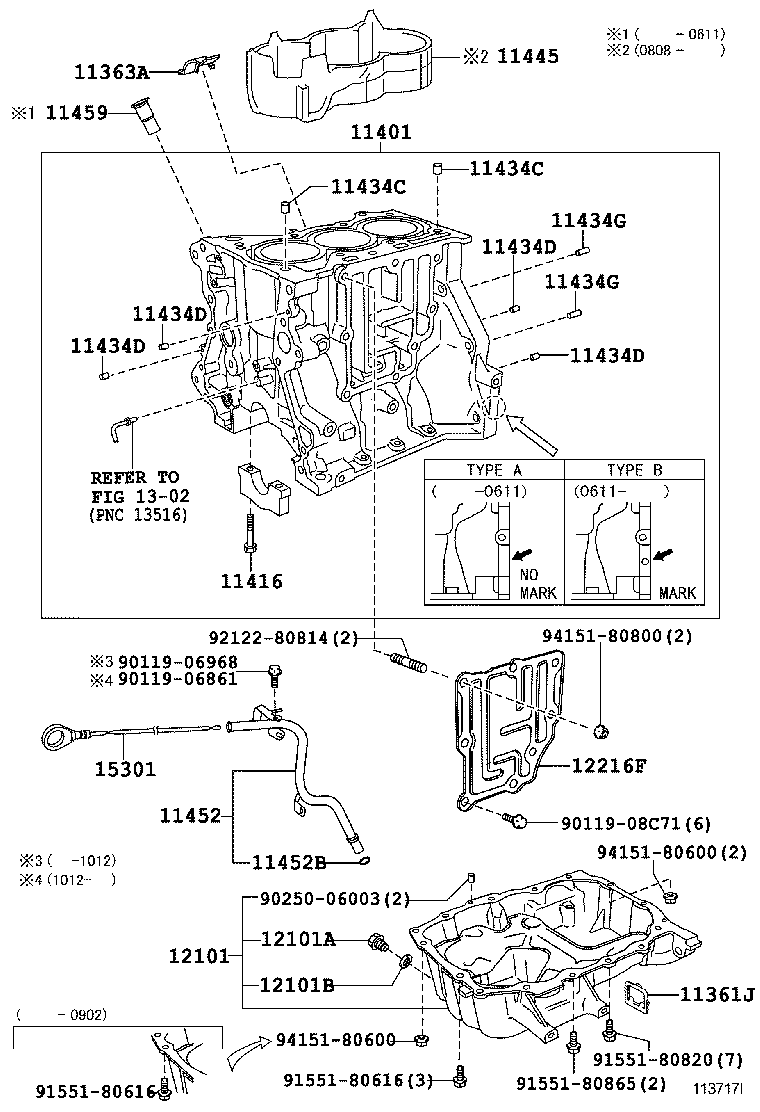

| Linked diagrams | ||||
| 1302 | ||||
