KSP90L-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0508- )JPP

Click highlighted areas on diagram

DOOR TRIM

diagram 67601 67602 67711 67712 67719 68171B 68172A 9018906130 9046709203 9046709206 9046709206 9046710161 9046710161 9046710161 9046710161 9356055025
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-52Y50B0

KSP90..JPP..LHD..3D..STD

POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE),BLACK,TRIM1#

 1
67610-52Y30B0

KSP90..JPP..LHD..3D..STD

BLACK,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-52M90B0

KSP90..JPP..LHD..3D..STD

BLACK,TRIM1#

 1
67620-52N10B0

KSP90..JPP..LHD..3D..STD

POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE),BLACK,TRIM1#

 1
67711 - COVER, FRONT DOOR TRIM, RH
67711-52020B0

KSP90,ZSP90..JPP..5F..(STD,TS)

DK.GRAY,TRIM1#

 1
67712 - COVER, FRONT DOOR TRIM, LH
67712-52020B0

KSP90,ZSP90..JPP..5F..(STD,TS)

DK.GRAY,TRIM1#

 1
67719 - COVER, FRONT DOOR TRIM COVER
67719-52010

KSP90,ZSP90..JPP..5F

 2
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-52160

KSP90,ZSP90..JPP..3D..5F

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-52130

KSP90,ZSP90..JPP..3D..5F

 1
Common parts
90189-06130
90467-09203
90467-09206
90467-10161
93560-55025

ILLUST NO. 3 OF 3(0508- )JPP

Click highlighted areas on diagram

TRIM CODE

diagram
Part # Description Qty Price

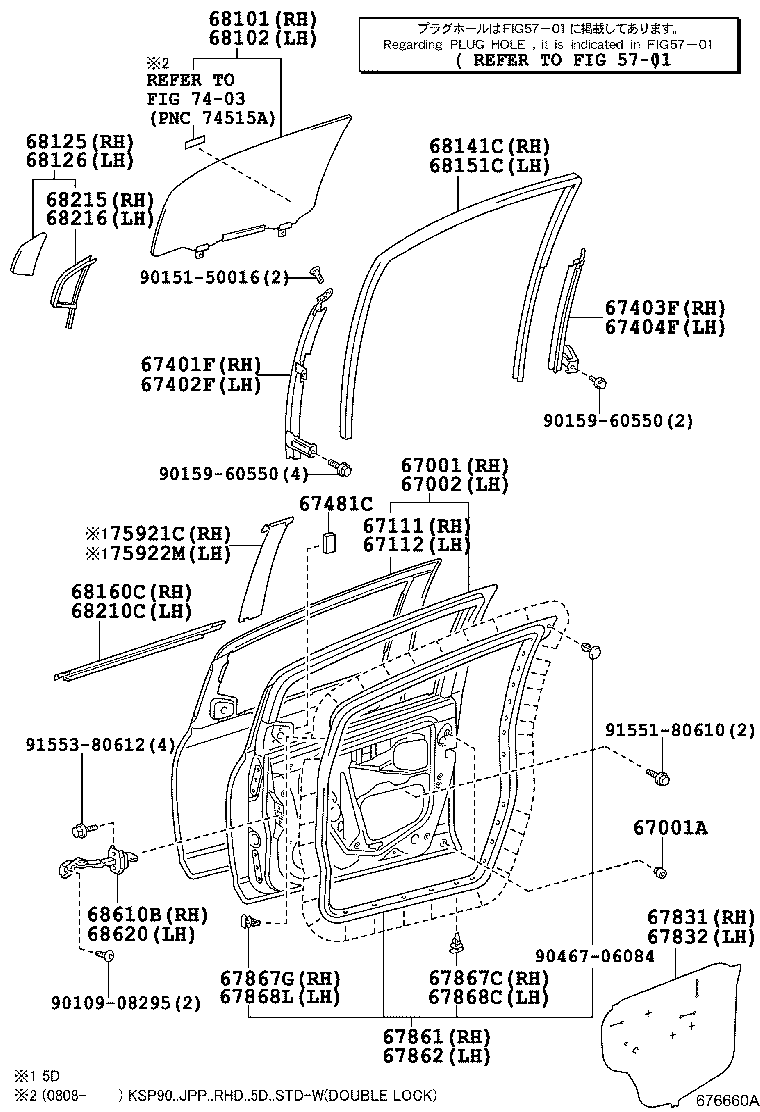

ILLUST NO. 1 OF 3(0508- )JPP

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 67001 67001A 67002 67111 67112 67401F 67402F 67403F 67404F 67481C 67831 67832 67861 67862 67867C 67867G 67868C 67868L 68101 68102 68125 68126 68141C 68151C 68160C 68210C 68215 68216 68610B 68620 7403 75921C 75922M 9010908295 9015150016 9015960550 9015960550 9046706084 9155180610 9155380612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-52360

KSP90,ZSP90..JPP..3D

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09137

KSP90,ZSP90..JPP..5F

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-52360

KSP90,ZSP90..JPP..3D

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-52160

KSP90,ZSP90..JPP..3D

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-52120

KSP90,ZSP90..JPP..3D

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-52090

KSP90,ZSP90..JPP..5F

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-52060

KSP90,ZSP90..JPP..5F

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-52170

KSP90,ZSP90..JPP..3D..5F

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-52140

KSP90,ZSP90..JPP..3D..5F

 1
67481C - SEAL, FRONT DOOR FRONT LOWER FRAME
67481-52010

KSP90,ZSP90..JPP..5F

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-52300

KSP90,ZSP90..JPP..3D..5F

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-52300

KSP90,ZSP90..JPP..3D..5F

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-52160

KSP90,ZSP90..JPP..3D..5F

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-52160

KSP90,ZSP90..JPP..3D..5F

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

KSP90,ZSP90..JPP..3D..5F

 25
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52020

KSP90,ZSP90..JPP..3D..5F

 11
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

KSP90,ZSP90..JPP..3D..5F

 25
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52010

KSP90,ZSP90..JPP..3D..5F

 11
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68110-52250

KSP90,ZSP90..JPP..3D

*UVCT,T=3.5,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68120-52250

KSP90,ZSP90..JPP..3D

*UVCT,T=3.5,GREEN

 1
68125 - GLASS, FRONT DOOR FIX WINDOW, RH
68101-52030

KSP90,ZSP90..JPP

*UVCT,T=3.5,GREEN

 1
68101-52031

KSP90,ZSP90..JPP..5F

*UVCT,T=3.5,GREEN

 1
68126 - GLASS, FRONT DOOR FIX WINDOW, LH
68102-52020

KSP90,ZSP90..JPP

*UVCT,T=3.5,GREEN

 1
68102-52021

KSP90,ZSP90..JPP..5F

*UVCT,T=3.5,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-52180

KSP90,ZSP90..JPP..3D..5F

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-52170

KSP90,ZSP90..JPP..3D..5F

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-52130

KSP90,ZSP90..JPP..3D..5F

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-52130

KSP90,ZSP90..JPP..3D..5F

 1
68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68215-52010

KSP90,ZSP90..JPP

 1
68215-52011

KSP90,ZSP90..JPP..5F

 1
68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68216-52011

KSP90,ZSP90..JPP..5F

 1
68216-52010

KSP90,ZSP90..JPP

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-52100

KSP90,ZSP90..JPP

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-52100

KSP90,ZSP90..JPP

 1
Common parts
90109-08295
90151-50016
90159-60550
90467-06084
91551-80610
91553-80612
Linked diagrams
5701
7403
