KSP90L-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )JPP

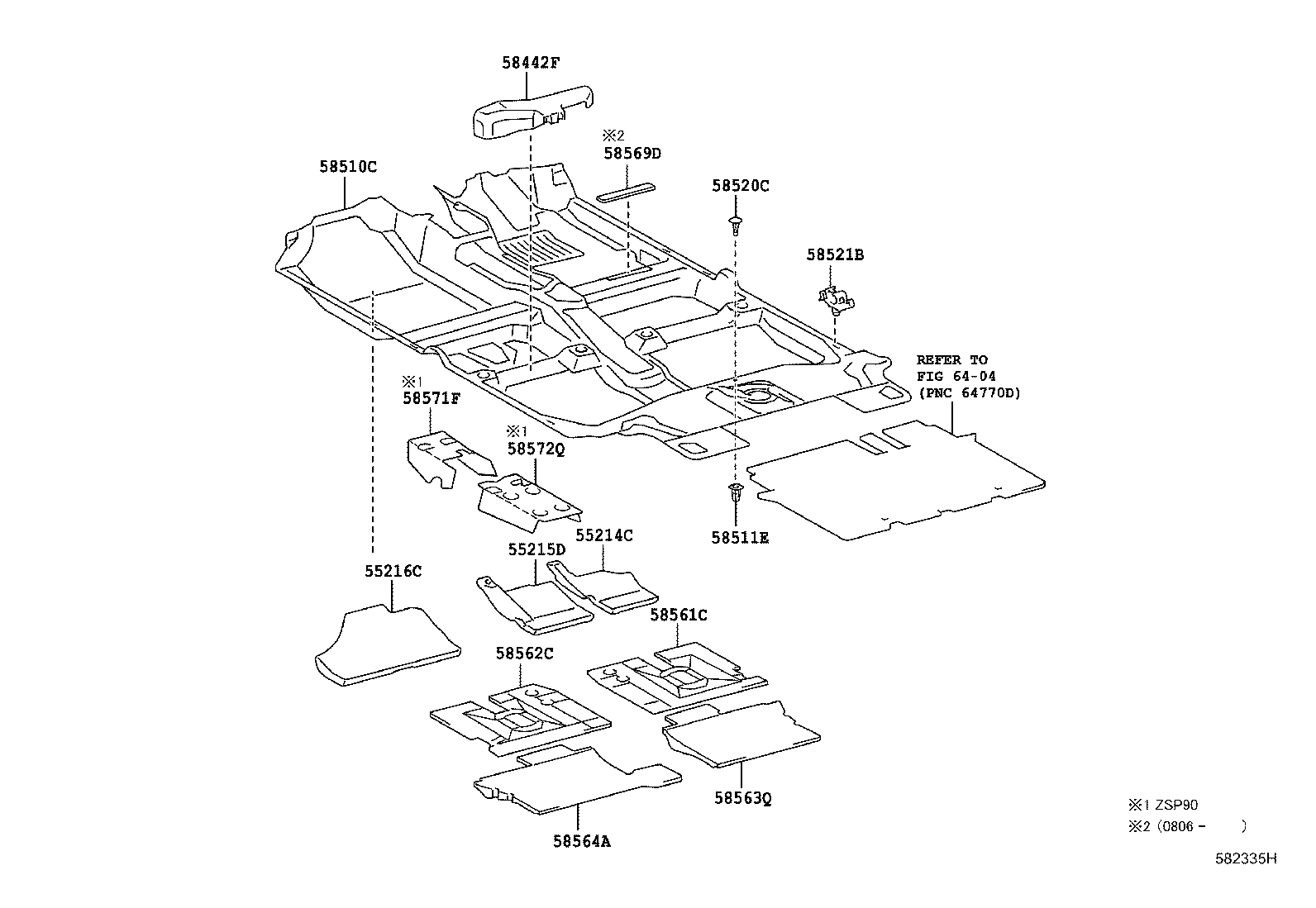

Click highlighted areas on diagram

diagram 55214C 55215D 55216C 58442F 58510C 58511E 58520C 58521B 58561C 58562C 58563Q 58564A 58569D 58571F 58572Q 6404
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-52140

KSP90,ZSP90..JPP..LHD

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-52110

KSP90,ZSP90..JPP..LHD

 1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-52020

KSP90..JPP..LHD

 1
58442F - COVER, JACK
58442-52060

KSP90,ZSP90..JPP..5F

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-5D110B1

KSP90..JPP..LHD..3D

COLD SPEC=W(REAR HEATER DUCT),DK. GREY,TRIM1#

 1
58510-5D111B1

KSP90,ZSP90..JPP..LHD..3D

COLD SPEC=W(REAR HEATER DUCT),DK. GREY,TRIM1#

 1
58510-5D101B1

KSP90,ZSP90..JPP..LHD..3D

DK. GREY,TRIM1#

 1
58510-5D100B1

KSP90..JPP..LHD..3D

DK. GREY,TRIM1#

 1
58510-5D112B1

KSP90,ZSP90..JPP..LHD..3D

COLD SPEC=W(REAR HEATER DUCT),DK. GREY,TRIM1#

 1
58510-5D102B1

KSP90,ZSP90..JPP..LHD..3D

DK. GREY,TRIM1#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-10023

KSP90,ZSP90..JPP..5F

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07115B0

KSP90,ZSP90..JPP..5F..(STD,TS)

DK.GRAY,TRIM1#

 1
58521B - HOOK, FLOOR CARPET
58521-52040

KSP90,ZSP90..JPP..3D..5F

 4
58561C - SILENCER, FRONT FLOOR, NO.1
58561-52130

KSP90,ZSP90..JPP..5F

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-52090

KSP90,ZSP90..JPP..5F

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-52070

KSP90,ZSP90..JPP..5F

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-52080

KSP90,ZSP90..JPP..5F

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-52020B0

KSP90,ZSP90..JPP..5F..(STD,TS)

DK.GRAY,TRIM1#

 1
Linked diagrams
6404
