KSP90L-AGMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )KSP90..JPP

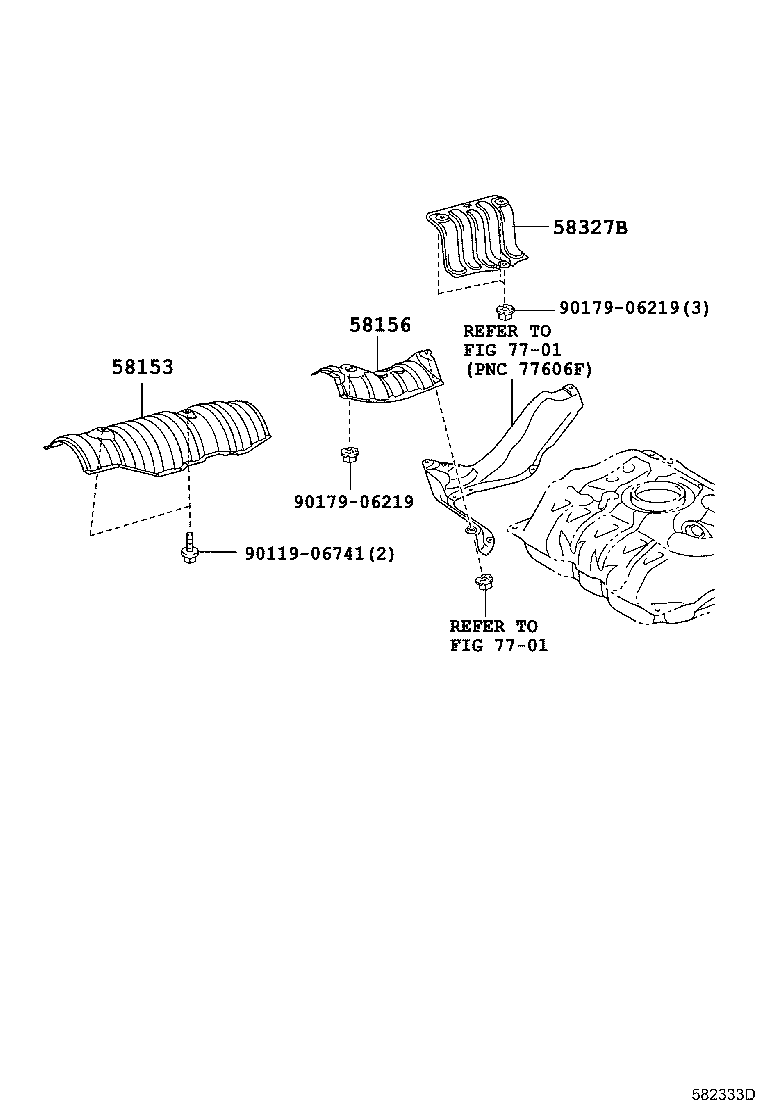

Click highlighted areas on diagram

diagram 58153 58156 58327B 7701 7701 9011906741 9017906219 9017906219
Part # Description Qty Price
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52070

KSP90..JPP

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-52010

KSP90,ZSP90..JPP..5F

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52110

KSP90,ZSP90..JPP..5F

 1
Common parts
90119-06741
90179-06219
Linked diagrams
7701
