KSP90L-AGMRKW (2005)
Toyota Yaris (Jpp)
(0508- )1KRFE..JPP
12V 0.8KW

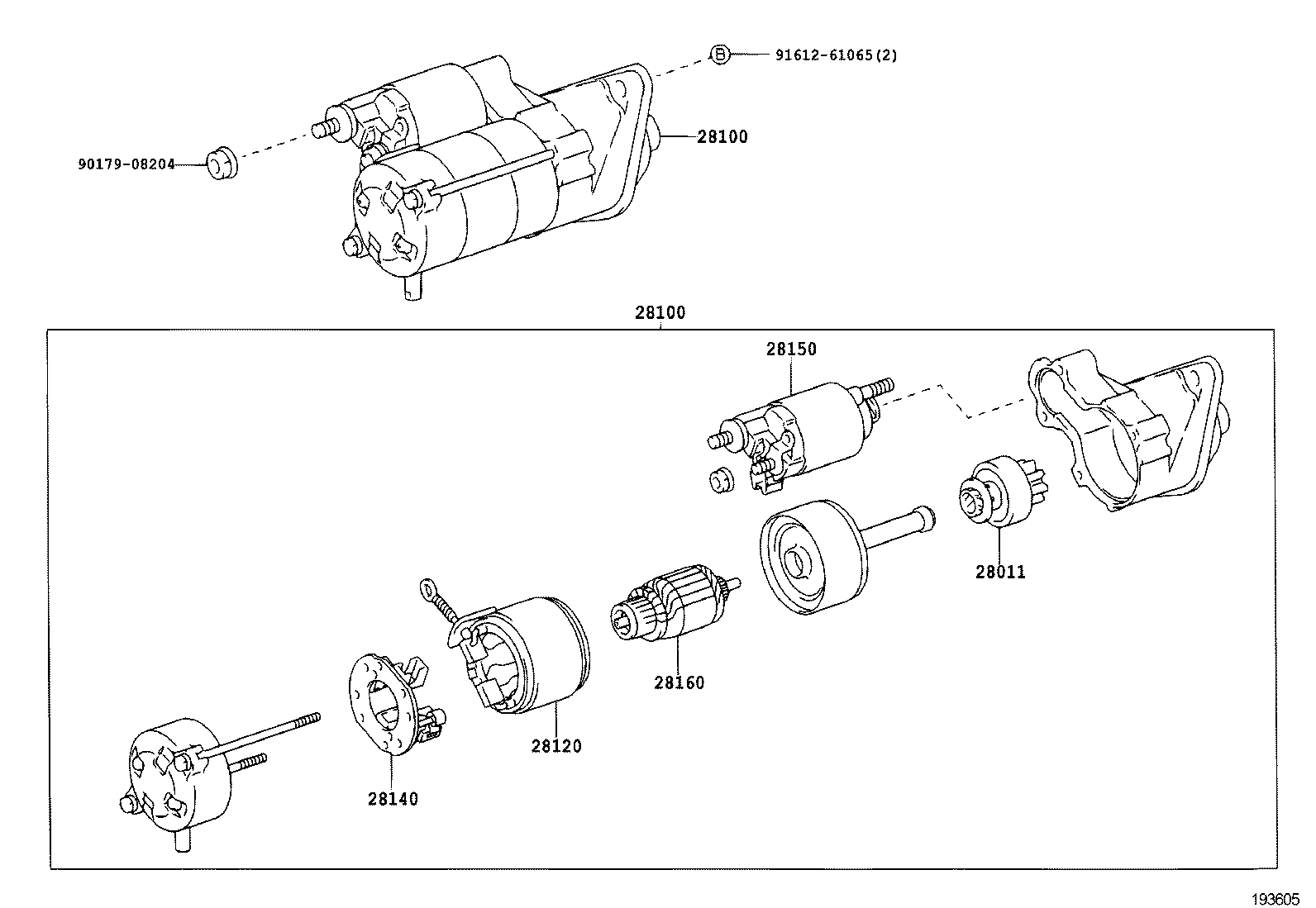

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-23030 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28011-40070 |
1KRFE..KSP90..JPP |
1 | ||
| 28011-23030 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40090 |
1KRFE..KSP90..JPP..LHD 12V 1.0KW,COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28100-40070 |
1KRFE..KSP90..JPP 12V 0.8KW |
1 | ||
| 28100-40090 |
1KRFE..KSP90..JPP..LHD 12V 1.0KW,COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70050 |
1KRFE,2ZRFE..KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28120-23020 |
1KRFE..KSP90..JPP |
1 | ||
| 28120-70050 |
1KRFE,2ZRFE..KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-16160 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28150-16160 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28150-40070 |
1KRFE..KSP90..JPP |
1 | ||
| 28150-21020 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28150-21020 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40070 |
1KRFE..KSP90..JPP |
1 | ||
| 28160-70050 |
1KRFE,2ZRFE..KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28160-70050 |
1KRFE,2ZRFE..KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
(0508- )1KRFE..JPP..LHD
12V 1.0KW

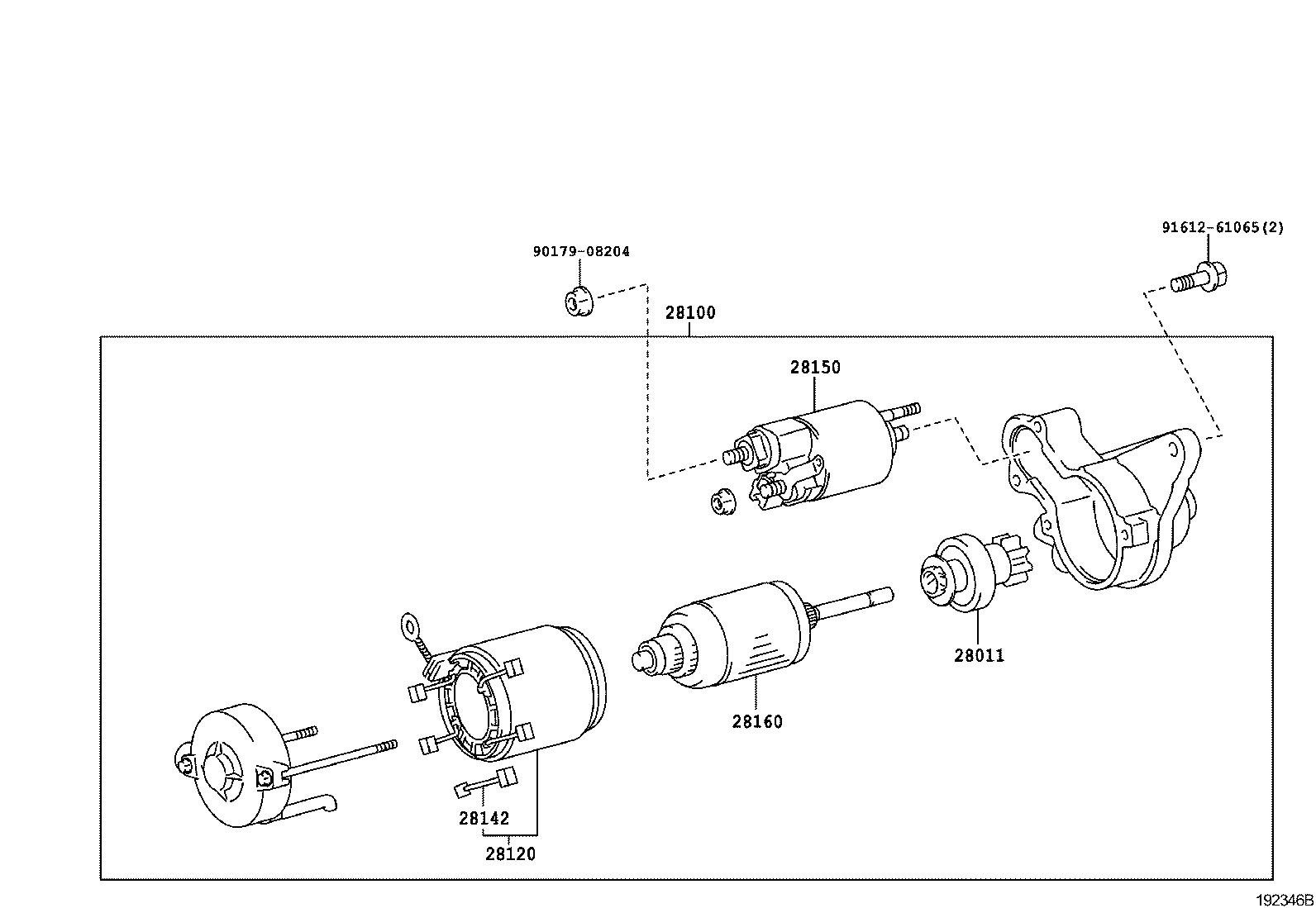

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-23030 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28011-40070 |
1KRFE..KSP90..JPP |
1 | ||
| 28011-23030 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40090 |
1KRFE..KSP90..JPP..LHD 12V 1.0KW,COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28100-40070 |
1KRFE..KSP90..JPP 12V 0.8KW |
1 | ||
| 28100-40090 |
1KRFE..KSP90..JPP..LHD 12V 1.0KW,COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-40090 |
1KRFE..KSP90..JPP..LHD 12V 1.0KW,COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28100-40070 |
1KRFE..KSP90..JPP 12V 0.8KW |
1 | ||
| 28100-40090 |
1KRFE..KSP90..JPP..LHD 12V 1.0KW,COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70050 |
1KRFE,2ZRFE..KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28120-23020 |
1KRFE..KSP90..JPP |
1 | ||
| 28120-70050 |
1KRFE,2ZRFE..KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-70020 |
1KRFE..KSP90..JPP..LHD..STD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28140-70020 |
1KRFE..KSP90..JPP..LHD..STD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-16160 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28150-16160 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28150-40070 |
1KRFE..KSP90..JPP |
1 | ||
| 28150-21020 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 28150-21020 |
1KRFE..KSP90..JPP..LHD COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40070 |
1KRFE..KSP90..JPP |
1 | ||
| 28160-70050 |
1KRFE,2ZRFE..KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W/O(REAR HEATER DUCT) |
1 | ||
| 28160-70050 |
1KRFE,2ZRFE..KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
