KSP90L-AGMRKW (2008)
Toyota Yaris (Jpp)

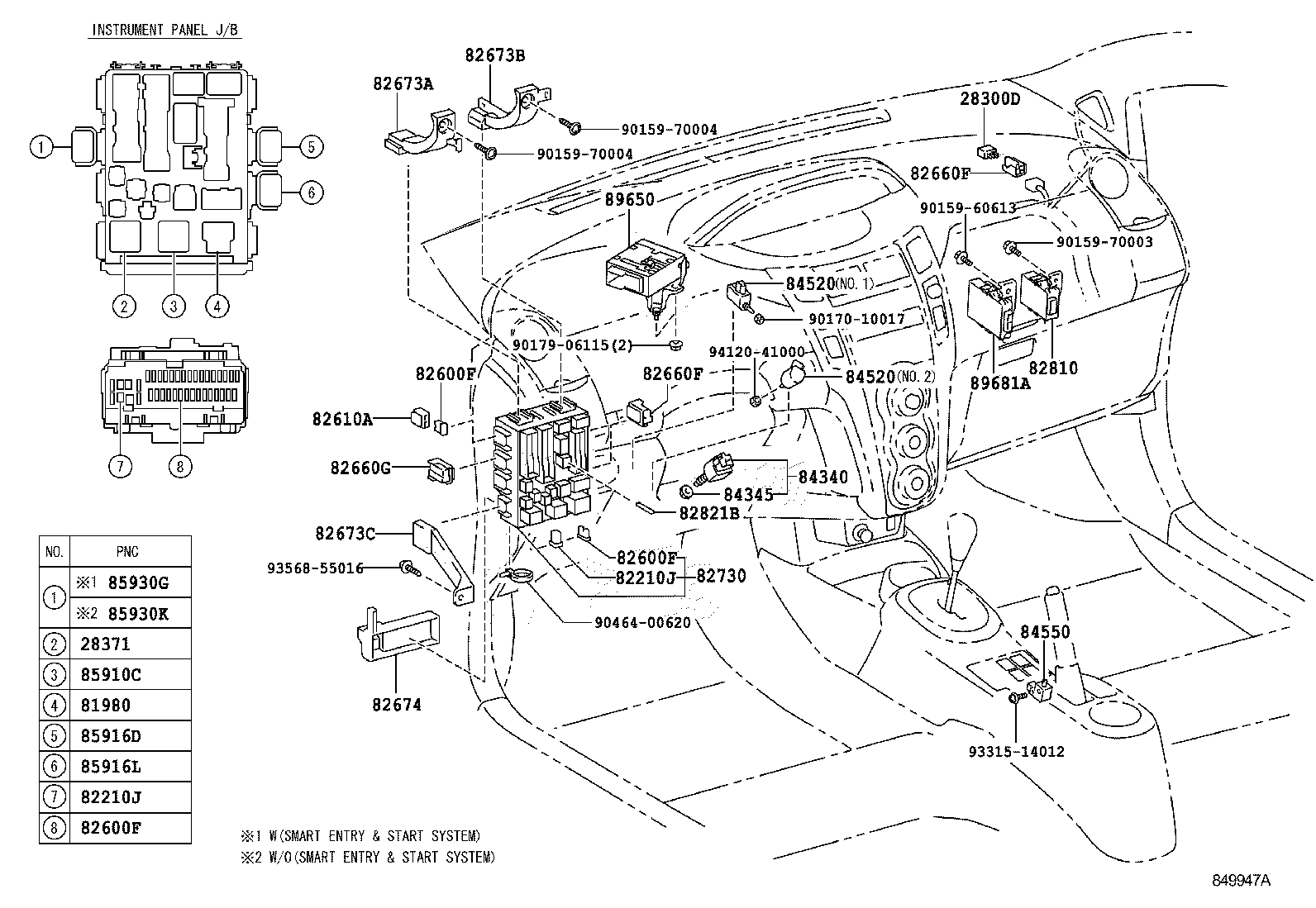

ILLUST NO. 4 OF 7(0808- )KSP90..JPP..LHD ; (0809- )ZSP90..JPP..LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1KRFE..KSP90..JPP |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
KSP90,ZSP90..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
KSP90,ZSP90..JPP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
KSP90,ZSP90..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
KSP90,ZSP90..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
KSP90,ZSP90..JPP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
KSP90,ZSP90..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KSP90,ZSP90..JPP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
KSP90,ZSP90..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KSP90,ZSP90..JPP 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KSP90,ZSP90..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
KSP90,ZSP90..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
KSP90,ZSP90..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KSP90,ZSP90..JPP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
KSP90,ZSP90..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KSP90,ZSP90..JPP 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KSP90,ZSP90..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
KSP90,ZSP90..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
KSP90,ZSP90..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KSP90,ZSP90..JPP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
KSP90,ZSP90..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KSP90,ZSP90..JPP 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KSP90,ZSP90..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
KSP90,ZSP90..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
KSP90,ZSP90..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
KSP90..JPP;ZSP90..JPP..LHD |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
KSP90..JPP;ZSP90..JPP..LHD |
2 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52040 |
KSP90..JPP;ZSP90..JPP..LHD |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52050 |
KSP90,ZSP90..JPP..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52060 |
KSP90,ZSP90..JPP..LHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-52070 |
KSP90,ZSP90..JPP..LHD |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-46010 |
KSP90,ZSP90..JPP..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52511 |
KSP90..JPP..LHD..STD COLD SPEC=W(REAR HEATER DUCT)&WIRELESS DOOR LOCK-WITH |
1 | ||
| 82730-52291 |
KSP90..JPP..LHD..STD COLD SPEC=W(REAR HEATER DUCT)&POWER DOOR LOCK-WITHOUT |
1 | ||
| 82730-52341 |
KSP90..JPP..STD POWER DOOR LOCK-WITHOUT |
1 | ||
| 82730-52770 |
KSP90..JPP..STD |
1 | ||
| 82730-52780 |
KSP90..JPP..LHD..STD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 82730-52541 |
KSP90..JPP..STD WIRELESS DOOR LOCK-WITH |
1 | ||
| 82730-52J70 |
KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 82730-52J80 |
KSP90..JPP..LHD COLD SPEC=W(REAR HEATER DUCT)&WIRELESS DOOR LOCK-WITH |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-52050 |
KSP90,ZSP90..JPP..LHD..5F COLD SPEC=W(REAR HEATER DUCT) |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
KSP90..JPP..STD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KSP90,ZSP90..JPP |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KSP90,ZSP90..JPP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
KSP90,ZSP90..JPP |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
KSP90..JPP FRONT FOG LAMP-WITH |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-04004 |
KSP90..JPP;ZSP90..JPP..LHD..5F |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52370 |
KSP90..JPP..LHD |
1 | ||
| 89650-52050 |
KSP90..JPP..LHD |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-52010 |
KSP90..JPP..LHD |
1 | ||
| Common parts | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90170-10017 | ||||
| 90179-06115 | ||||
| 90464-00620 | ||||
| 93315-14012 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
