KSP90L-AGMGKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)JPP..STD ; (0508- )JPP..5F..SOL,TS

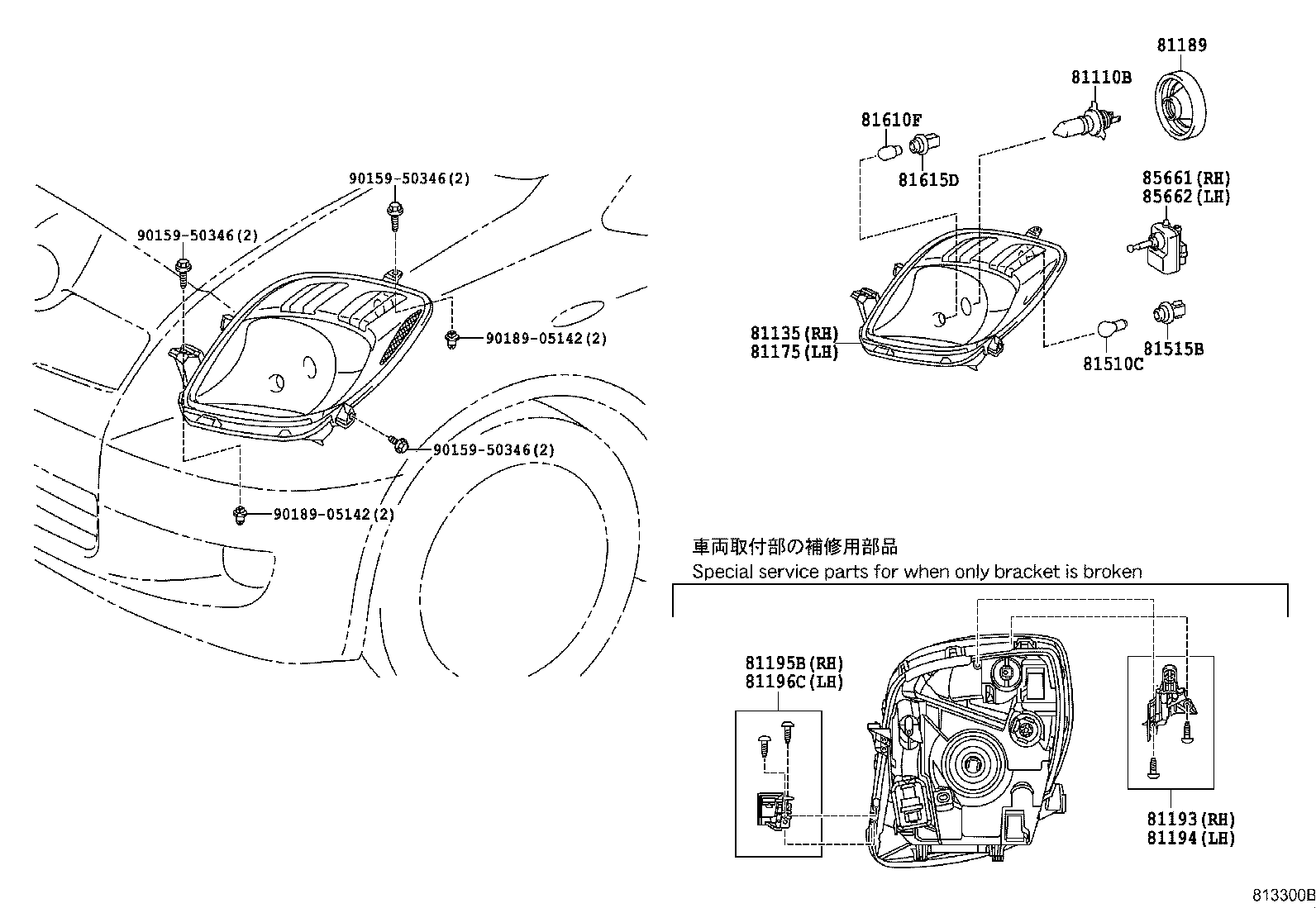

Click highlighted areas on diagram

diagram 81110B 81135 81175 81189 81193 81194 81195B 81196C 81510C 81515B 81610F 81615D 85661 85662 9015950346 9015950346 9015950346 9018905142 9018905142
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

KSP90,ZSP90..JPP

12V 60/55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-52580

KSP90..JPP..LHD

 1
81130-52590

KSP90..JPP..LHD

HEAD LAMP-LH AIMING(FOR RHD CAR)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-52570

KSP90..JPP..LHD

 1
81170-52580

KSP90..JPP..LHD

HEAD LAMP-LH AIMING(FOR RHD CAR)

 1
81189 - COVER, HEADLAMP
81139-52570

KSP90,ZSP90..JPP..5F

 2
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-52080

KSP90,ZSP90..JPP..5F

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-52080

KSP90,ZSP90..JPP..5F

 1
81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81195-52050

KSP90,ZSP90..JPP..5F

 1
81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81196-52050

KSP90,ZSP90..JPP..5F

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15020

KSP90,ZSP90..JPP..5F

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81515-52570

KSP90,ZSP90..JPP..5F

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

KSP90,ZSP90..JPP..5F

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
81138-52570

KSP90,ZSP90..JPP..5F

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-52010

KSP90,ZSP90..JPP..5F

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-52010

KSP90,ZSP90..JPP..5F

 1
Common parts
90159-50346
90189-05142
