KSP90L-AGMGKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)KSP90..JPP

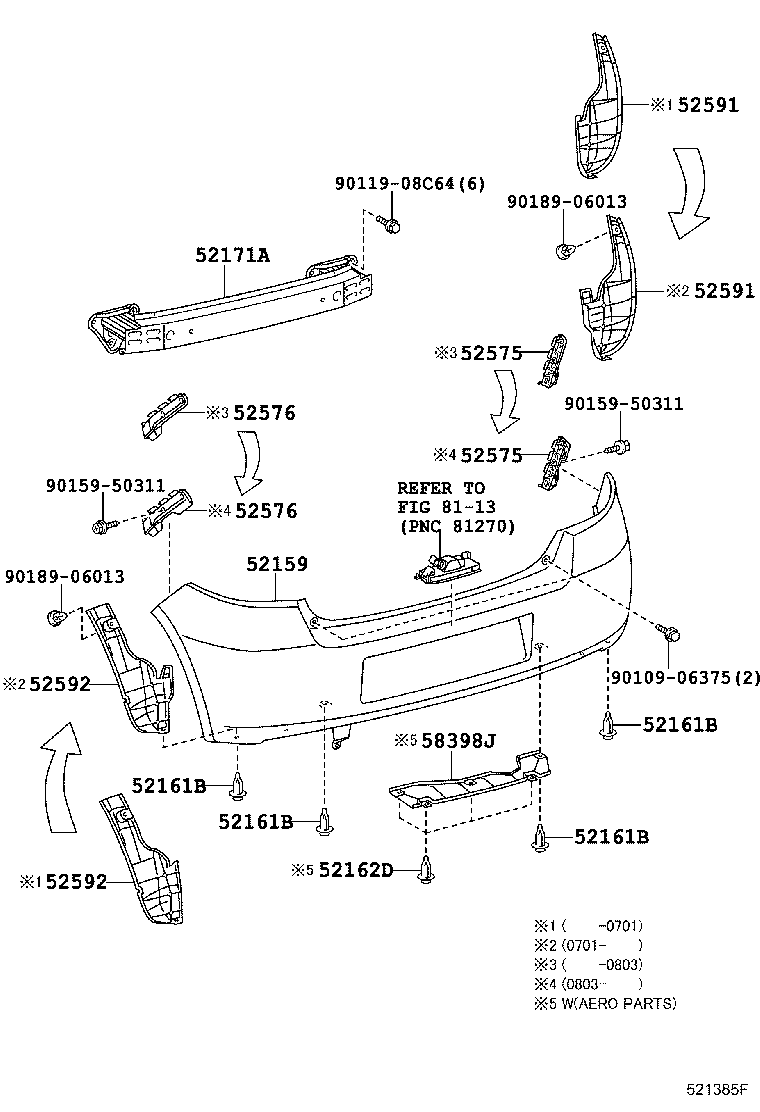

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52161B 52162D 52171A 52575 52575 52576 52576 52591 52591 52592 52592 58398J 8113 9010906375 9011908C64 9015950311 9015950311 9018906013 9018906013
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-52922

KSP90..JPP

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

KSP90..JPP

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90..JPP

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90..JPP

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90..JPP

 4
52162D - PIECE, REAR BUMPER
52161-16010

KSP90,ZSP90..JPP..(SOL,TS)

 4
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-52020

KSP90,ZSP90..JPP

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52110

KSP90,ZSP90..JPP

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52110

KSP90,ZSP90..JPP

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52090

KSP90,ZSP90..JPP

 1
52576-52091

KSP90,ZSP90..JPP..5F

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52090

KSP90,ZSP90..JPP

 1
52576-52091

KSP90,ZSP90..JPP..5F

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52181

KSP90..JPP

 1
52591-52180

KSP90..JPP

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52181

KSP90..JPP

 1
52591-52180

KSP90..JPP

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52171

KSP90..JPP

 1
52592-52170

KSP90..JPP

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52171

KSP90..JPP

 1
52592-52170

KSP90..JPP

 1
58398J - COVER, FLOOR UNDER, NO.1
58398-52030

KSP90..JPP..SOL

 1
Common parts
90109-06375
90119-08C64
90159-50311
90189-06013
Linked diagrams
8113
