KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1108- )LHD

Click highlighted areas on diagram

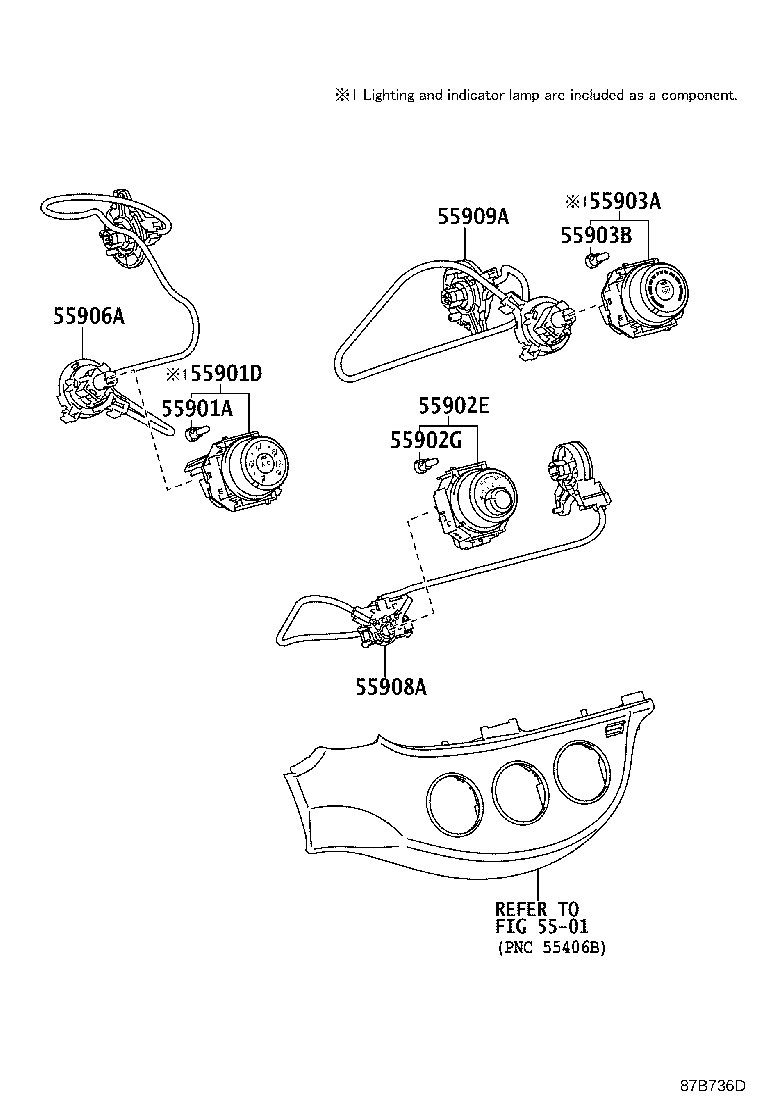

CONTROL PANEL

diagram 5501 55901A 55901D 55902E 55902G 55903A 55903B 55906A 55908A 55909A
Part # Description Qty Price
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90010-01142

KSP130,NSP130

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-52370

KSP130,NSP130

FRONT AIR CONDITIONER-DEALER OPTION,CHROME PLATED,W/KNOB PLATING

 1
55901-52310

KSP130,NSP130..R

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

 1
55901-52230

KSP130,NSP130

FRONT AIR CONDITIONER-DEALER OPTION,L/KNOB PLATING

 1
55901-52230

KSP130,NSP130..R

 1
55901-52310

KSP130,NSP130..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
55901-52370

KSP130,NSP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-52180

KSP130,NSP130..R

 1
55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2
90010-01142

KSP130,NSP130

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-52550

KSP130,NSP130..R

 1
55903-52620

KSP130,NSP130..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3
90010-01142

KSP130,NSP130

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52132

KSP130,NSP130

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52120

KSP130,NSP130..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52120

KSP130,NSP130

 1
Linked diagrams
5501

ILLUST NO. 2 OF 3(1108- )LHD

Click highlighted areas on diagram

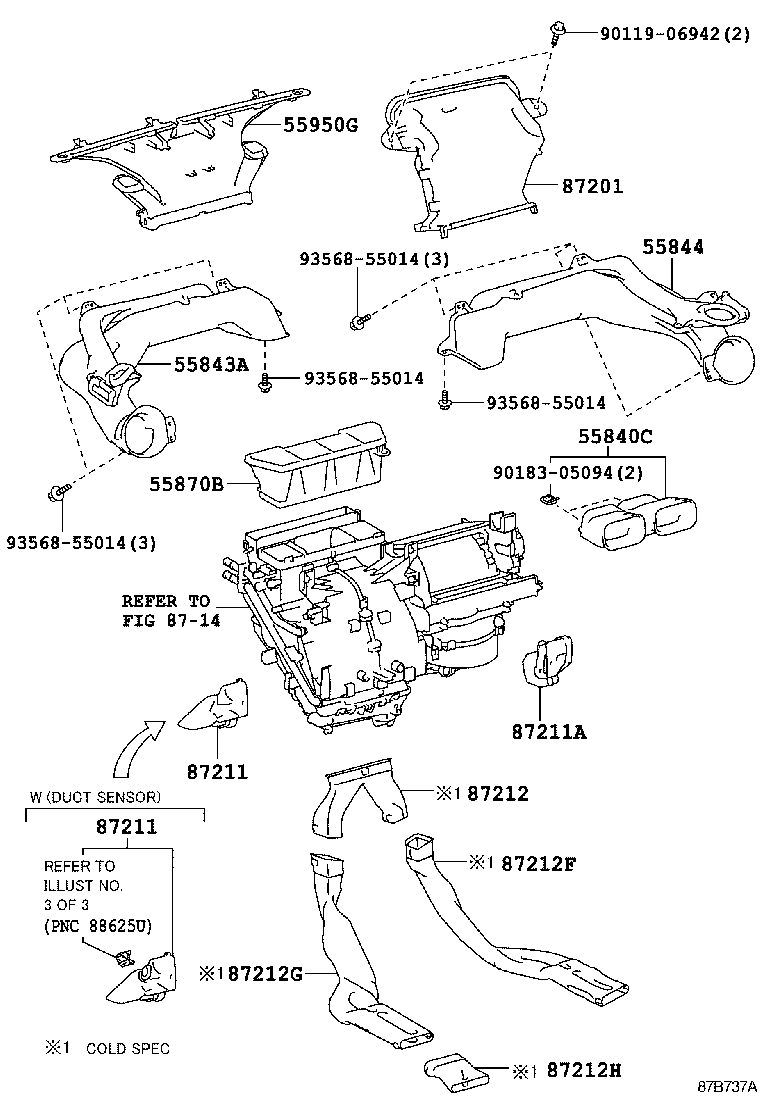

AIR DUCT

diagram 55840C 55843A 55844 55870B 55950G 8714 87201 87211 87211 87211A 87212 87212F 87212G 87212H 9011906942 9018305094 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55840C - DUCT ASSY, HEATER TO REGISTER, NO.6
55840-52090

KSP130,NSP130..LHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-52340

KSP130,NSP130..LHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-52250

KSP130,NSP130..LHD

 1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-52040

KSP130,NSP130

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-52170

KSP130,NSP130

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-52150

KSP130,NSP130..LHD

 1
87211 - DUCT, AIR, NO.1
87211-52060

KSP130..LHD

 1
87211 - DUCT, AIR, NO.1
87211-52060

KSP130..LHD

 1
87211A - DUCT, AIR, NO.2
87211-52070

KSP130,NSP130..LHD

 1
87211-52070

KSP130,NSP130

FRONT AIR CONDITIONER-DEALER OPTION,LHD

 1
87211-52050

KSP130,NSP130

FRONT AIR CONDITIONER-DEALER OPTION,RHD

 1
87212 - DUCT, AIR, REAR NO.1
87215-52050

KSP130,NSP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87212F - DUCT, AIR, REAR NO.2
87212-52100

KSP130,NSP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87212G - DUCT, AIR, REAR NO.3
87213-52070

KSP130,NSP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87212H - DUCT, AIR, REAR NO.4
87216-52040

KSP130,NSP130..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
Common parts
90119-06942
90183-05094
93568-55014
Linked diagrams
8714

ILLUST NO. 3 OF 3(1108- )LHD

Click highlighted areas on diagram

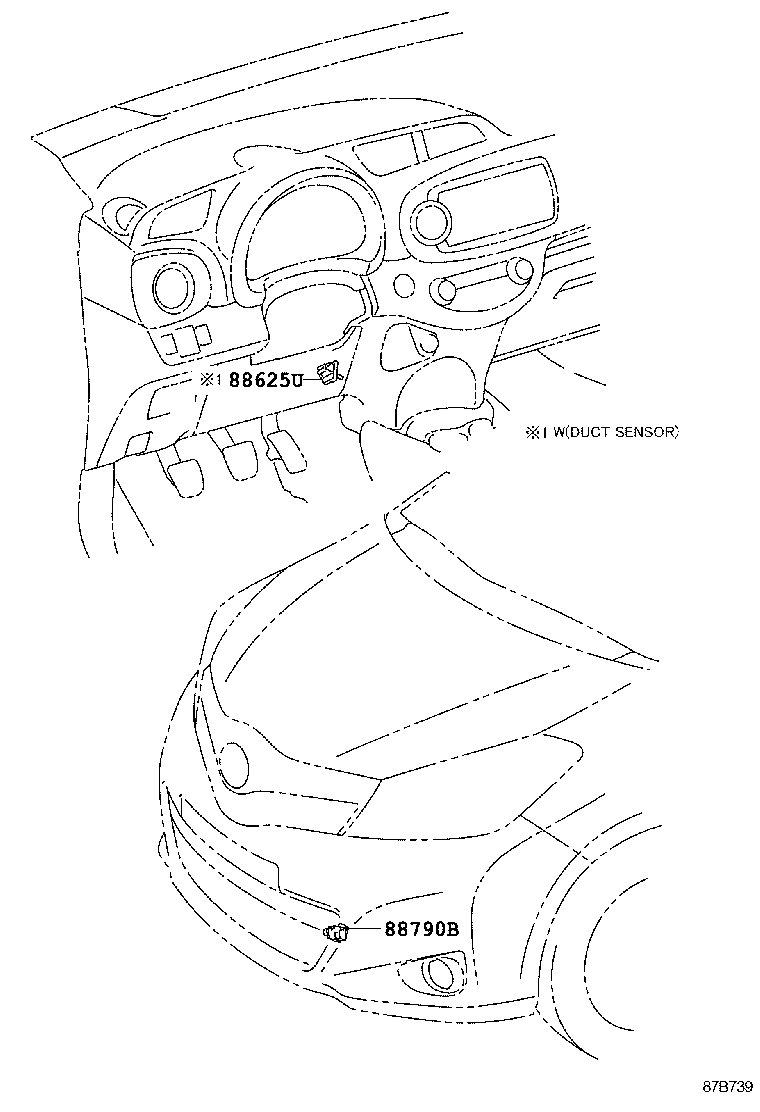

SENSOR

diagram 88625U 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

KSP130,NSP130

 1
