KSP130L-AHMRKW (2011)
Toyota Yaris (Jpp)
ILLUST NO. 1 OF 2(1108- )LHD
MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52230 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-52221 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87050-52230 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-52102 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-52063 |
KSP130,NSP130..LHD |
1 | ||
| 87050-52102 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52141 |
KSP130,NSP130..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
KSP130,NSP130 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52132 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-52092 |
KSP130,NSP130..LHD |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
KSP130,NSP130 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
KSP130,NSP130 POLLEN FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52102 |
KSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88501-52102 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88501-52103 |
KSP130,NSP130 |
1 | ||
| 88501-52102 |
KSP130,NSP130 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
KSP130,NSP130 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52040 |
KSP130,NSP130..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP130,NSP130 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-52100 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88578-52100 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KSP130,NSP130 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52680 |
KSP130,NSP130..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52680 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52720 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52680 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52680 |
KSP130,NSP130 |
1 | ||
| 88650-52880 |
KSP130,NSP130..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52720 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52700 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52880 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52880 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52880 |
KSP130,NSP130..R FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52720 |
KSP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||

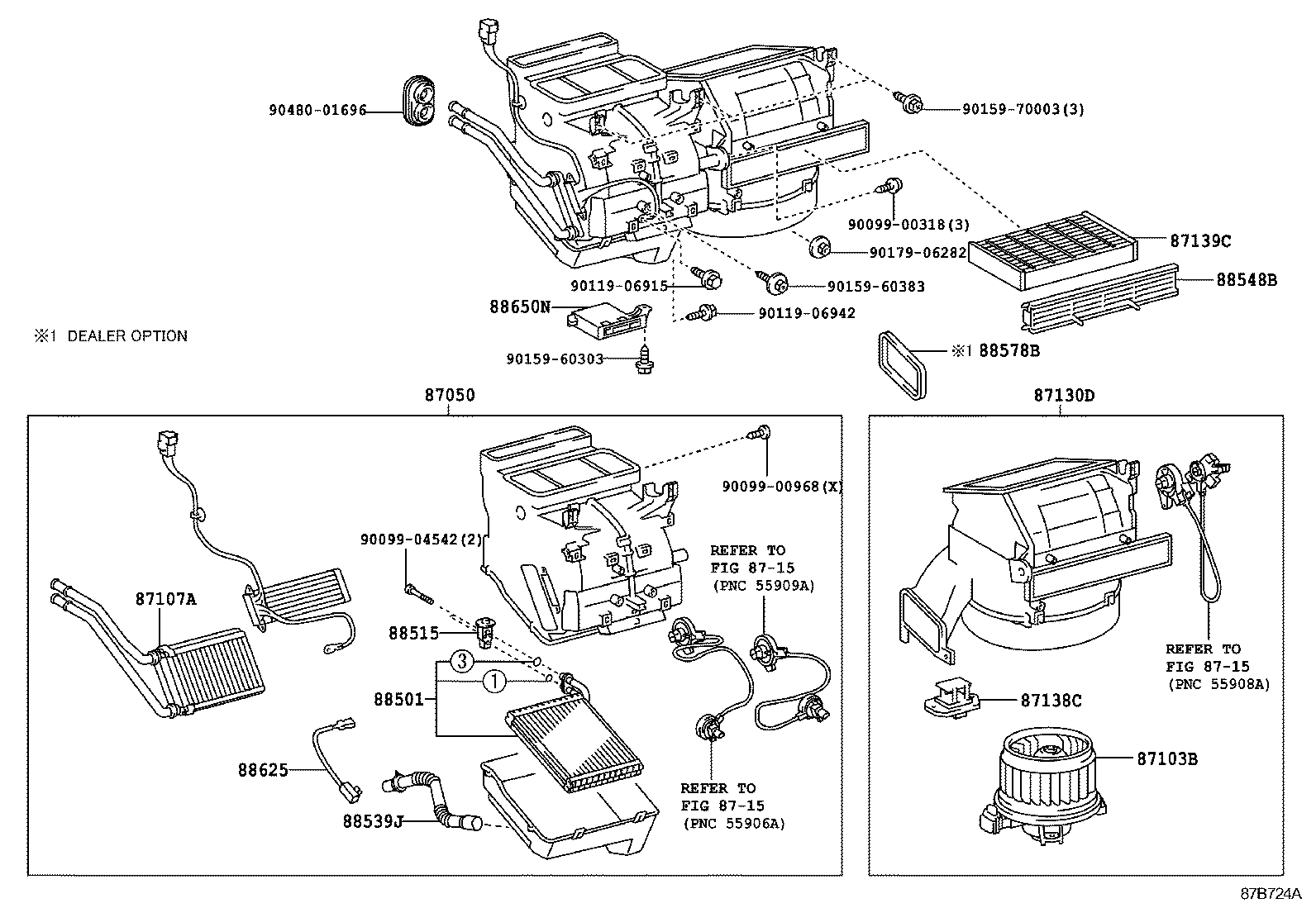

ILLUST NO. 1 OF 2(1108- )LHD
MANUAL---COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52230 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-52221 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87050-52230 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-52102 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-52063 |
KSP130,NSP130..LHD |
1 | ||
| 87050-52102 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52141 |
KSP130,NSP130..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
KSP130,NSP130 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52132 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-52092 |
KSP130,NSP130..LHD |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
KSP130,NSP130 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
KSP130,NSP130 POLLEN FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52102 |
KSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88501-52102 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88501-52103 |
KSP130,NSP130 |
1 | ||
| 88501-52102 |
KSP130,NSP130 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
KSP130,NSP130 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52040 |
KSP130,NSP130..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP130,NSP130 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-52100 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88578-52100 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KSP130,NSP130 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52680 |
KSP130,NSP130..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52680 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52720 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52680 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52680 |
KSP130,NSP130 |
1 | ||
| 88650-52880 |
KSP130,NSP130..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52720 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52700 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52880 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52880 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52880 |
KSP130,NSP130..R FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52720 |
KSP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||

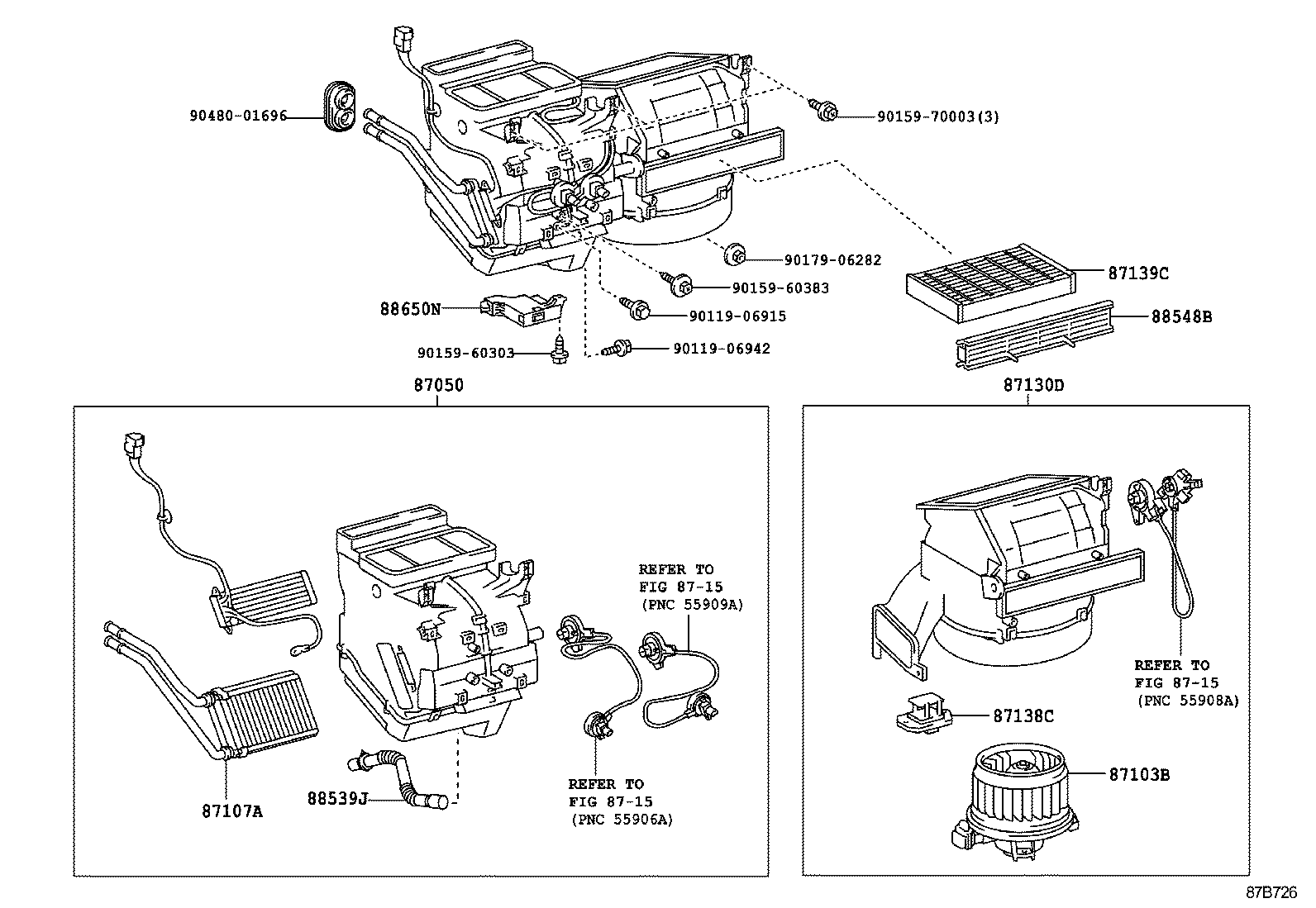

ILLUST NO. 1 OF 2(1108- )LHD
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52230 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-52221 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87050-52230 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-52102 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-52063 |
KSP130,NSP130..LHD |
1 | ||
| 87050-52102 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52141 |
KSP130,NSP130..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
KSP130,NSP130 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52132 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-52092 |
KSP130,NSP130..LHD |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
KSP130,NSP130 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
KSP130,NSP130 POLLEN FILTER |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52040 |
KSP130,NSP130..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP130,NSP130 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52680 |
KSP130,NSP130..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52680 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52720 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52680 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52680 |
KSP130,NSP130 |
1 | ||
| 88650-52880 |
KSP130,NSP130..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52720 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52700 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52880 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52880 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52880 |
KSP130,NSP130..R FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52720 |
KSP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1108- )LHD
W/O(AIR CONDITIONER)---COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52230 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-52221 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87050-52230 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87050-52102 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87050-52063 |
KSP130,NSP130..LHD |
1 | ||
| 87050-52102 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52141 |
KSP130,NSP130..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
KSP130,NSP130 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52132 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87130-52092 |
KSP130,NSP130..LHD |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 87130-52132 |
KSP130,NSP130..LHD FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
KSP130,NSP130 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
KSP130,NSP130 POLLEN FILTER |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52040 |
KSP130,NSP130..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP130,NSP130 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52680 |
KSP130,NSP130..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52680 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52720 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52680 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52680 |
KSP130,NSP130 |
1 | ||
| 88650-52880 |
KSP130,NSP130..LHD..R COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52720 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52700 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| 88650-52880 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MANUAL A/C |
1 | ||
| 88650-52690 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52880 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52880 |
KSP130,NSP130..R FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88650-52720 |
KSP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))&AIR CONDITIONER COMPRESSOR-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||

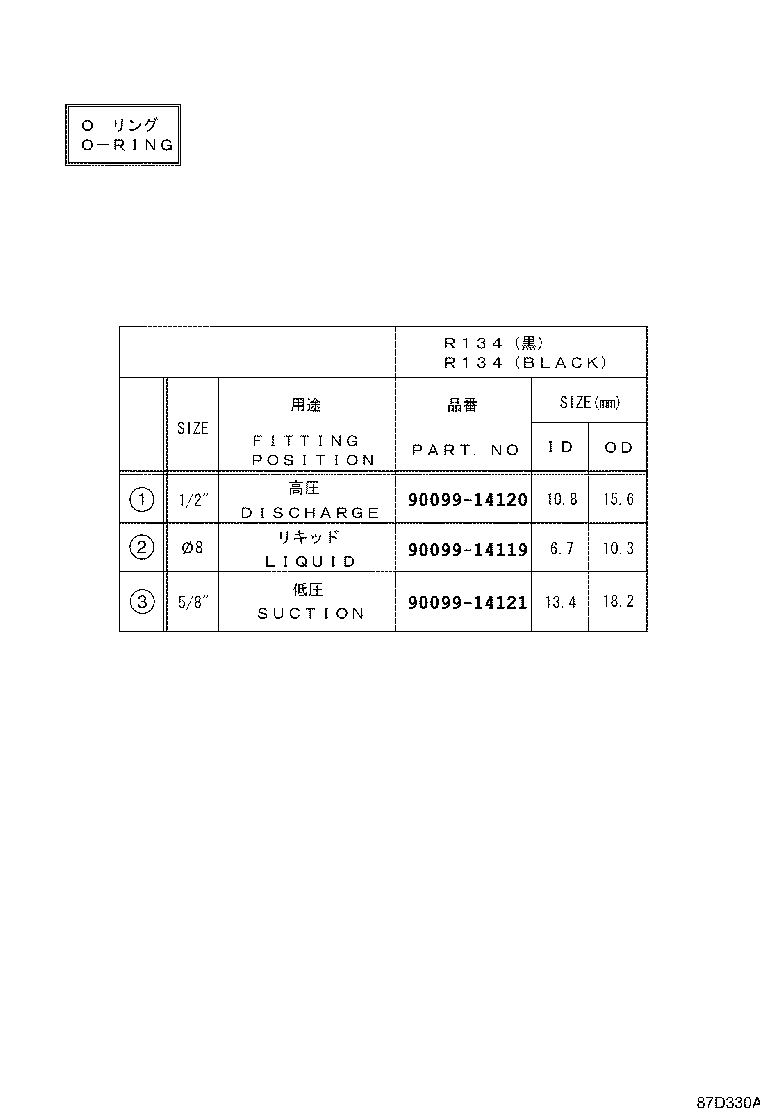

ILLUST NO. 2 OF 2(1108- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
