KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

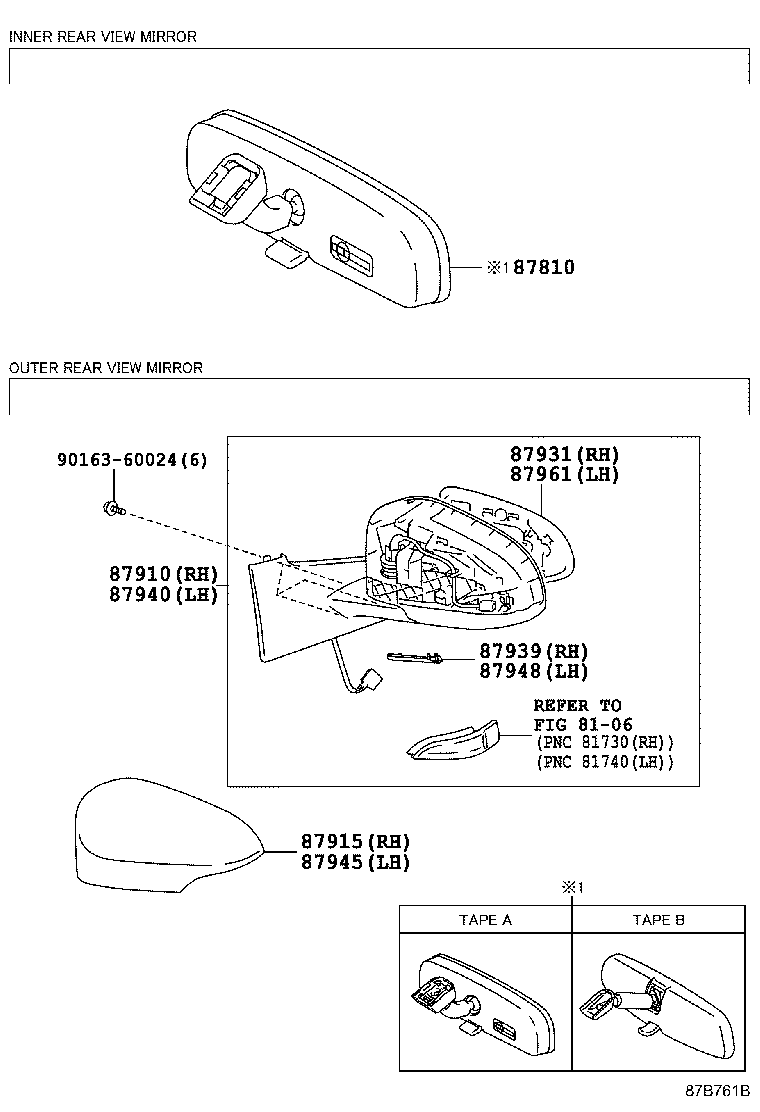

Click highlighted areas on diagram

diagram 8106 87810 87910 87915 87931 87939 87940 87945 87948 87961 9016360024
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-AA011

KSP130,NSP130

TYPE B

 1
87810-52041

KSP130,NSP130

TYPE A

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-52C50

KSP130,NSP130..LHD..R

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)

 1
87910-52D50

KSP130,NSP130..LHD..R

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL MIRROR&MATERIAL COLOR(BLACK)

 1
87910-52D40

KSP130,NSP130..LHD

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-52150

KSP130,NSP130..R

NO PAINT REQ.

 1
87931 - OUTER MIRROR, RH
87931-52C50

KSP130,NSP130..R

OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)

 1
87931-52B90

KSP130,NSP130

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-52C30

KSP130,NSP130..LHD..R

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)

 1
87940-52D20

KSP130,NSP130..LHD

NO PAINT REQ.

 1
87940-52D30

KSP130,NSP130..LHD..R

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL MIRROR&MATERIAL COLOR(BLACK)

 1
87945 - COVER, OUTER MIRROR, LH
87945-52150

KSP130,NSP130..R

NO PAINT REQ.

 1
87961 - MIRROR OUTER, LH
87961-52C30

KSP130,NSP130..R

OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)

 1
87961-52B30

KSP130,NSP130

 1
Common parts
90163-60024
Linked diagrams
8106
