KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )LHD

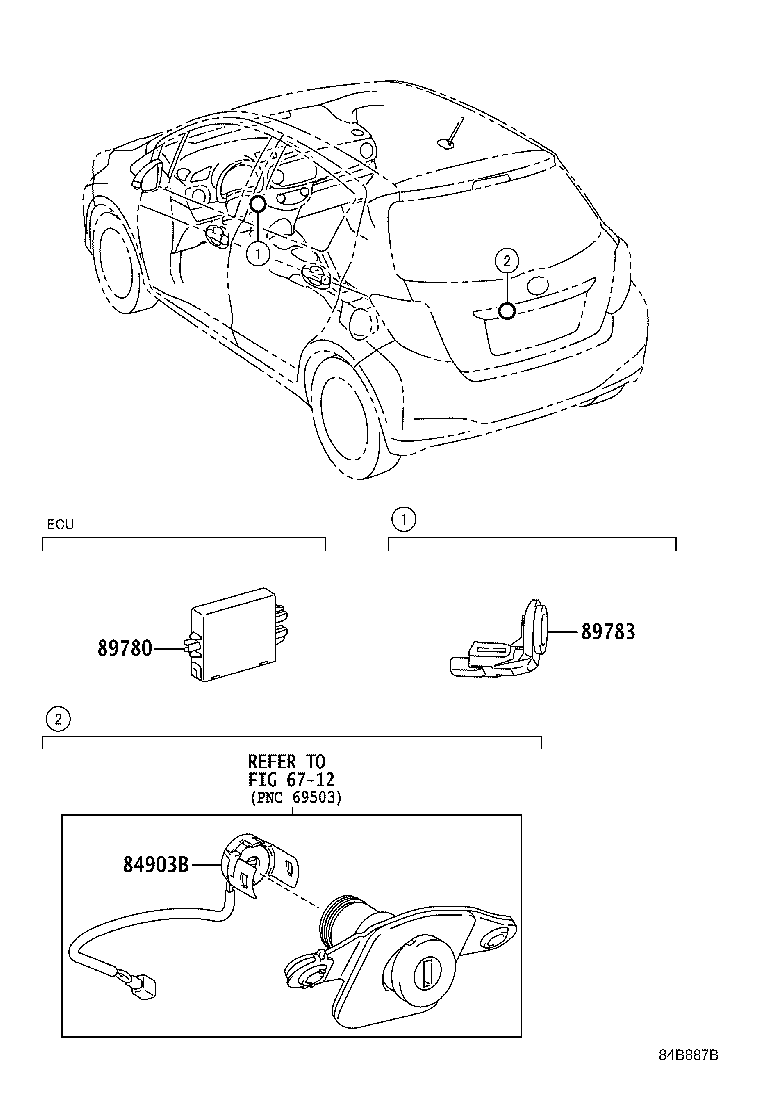

Click highlighted areas on diagram

diagram 6712 84903B 89780 89783
Part # Description Qty Price
84903B - SWITCH SUB-ASSY, DOOR UNLOCK
84903-52030

KSP130,NSP130..R

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-52110

KSP130,NSP130

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52060

KSP130,NSP130

 1
Linked diagrams
6712
