KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )KSP130..LHD

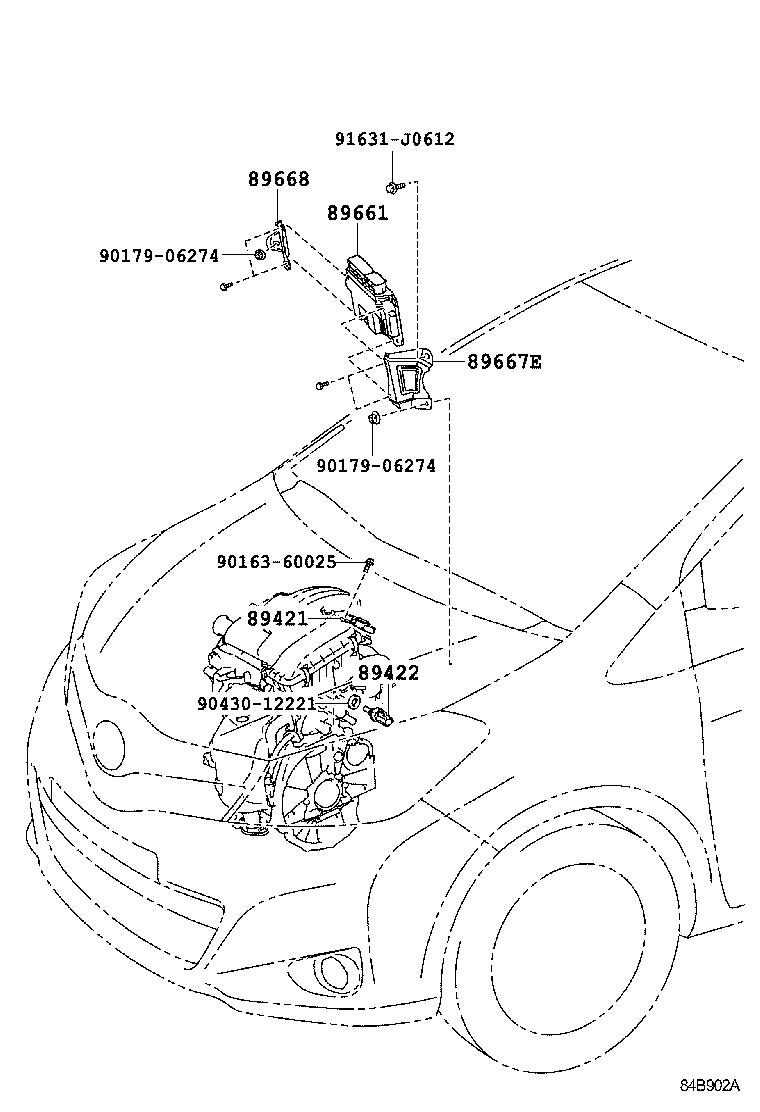

Click highlighted areas on diagram

diagram 89421 89422 89661 89667E 89668 9016360025 9017906274 9017906274 9043012221 91631J0612
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-52010

KSP130

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KSP130,NSP130

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DF20

KSP130

EXH.EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

 1
89661-0DF10

KSP130

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-52210

KSP130..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52230

KSP130..LHD

 1
Common parts
90163-60025
90179-06274
90430-12221
91631-J0612
