KSP130L-AHMRKW (2011)
Toyota Yaris (Jpp)

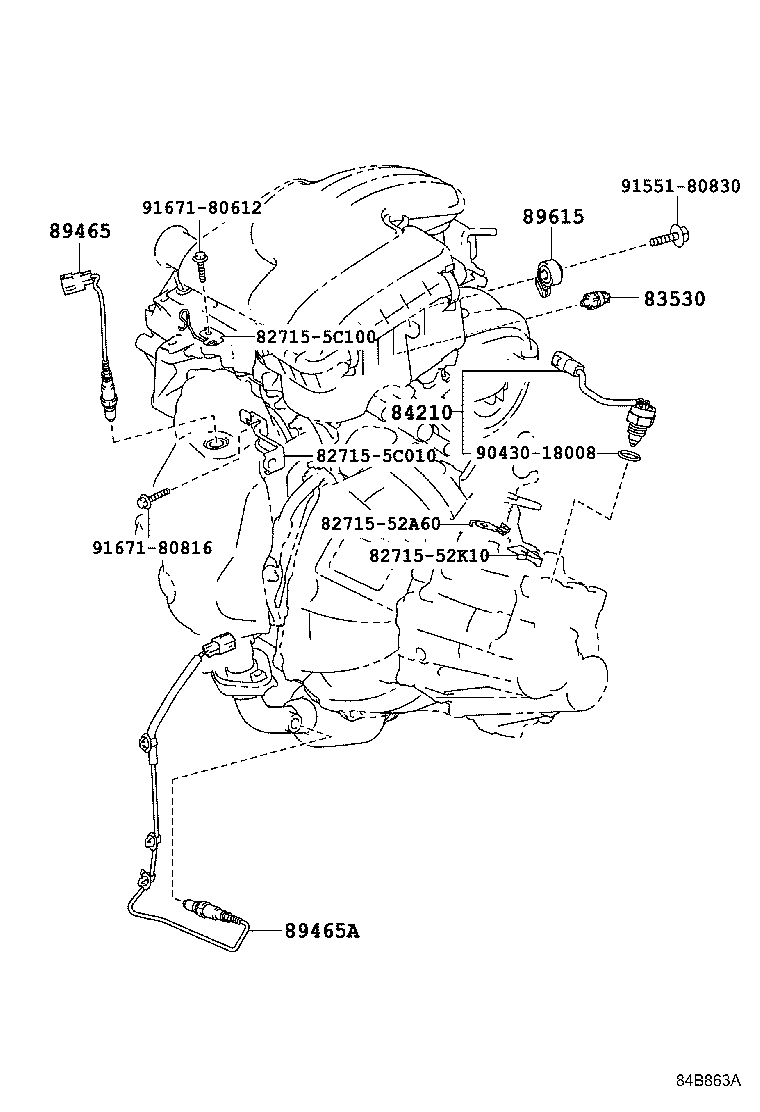

ILLUST NO. 1 OF 7(1108- )KSP130
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
KSP130,NSP130 YAZAKI |
1 | ||
| 83530-28020 |
KSP130,NSP130 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52030 |
KSP130 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0H010 |
KSP130 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-0D130 |
KSP130 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-0H010 |
KSP130 |
1 | ||
| Common parts | ||||
| 82715-52A60 | ||||
| 82715-52K10 | ||||
| 82715-5C010 | ||||
| 82715-5C100 | ||||
| 90430-18008 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||

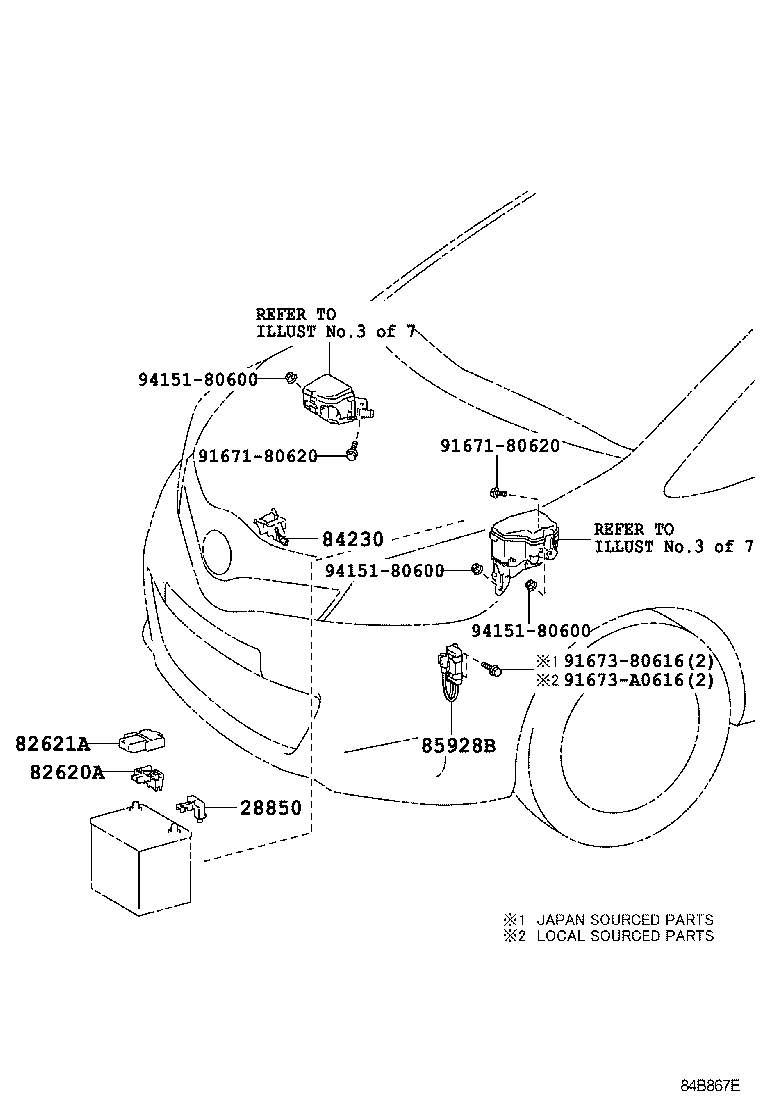

ILLUST NO. 2 OF 7(1108- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40010 |
1KRFE,1NRFE..KSP130,NSP130 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
KSP130,NSP130 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52140 |
KSP130,NSP130 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
KSP130,NSP130 |
1 | ||
| 85928-52030 |
KSP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 91673-80616 | ||||
| 91673-A0616 | ||||
| 94151-80600 | ||||

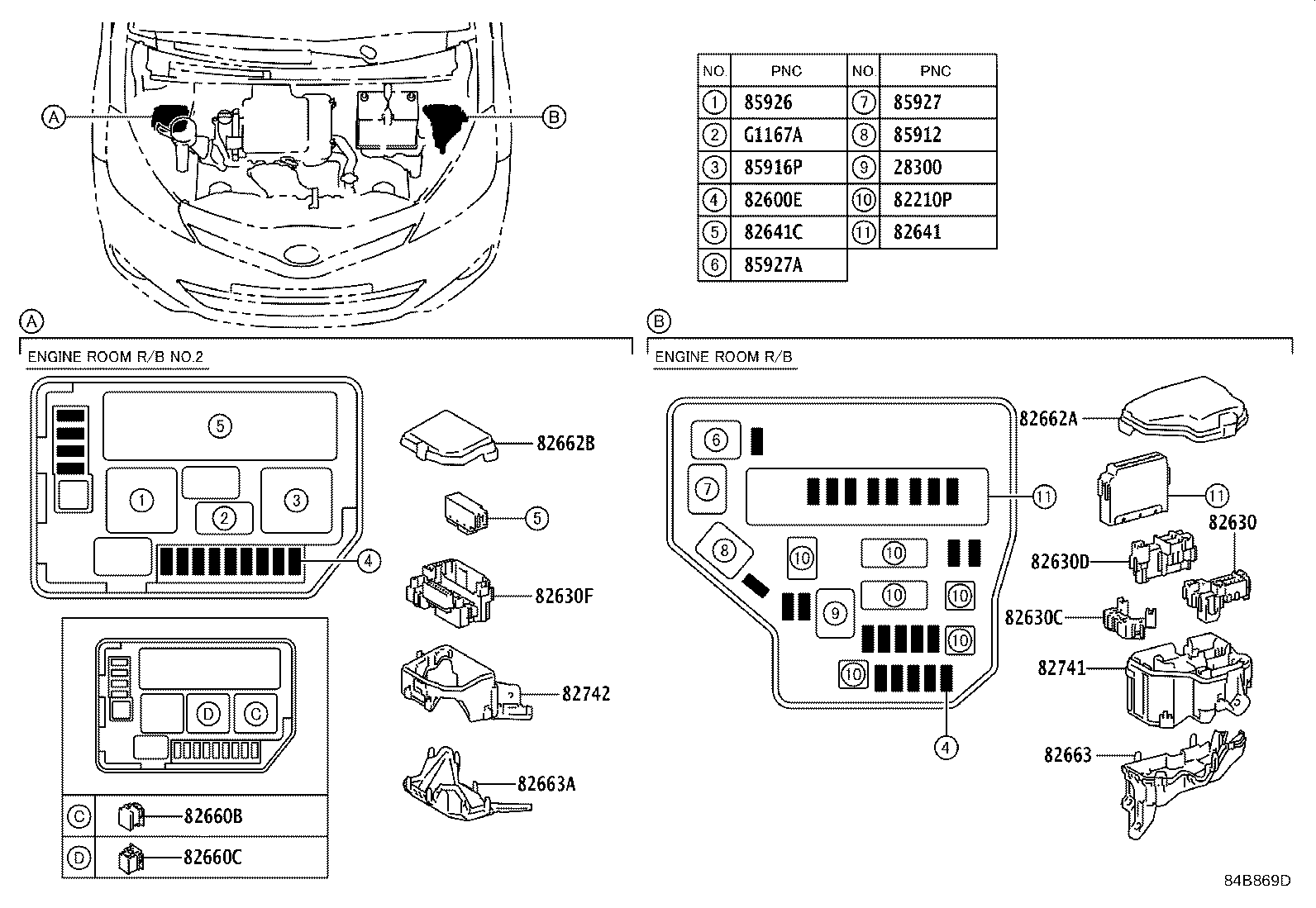

ILLUST NO. 3 OF 7(1108- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1KRFE,1NRFE..KSP130,NSP130 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
KSP130,NSP130 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
KSP130,NSP130 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08300 |
KSP130,NSP130 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
KSP130,NSP130 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
KSP130,NSP130 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
KSP130,NSP130 25A,MINI FUSE |
1 | ||
| 90982-09022 |
KSP130,NSP130 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
KSP130,NSP130 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
KSP130,NSP130 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
KSP130,NSP130 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
KSP130,NSP130 5A,MINI FUSE,TAN |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-52010 |
KSP130,NSP130 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-52020 |
KSP130,NSP130 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52030 |
KSP130,NSP130 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52040 |
KSP130,NSP130 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-52020 |
KSP130,NSP130 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-52060 |
KSP130,NSP130..LHD..R OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
KSP130,NSP130 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52480 |
KSP130,NSP130 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52660 |
KSP130,NSP130 |
1 | ||
| 82662-52661 |
KSP130,NSP130 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52080 |
KSP130,NSP130 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52090 |
KSP130,NSP130 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52070 |
KSP130,NSP130 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52080 |
KSP130,NSP130 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
KSP130,NSP130 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KSP130,NSP130 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
KSP130,NSP130 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
KSP130,NSP130 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
KSP130,NSP130 |
1 | ||

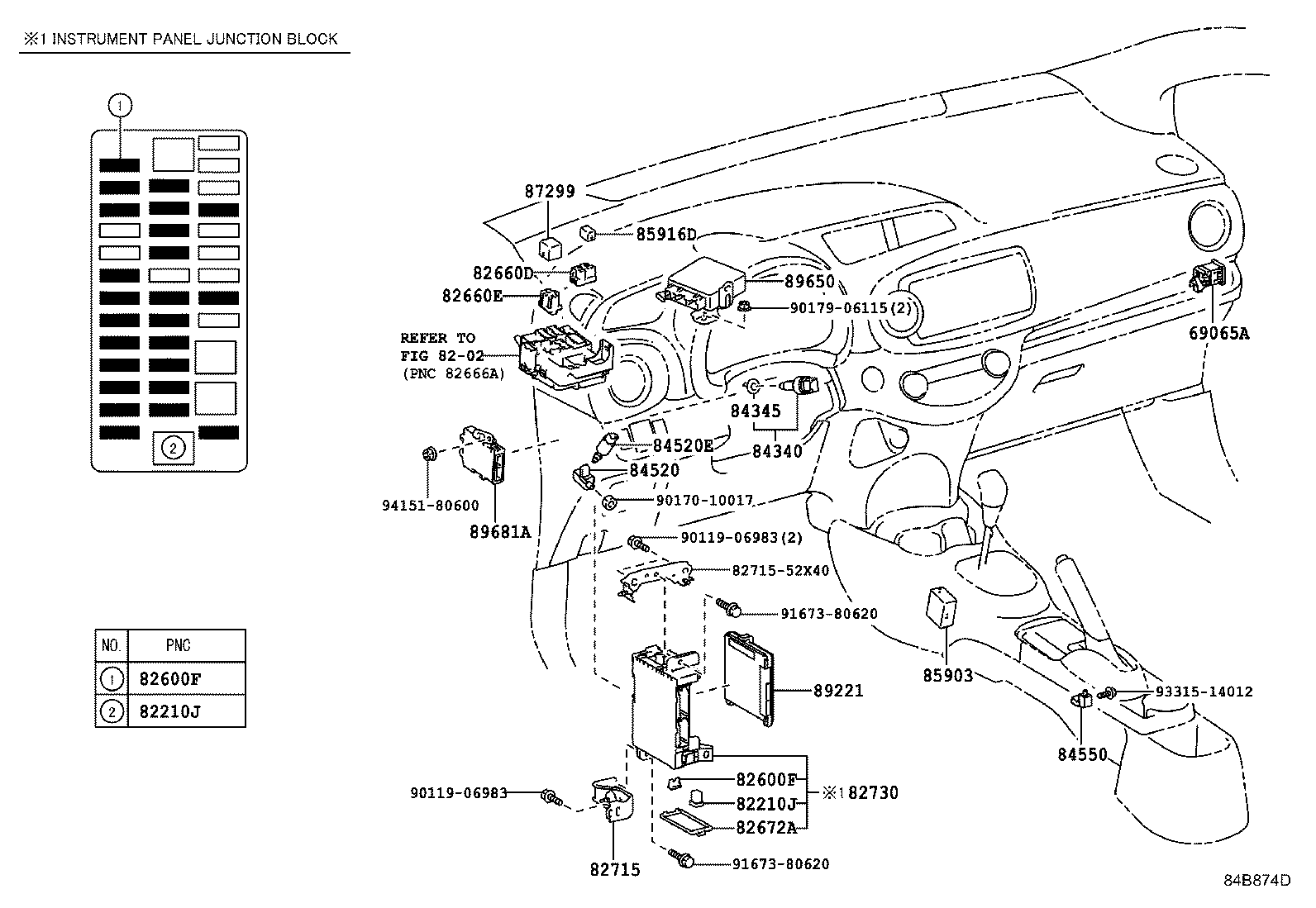

ILLUST NO. 4 OF 7(1108- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-52040 |
KSP130,NSP130 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
KSP130,NSP130 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
KSP130,NSP130 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
KSP130,NSP130 25A,MINI FUSE |
1 | ||
| 90982-09019 |
KSP130,NSP130 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
KSP130,NSP130 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
KSP130,NSP130 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KSP130,NSP130 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
KSP130,NSP130 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
KSP130,NSP130 25A,MINI FUSE |
1 | ||
| 90982-09019 |
KSP130,NSP130 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
KSP130,NSP130 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
KSP130,NSP130 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KSP130,NSP130 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
KSP130,NSP130 20A,MINI FUSE,YELLOW |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
KSP130,NSP130 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52100 |
KSP130,NSP130 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52020 |
KSP130,NSP130 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-52X50 |
KSP130,NSP130..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52L70 |
KSP130,NSP130 |
1 | ||
| 82730-52N60 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
KSP130,NSP130 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KSP130,NSP130 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KSP130,NSP130..MTM |
1 | ||
| 84520E - SWITCH ASSY, CLUTCH START, NO.2 | ||||
| 88280-42010 |
KSP130,NSP130..LHD..MTM |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
KSP130,NSP130 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
KSP130,NSP130 FRONT FOG LAMP-WITH |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
KSP130,NSP130 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0D010 |
KSP130,NSP130..LHD |
1 | ||
| 89220-0D050 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52760 |
KSP130,NSP130..LHD |
1 | ||
| 89650-52770 |
KSP130..LHD..R TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC. |
1 | ||
| 89650-52770 |
KSP130,NSP130..LHD..R TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC. |
1 | ||
| 89650-52761 |
KSP130,NSP130..LHD |
1 | ||
| 89650-52771 |
KSP130..LHD..R TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC. |
1 | ||
| 89650-52771 |
KSP130,NSP130..LHD..R TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC. |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-52050 |
KSP130 |
1 | ||
| Common parts | ||||
| 82715-52X40 | ||||
| 90119-06983 | ||||
| 90170-10017 | ||||
| 90179-06115 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 7(1108- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-52230 |
KSP130,NSP130..LHD..R N1 PACKAGE |
1 | ||
| 83950-52210 |
KSP130,NSP130 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52090 |
KSP130,NSP130 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52060 |
KSP130,NSP130..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
KSP130,NSP130 |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
KSP130,NSP130 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-52080 |
KSP130,NSP130 VSC-WITHOUT |
1 | ||
| 84988-52080 |
KSP130,NSP130 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
KSP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KSP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KSP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
KSP130,NSP130 |
1 | ||
| 85530-42010 |
KSP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KSP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52051 |
KSP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85535-52051 |
KSP130,NSP130 |
1 | ||

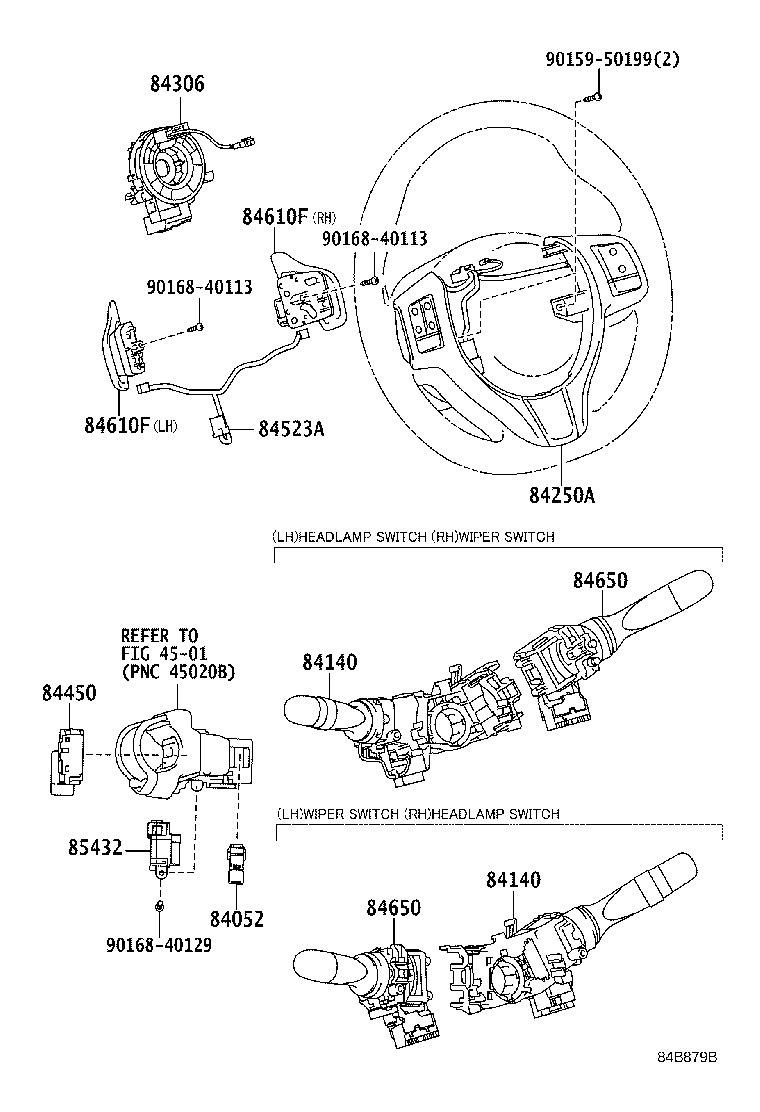

ILLUST NO. 6 OF 7(1108- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
KSP130,NSP130 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42091 |
KSP130,NSP130 |
1 | ||
| 84140-42101 |
KSP130,NSP130 FRONT FOG LAMP-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42091 |
KSP130,NSP130 |
1 | ||
| 84140-42101 |
KSP130,NSP130 FRONT FOG LAMP-WITH |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52130C1 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-74020 |
KSP130,NSP130 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52020 |
KSP130,NSP130 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52230 |
KSP130,NSP130 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52230 |
KSP130,NSP130 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(1108- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52230 |
KSP130,NSP130 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52230 |
KSP130,NSP130 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KSP130,NSP130 TYPE B:REFER ILLUST. |
2 | ||
| 84231-52010 |
KSP130,NSP130 TYPE A:REFER ILLUST. |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KSP130,NSP130 TYPE B:REFER ILLUST. |
2 | ||
| 84231-52010 |
KSP130,NSP130 TYPE A:REFER ILLUST. |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
KSP130,NSP130 TYPE A:REFER ILLUST. |
2 | ||
| 84231-53010 |
KSP130,NSP130 TYPE B:REFER ILLUST. |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
KSP130,NSP130 TYPE A:REFER ILLUST. |
2 | ||
| 84231-53010 |
KSP130,NSP130 TYPE B:REFER ILLUST. |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
KSP130,NSP130 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
KSP130,NSP130 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52460 |
KSP130,NSP130..LHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52460 |
KSP130,NSP130..LHD |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
KSP130,NSP130 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12250 |
KSP130,NSP130..R POWER WINDOW-WITHOUT |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12250 |
KSP130,NSP130..R POWER WINDOW-WITHOUT |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
