KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF 7(1108- )KSP130

Click highlighted areas on diagram

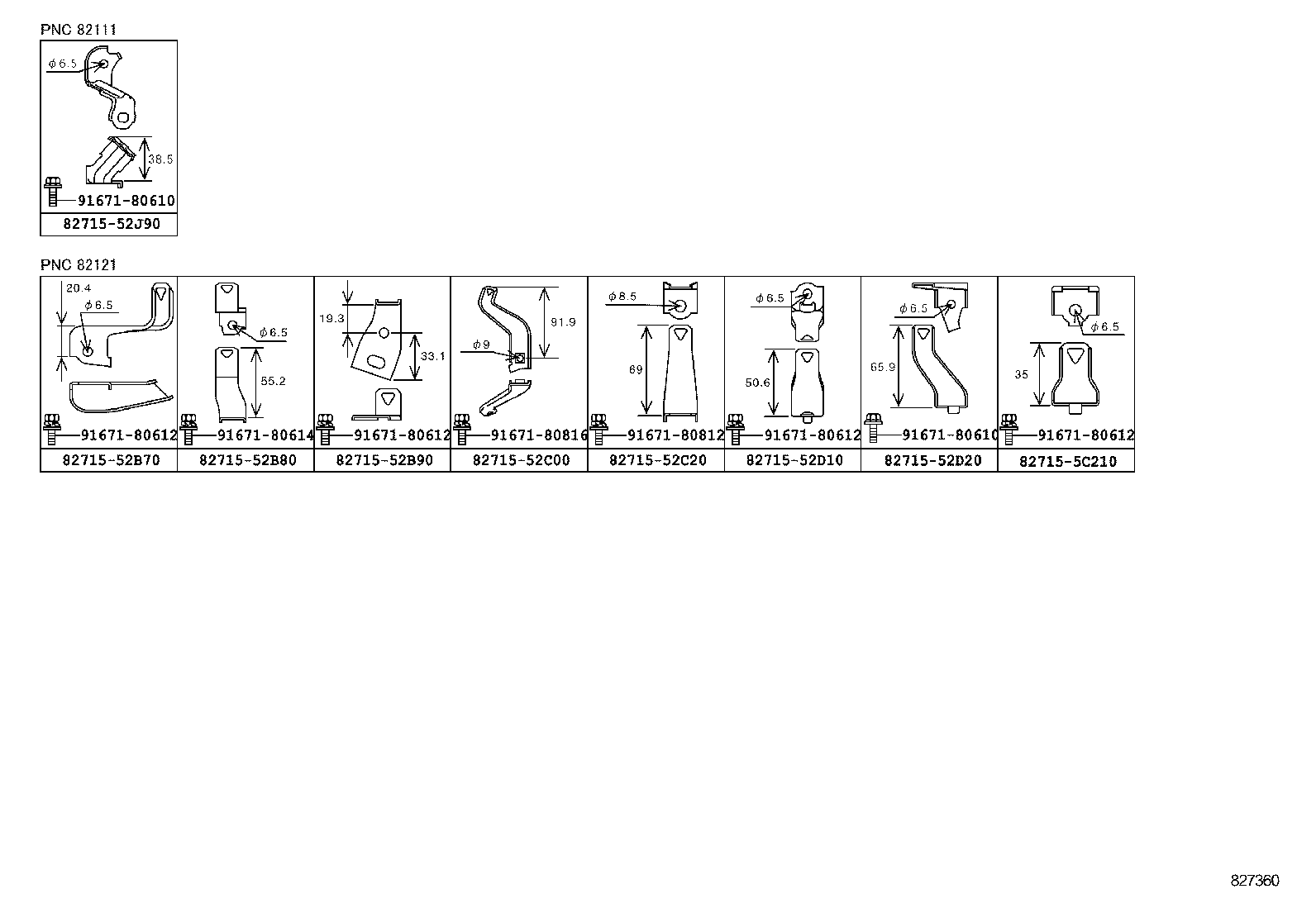

CLAMP & BRACKET

diagram 8271552B70 8271552B80 8271552B90 8271552C00 8271552C20 8271552D10 8271552D20 8271552J90 827155C210 9167180610 9167180610 9167180612 9167180612 9167180612 9167180612 9167180614 9167180812 9167180816
Part # Description Qty Price
Common parts
82715-52B70
82715-52B80
82715-52B90
82715-52C00
82715-52C20
82715-52D10
82715-52D20
82715-52J90
82715-5C210
91671-80610
91671-80612
91671-80614
91671-80812
91671-80816

ILLUST NO. 1 OF 7(1108- )LHD

Click highlighted areas on diagram

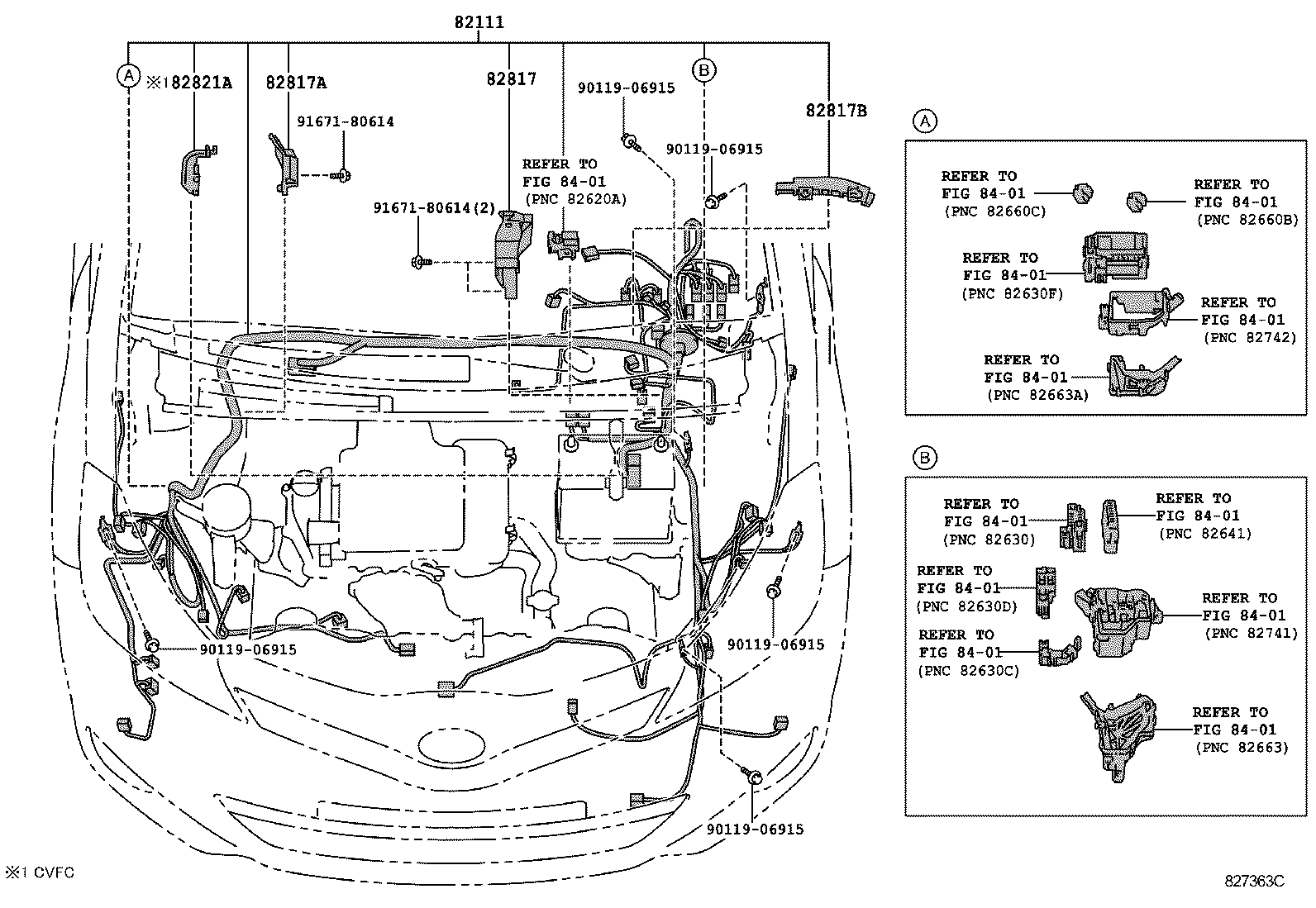

ENGINE ROOM

diagram 82111 82817 82817A 82817B 82821A 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9011906915 9011906915 9167180614 9167180614
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-5CF90

KSP130..LHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-52A20

KSP130,NSP130

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52C00

KSP130,NSP130

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-52B70

KSP130,NSP130..LHD

 1
Common parts
90119-06915
91671-80614
Linked diagrams
8401

ILLUST NO. 3 OF 7(1108- )LHD

Click highlighted areas on diagram

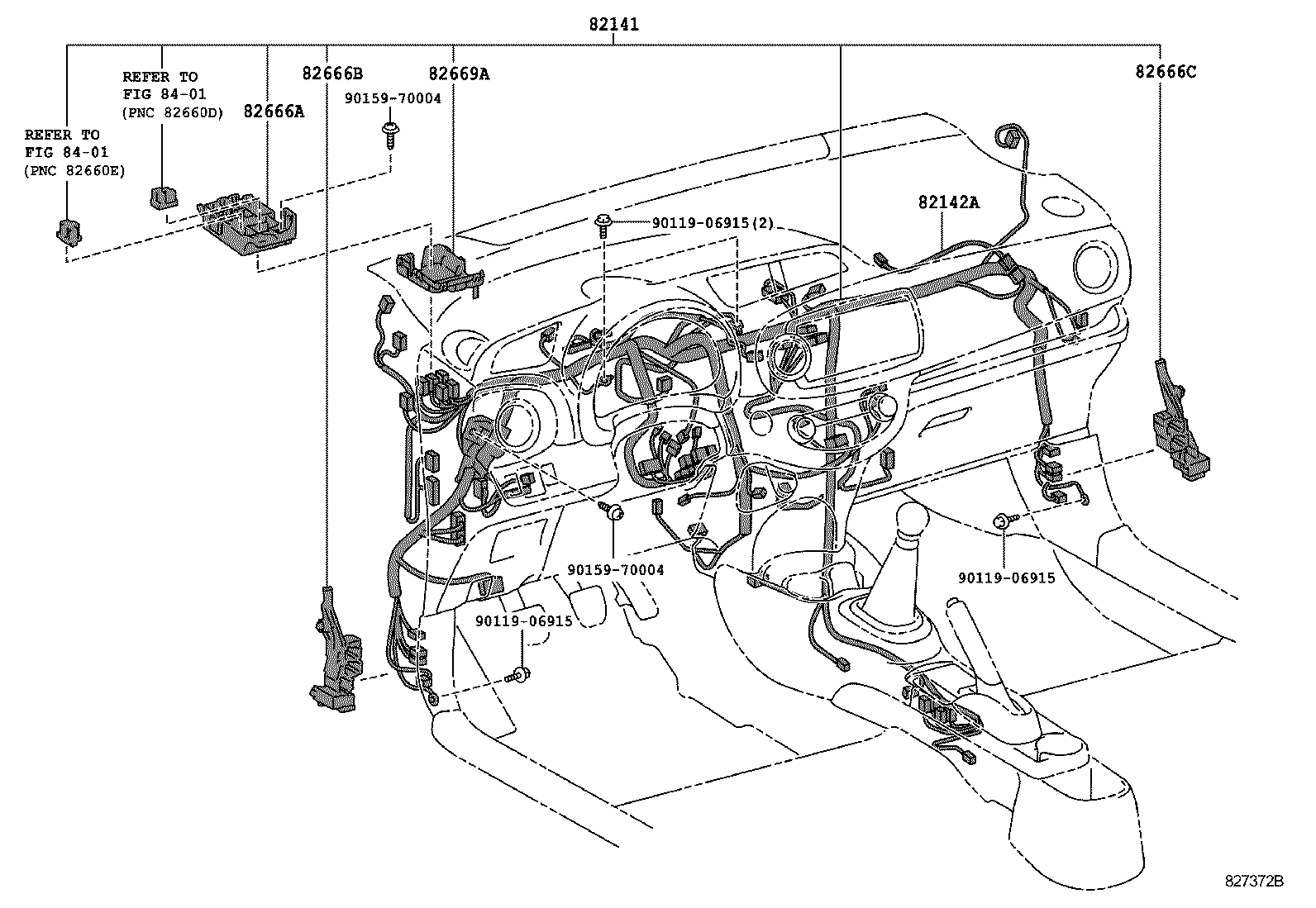

INSTRUMENT PANEL

diagram 82141 82142A 82666A 82666B 82666C 82669A 8401 8401 9011906915 9011906915 9011906915 9015970004 9015970004
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-5DS20

KSP130..LHD..R

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-52090

KSP130,NSP130

 1
82666A - HOLDER, CONNECTOR NO.2
82666-52180

KSP130,NSP130..LHD

 1
82666B - HOLDER, CONNECTOR NO.3
82666-52160

KSP130,NSP130

 1
82666C - HOLDER, CONNECTOR NO.4
82666-52170

KSP130,NSP130

 1
82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-52020

KSP130,NSP130..LHD

 1
Common parts
90119-06915
90159-70004
Linked diagrams
8401

ILLUST NO. 2 OF 7(1108- )KSP130..LHD

Click highlighted areas on diagram

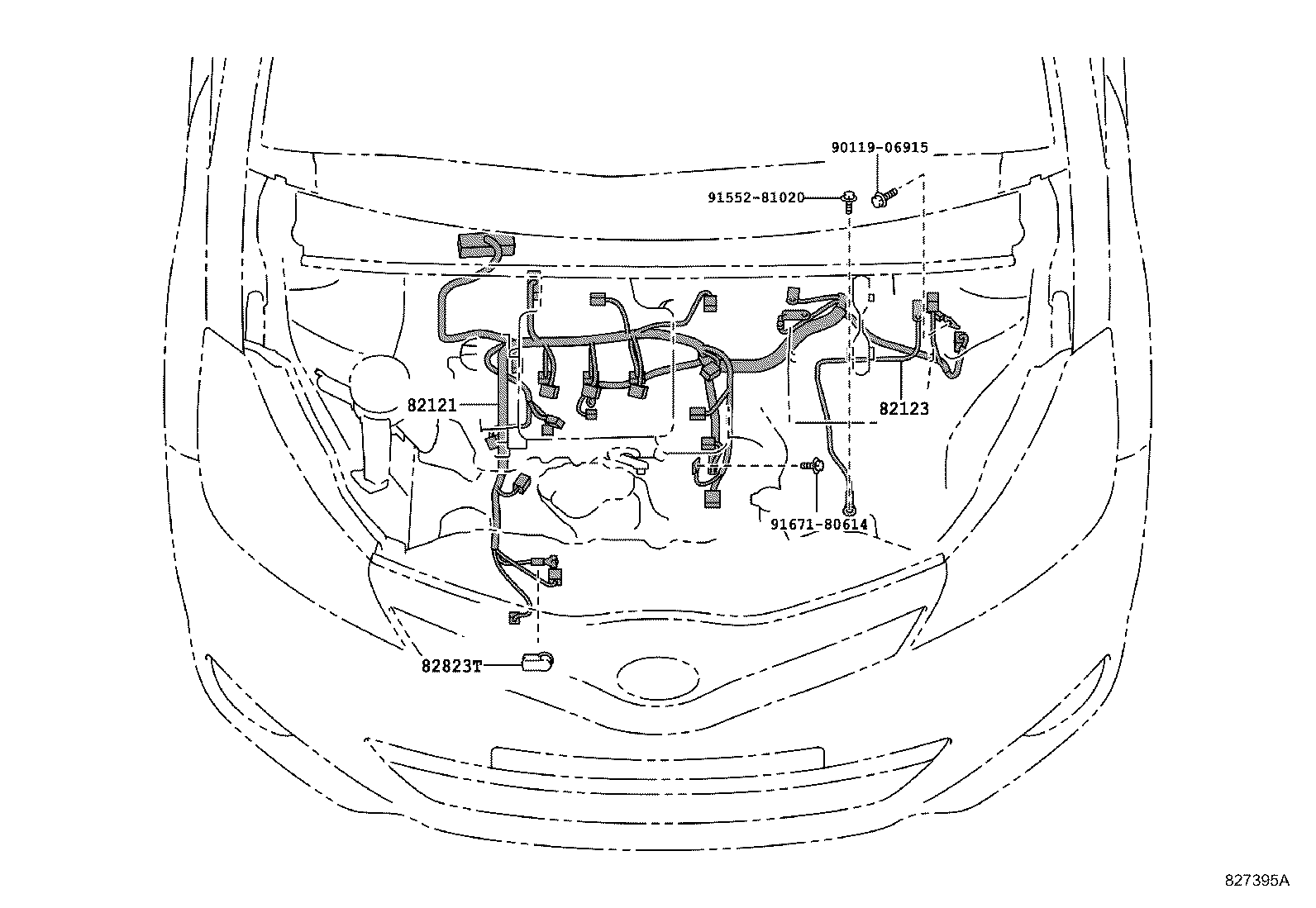

ENGINE

diagram 82121 82123 82823T 9011906915 9155281020 9167180614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-52M40

KSP130..LHD

 1
82123 - WIRE, ENGINE, NO.3
82123-52350

KSP130

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NSP130..LHD..CVFC;KSP130,NSP130..MTM

 1
Common parts
90119-06915
91552-81020
91671-80614

ILLUST NO. 4 OF 7(1108- )

Click highlighted areas on diagram

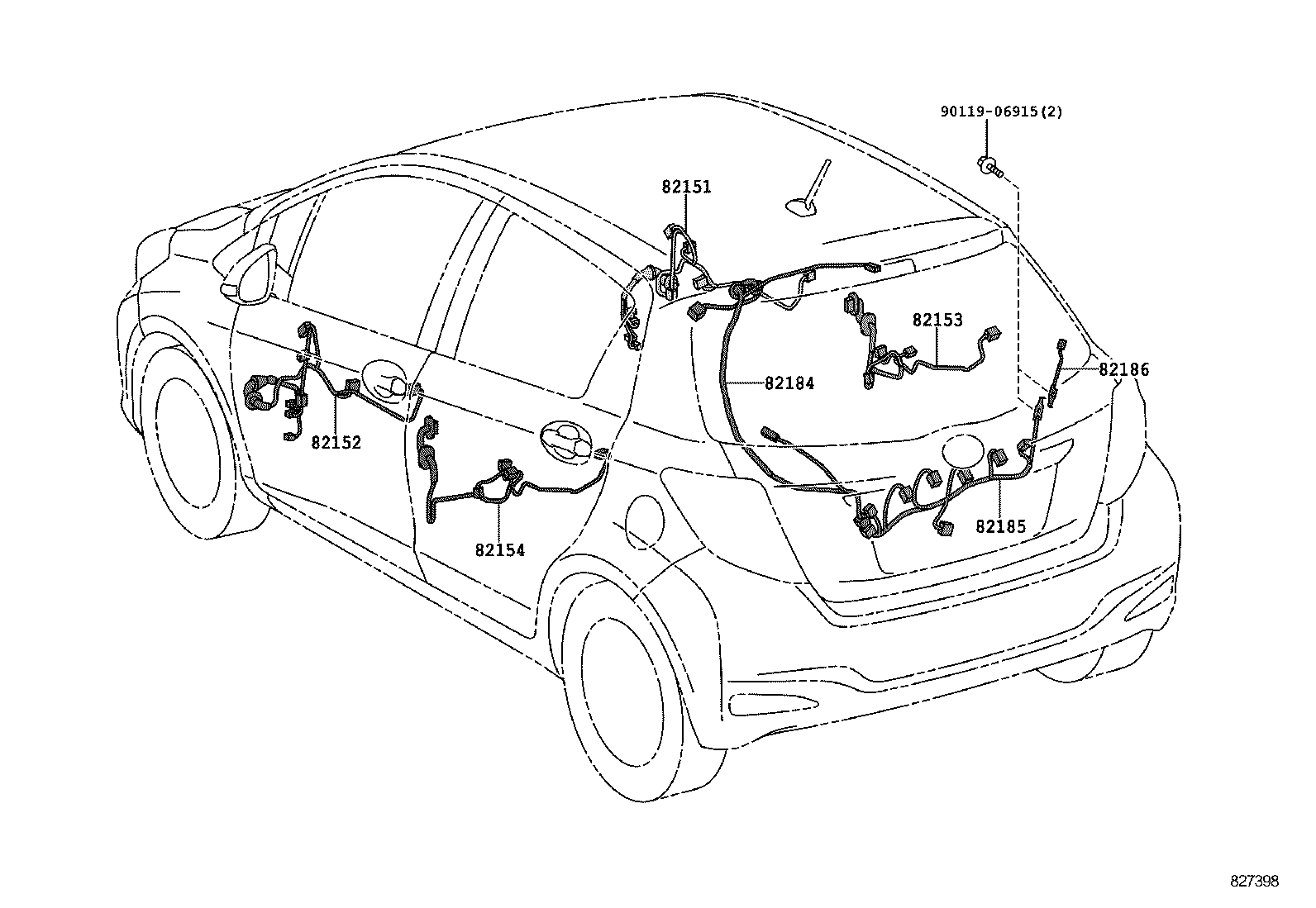

DOOR

diagram 82151 82152 82153 82154 82184 82185 82186 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-52Q50

KSP130,NSP130..LHD..R

POWER WINDOW-WITHOUT

 1
82151-52Q90

KSP130,NSP130..LHD

 1
82152 - WIRE, FRONT DOOR, LH
82152-52M70

KSP130,NSP130..LHD..R

POWER WINDOW-WITHOUT

 1
82152-52N10

KSP130,NSP130..LHD

 1
82153 - WIRE, REAR DOOR, NO.1
82153-52680

KSP130,NSP130

 1
82154 - WIRE, REAR DOOR, NO.2
82154-52370

KSP130,NSP130

 1
82184 - WIRE, BACK DOOR, NO.1
82184-52560

KSP130,NSP130

 1
82185 - WIRE, BACK DOOR, NO.2
82185-52700

KSP130,NSP130..R

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-52180

KSP130,NSP130

 1
Common parts
90119-06915

ILLUST NO. 5 OF 7(1108- )

Click highlighted areas on diagram

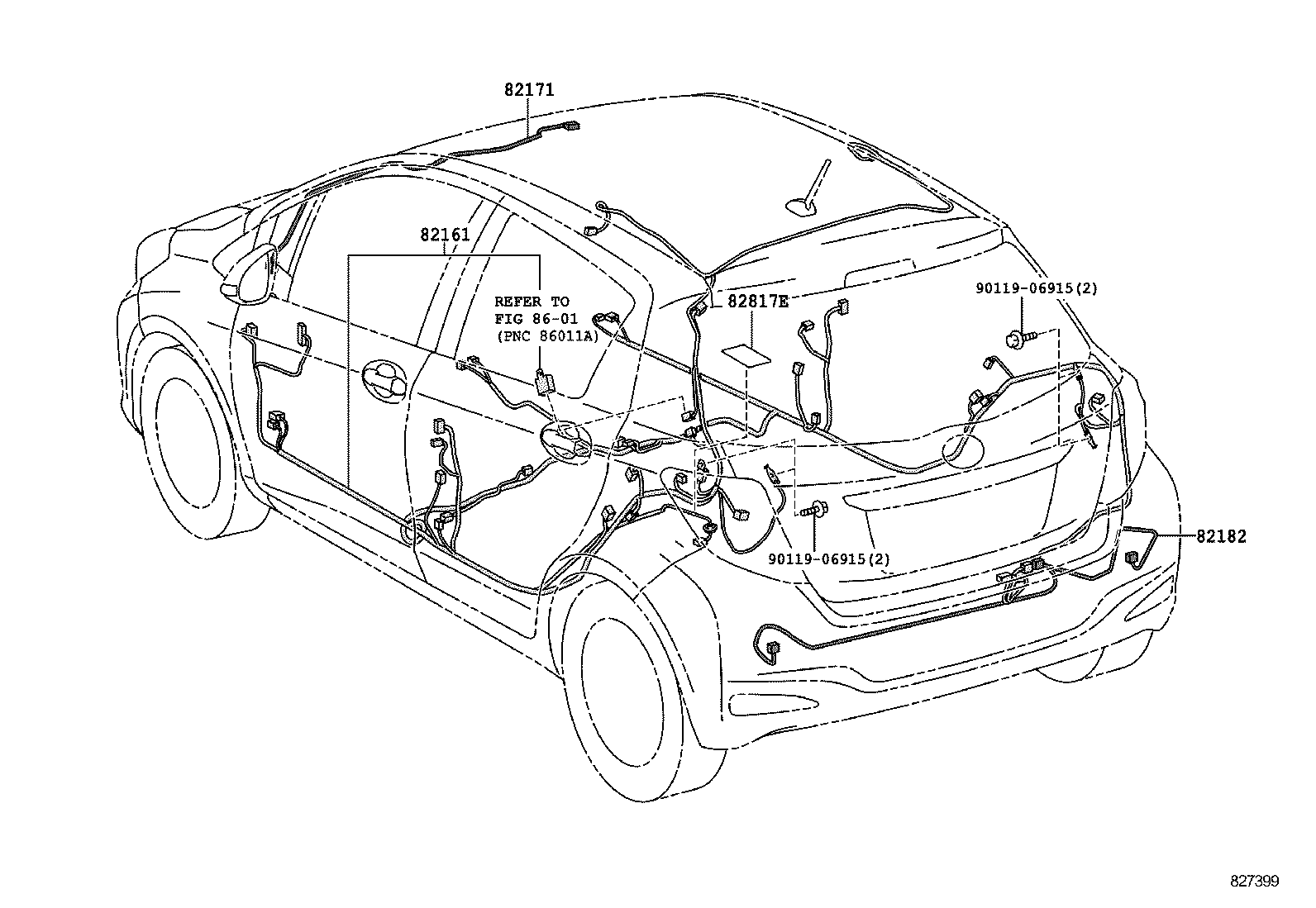

FLOOR & ROOF

diagram 82161 82171 82182 82817E 8601 9011906915 9011906915
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-5CE40

KSP130,NSP130..LHD..R

 1
82171 - WIRE, ROOF, NO.1
82171-52541

KSP130,NSP130

 1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-52270

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC

 1
82182-52250

KSP130,NSP130..LHD

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52710

KSP130,NSP130

 1
82817-52710

KSP130,NSP130..LHD..R

N1 PACKAGE

 3
Common parts
90119-06915
Linked diagrams
8601

ILLUST NO. 7 OF 7(1108- )

Click highlighted areas on diagram

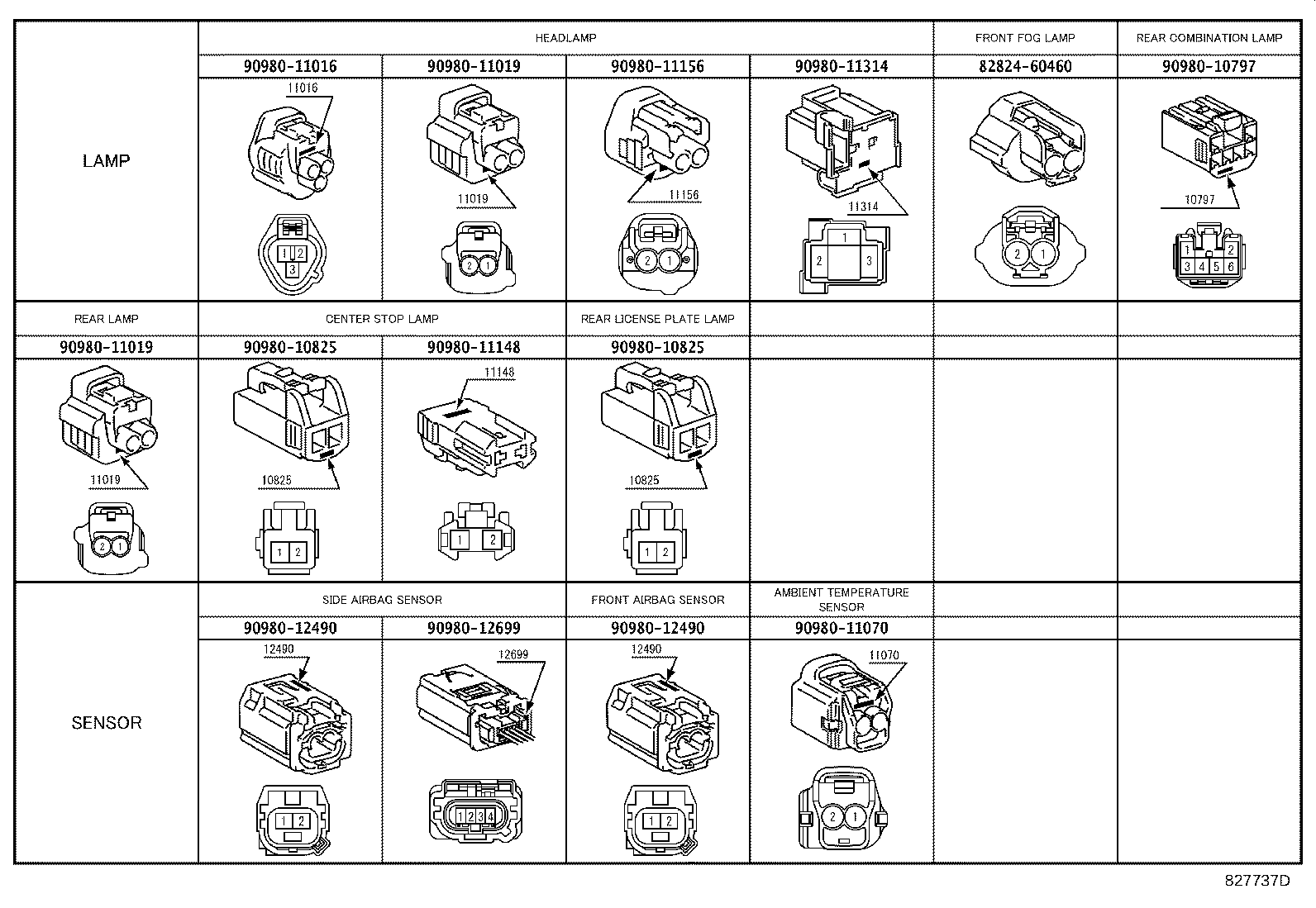

CONNECTOR 1/2

diagram 8282460460 9098010797 9098010825 9098010825 9098011016 9098011019 9098011019 9098011070 9098011148 9098011156 9098011314 9098012490 9098012490 9098012699
Part # Description Qty Price
Common parts
82824-60460
90980-10797
90980-10825
90980-11016
90980-11019
90980-11070
90980-11148
90980-11156
90980-11314
90980-12490
90980-12699

ILLUST NO. 7 OF 7(1108- )

Click highlighted areas on diagram

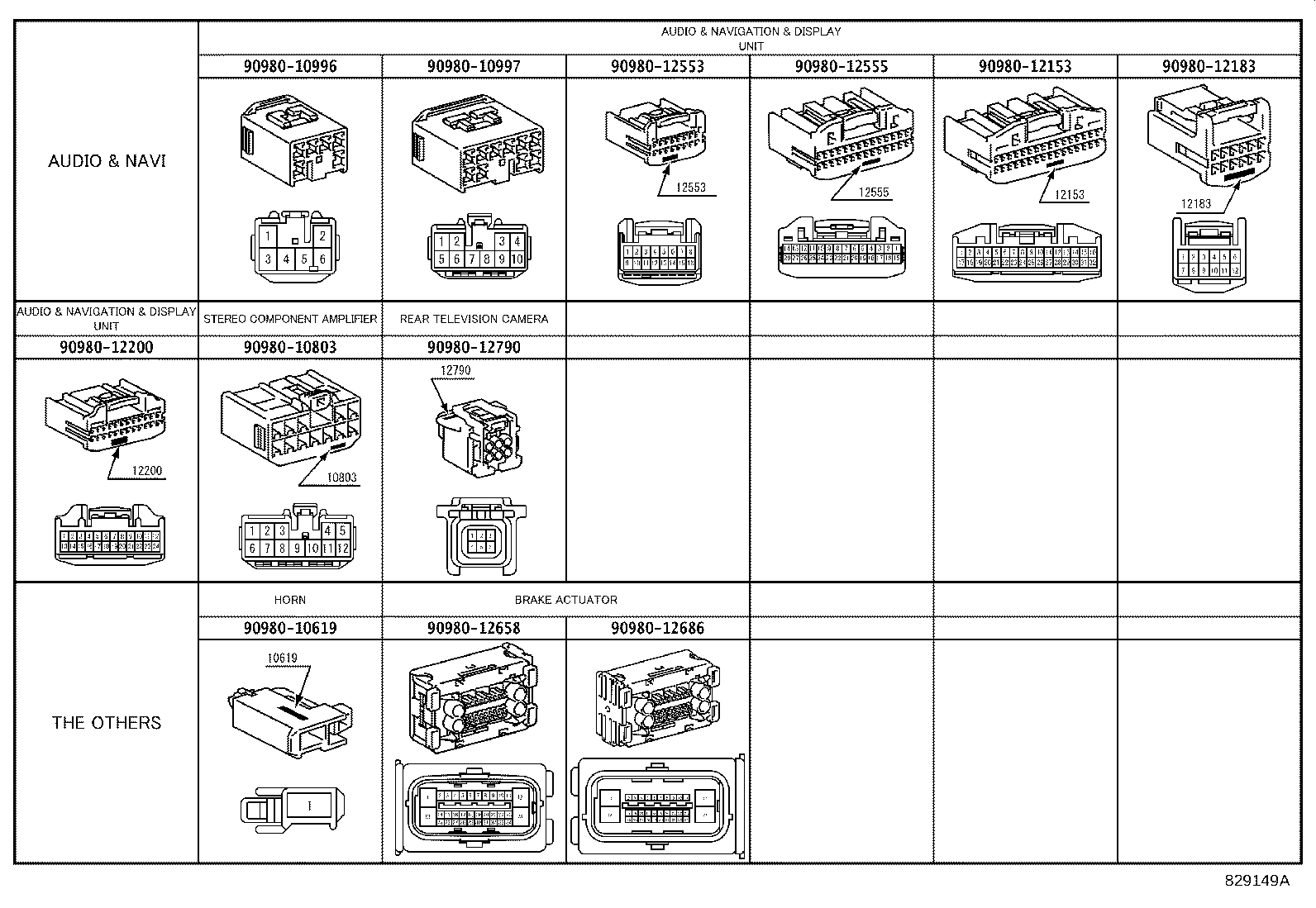

CONNECTOR 2/2

diagram 9098010619 9098010803 9098010996 9098010997 9098012153 9098012183 9098012200 9098012553 9098012555 9098012658 9098012686 9098012790
Part # Description Qty Price
Common parts
90980-10619
90980-10803
90980-10996
90980-10997
90980-12153
90980-12183
90980-12200
90980-12553
90980-12555
90980-12658
90980-12686
90980-12790
