KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

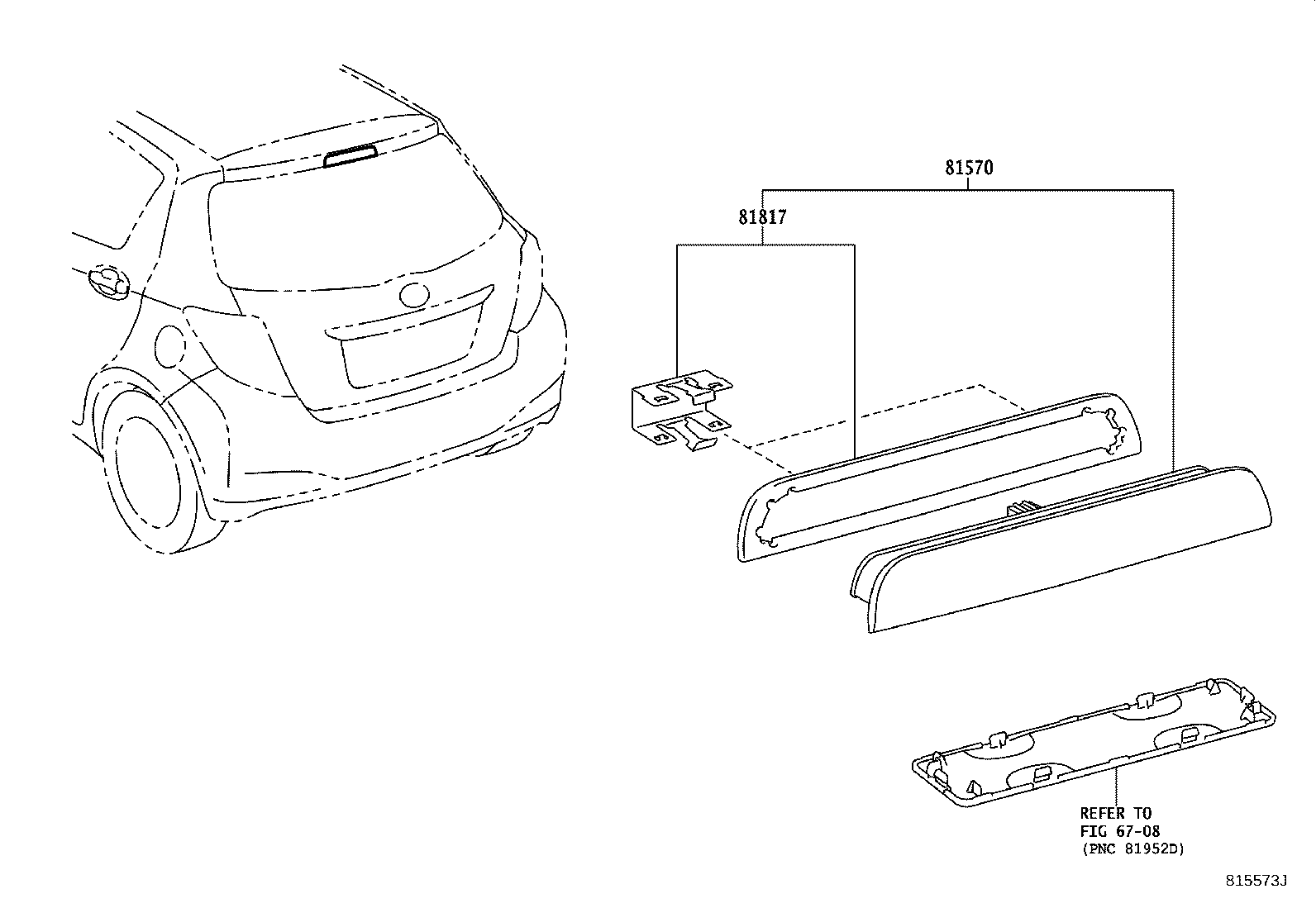

Click highlighted areas on diagram

diagram 6708 81570 81817
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-52220

KSP130,NSP130

 1
81817 - PACKING, CENTER STOP LAMP
81817-52020

KSP130,NSP130

 1
Linked diagrams
6708
