KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

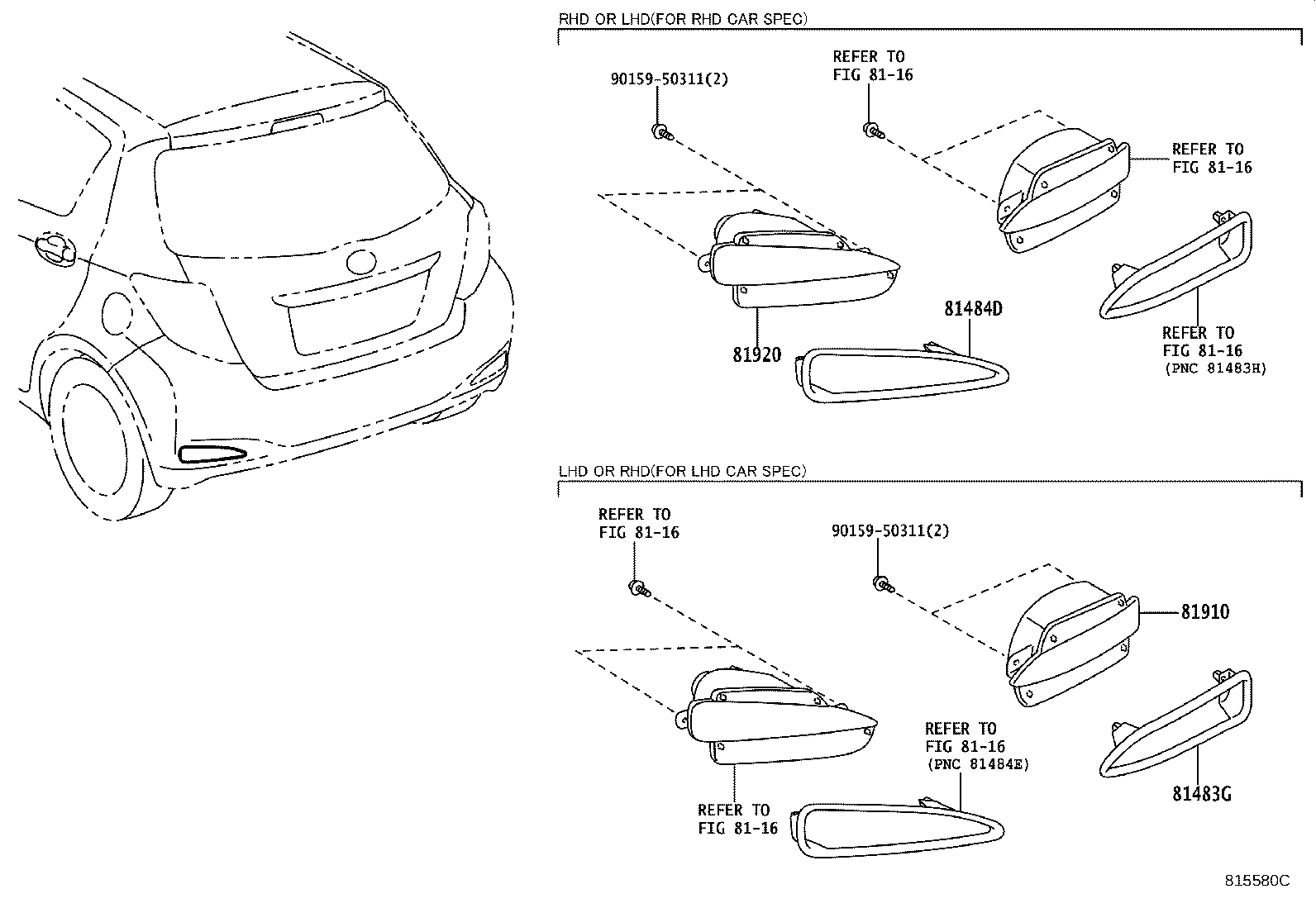

Click highlighted areas on diagram

diagram 8116 8116 8116 8116 8116 8116 81483G 81484D 81910 81920 9015950311 9015950311
Part # Description Qty Price
81483G - PROTECTOR, REAR FOG LAMP, RH
81483-52120A0

KSP130,NSP130..LHD

SUPER WHITE 2,040

 1
81483-52120B0

KSP130,NSP130..LHD

SILVER ME.,1F7

 1
81483-52120B1

KSP130,NSP130..LHD

GRAY ME.,1G3

 1
81483-52120B2

KSP130,NSP130..LHD

GIN BUCK ME.,1J1

 1
81483-52120D0

KSP130,NSP130..LHD

SUPER RED 5,3P0

 1
81483-52120J0

KSP130,NSP130..LHD

LT.BLUE M.M.,8S7

 1
81483-52120H0

KSP130,NSP130..LHD

TURQUOISE M.M.,788

 1
81483-52120C0

KSP130,NSP130..LHD

BLACK MC.,209

 1
81484D - PROTECTOR, REAR FOG LAMP, LH
81484-52020A0

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC,SUPER WHITE 2,040

 1
81484-52020H0

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC,TURQUOISE M.M.,788

 1
81484-52020J0

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC,LT.BLUE M.M.,8S7

 1
81484-52020B2

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC,GIN BUCK ME.,1J1

 1
81484-52020B1

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC,GRAY ME.,1G3

 1
81484-52020C0

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC,BLACK MC.,209

 1
81484-52020B0

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC,SILVER ME.,1F7

 1
81484-52020D0

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC,SUPER RED 5,3P0

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81580-0D060

KSP130,NSP130..LHD

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81590-0D060

KSP130,NSP130..LHD

HEAD LAMP AIMING-LH TRAFFIC SPEC

 1
Common parts
90159-50311
Linked diagrams
8116
