KSP130L-AHMRKW (2011)
Toyota Yaris (Jpp)
Production
Aug 2011
-
Aug 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )

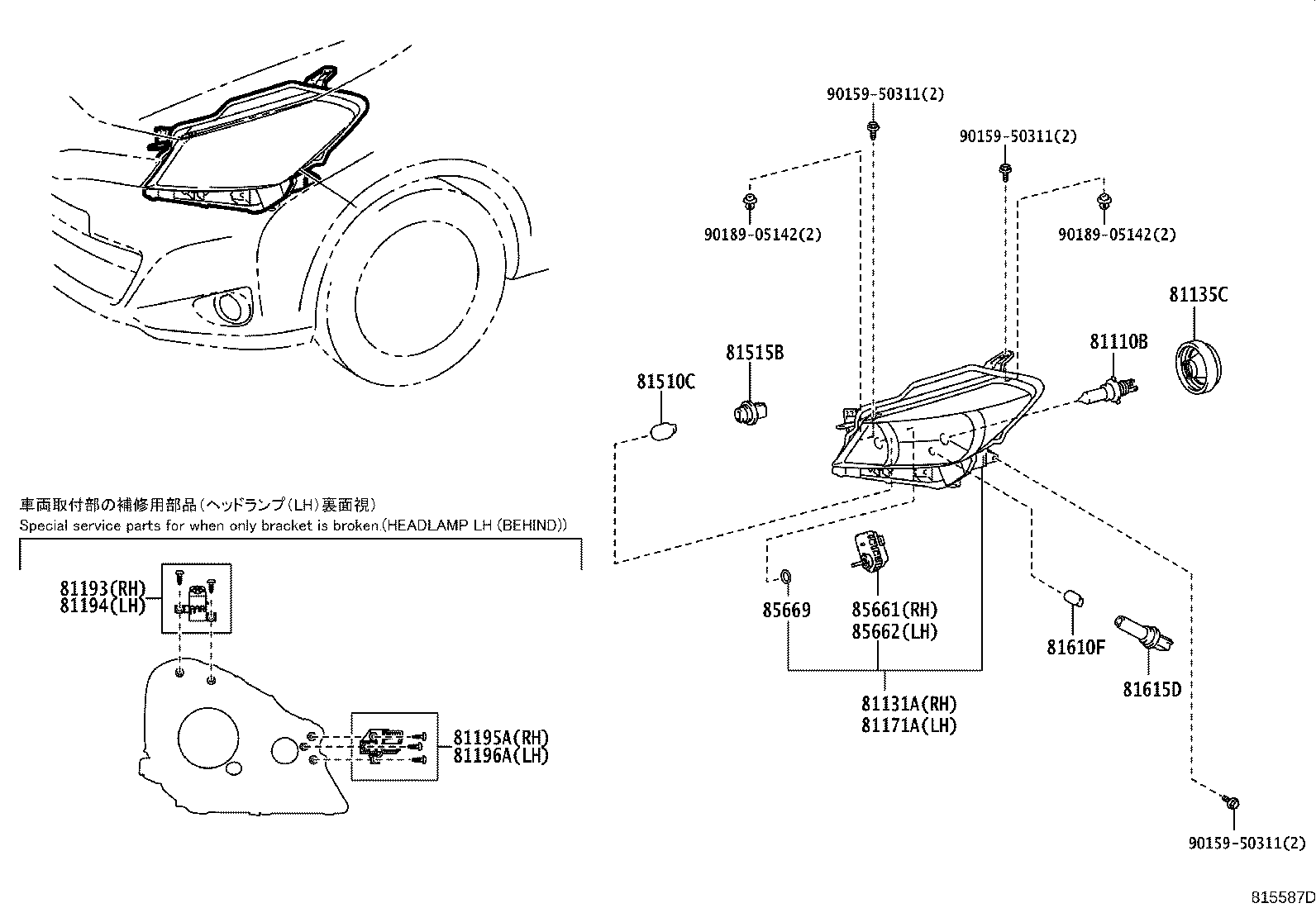

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KSP130,NSP130 12V 60/55W,HALOGEN |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-52D20 |
KSP130,NSP130..LHD HEAD LAMP AIMING-LH TRAFFIC SPEC |
1 | ||
| 81130-52D60 |
KSP130,NSP130..LHD |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 90075-65002 |
KSP130,NSP130 |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-52D20 |
KSP130,NSP130..LHD HEAD LAMP AIMING-LH TRAFFIC SPEC |
1 | ||
| 81170-52D60 |
KSP130,NSP130..LHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52200 |
KSP130,NSP130 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52200 |
KSP130,NSP130 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52160 |
KSP130,NSP130 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52160 |
KSP130,NSP130 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KSP130,NSP130 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KSP130,NSP130 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KSP130,NSP130 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
KSP130,NSP130 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
KSP130,NSP130 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KSP130,NSP130 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KSP130,NSP130 |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
