KSP130L-AHMRKW (2011)
Toyota Yaris (Jpp)
ILLUST NO. 1 OF 2(1108- )
ENGINE ROOM & EXTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16793E - LABEL, COOLING FAN CAUTION | ||||
| 16793-31030 |
1KRFE,1NRFE..KSP130,NSP130 |
1 | ||
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-33040 |
KSP130,NSP130 |
2 | ||
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-48020 |
NSP130..LHD..CVFC;KSP130,NSP130..MTM *111,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA) |
1 | ||
| 74511-60480 |
KSP130,NSP130 *111 |
1 | ||
| 74559A - PLATE, FUEL CAUTION | ||||
| 74559-52020 |
KSP130,NSP130 |
2 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-14050 |
KSP130,NSP130 |
1 | ||
| 74596A - LABEL, SIDE AIR BAG CAUTION | ||||
| 74596-53010 |
KSP130,NSP130 |
2 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-52B90 |
KSP130 TIRE & DISC WHEEL-175/70R14 5J BLACK |
1 | ||
| 42661-52C00 |
KSP130,NSP130 |
1 | ||
| 42661-52D50 |
KSP130..R TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-T125/70D15 ROUGHROAD SPEC |
1 | ||
| 42661-52D60 |
KSP130..R TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-T125/70D15 ROUGH ROAD SPEC |
1 | ||
| 42661-52C60 |
KSP130..R TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-GROUND TIRE(STEEL) |
1 | ||
| 42661-52C70 |
KSP130,NSP130..R TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-GROUND TIRE(STEEL) |
1 | ||
| 88723H - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-52120 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88723-28220 |
KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88733-52120 |
KSP130,NSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88723-28220 |
KSP130,NSP130 FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 88723-28220 |
KSP130,NSP130 |
1 | ||

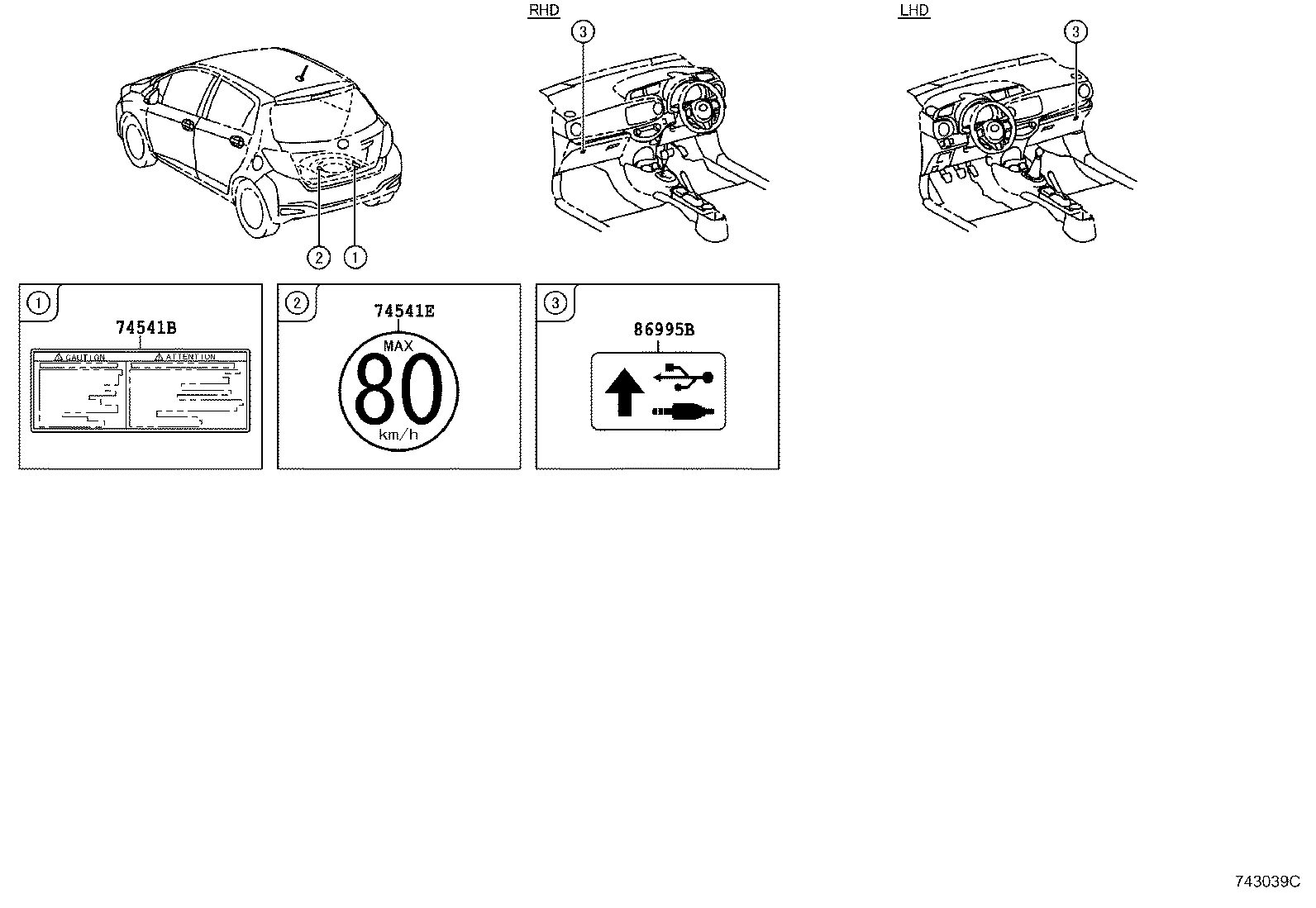

ILLUST NO. 2 OF 2(1108- )
INTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74541B - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-14060 |
KSP130..R TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-T125/70D15 ROUGHROAD SPEC |
1 | ||
| 42668-14060 |
KSP130..R TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-T125/70D15 ROUGH ROAD SPEC |
1 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
KSP130..R TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-T125/70D15 ROUGHROAD SPEC |
1 | ||
| 42668-20020 |
KSP130..R TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-T125/70D15 ROUGH ROAD SPEC |
1 | ||
| 42668-20020 |
KSP130..LHD..R TURKEY SPEC&TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-T125/70D15 ROUGH ROAD SPEC |
1 | ||
| 42668-20020 |
KSP130..LHD..R TURKEY SPEC&TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.&SPARE TIRE-T125/70D15 ROUGH ROAD SPEC |
1 | ||
| 42668-20020 |
KSP130,NSP130 SPARE TIRE-T125/70D16 |
1 | ||
| 86995B - PLATE, CAUTION | ||||
| 86995-52010 |
KSP130,NSP130 |
1 | ||
| 86995-52010 |
KSP130,NSP130 AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
