KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )LHD

Click highlighted areas on diagram

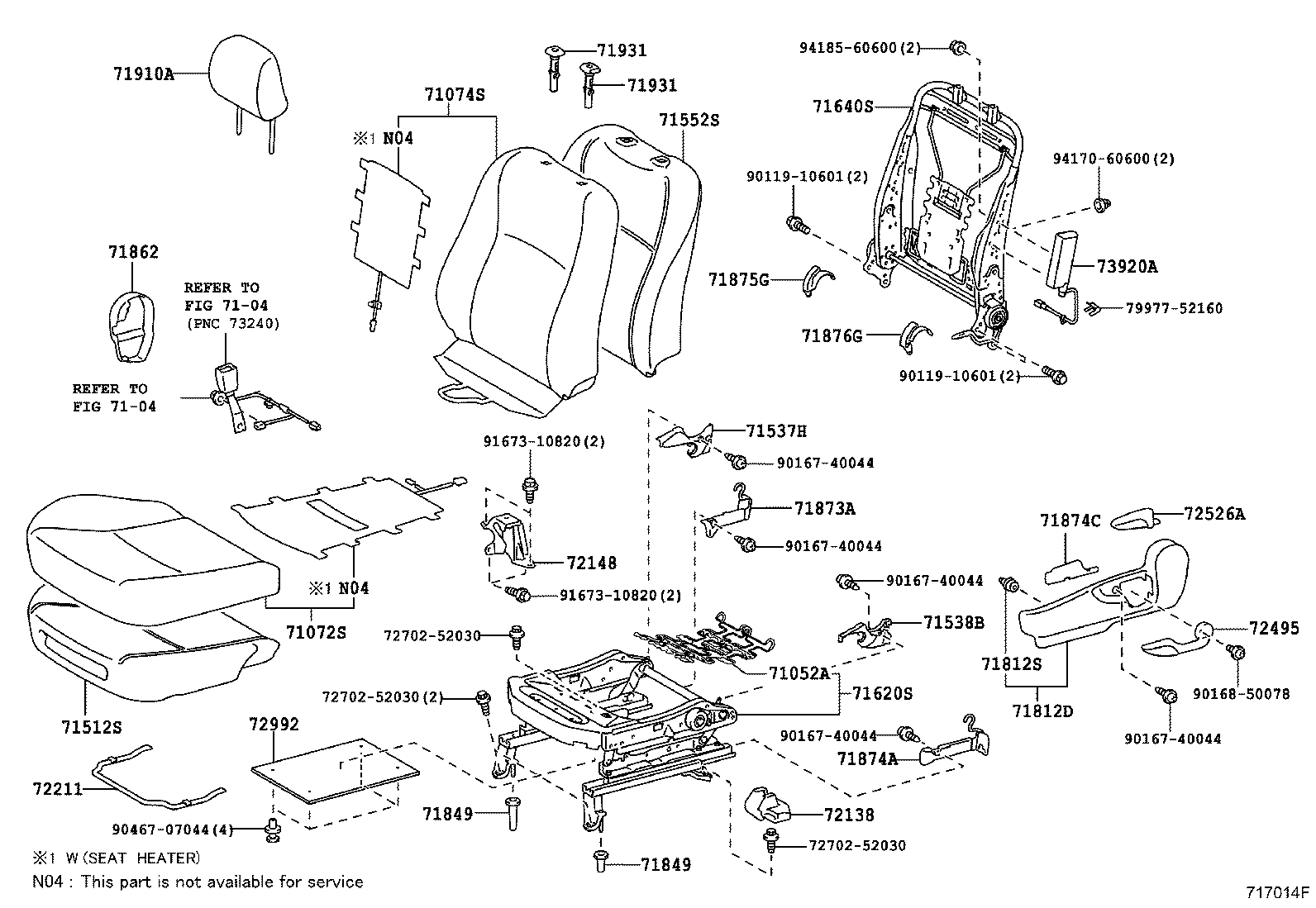

DRIVER SEAT

diagram 7104 7104 71052A 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71640S 71812D 71812S 71849 71849 71862 71873A 71874A 71874C 71875G 71876G 71910A 71931 71931 72138 72148 72211 72495 72526A 7270252030 7270252030 7270252030 72992 73920A 7997752160 9011910601 9011910601 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9046707044 9167310820 9167310820 9417060600 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-47060

KSP130,NSP130

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-52G50C1

KSP130,NSP130..LHD..R

BLACK,TRIM1#

 1
71072-52G60C1

KSP130,NSP130..LHD..R

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71072-52G51C1

KSP130,NSP130..LHD..R

BLACK,TRIM1#

 1
71072-52G61C1

KSP130,NSP130..LHD..R

N1 PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71072-52G61C1

KSP130,NSP130..LHD..R

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71072-52G60C1

KSP130,NSP130..LHD..R

N1 PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-52F00C2

KSP130,NSP130..LHD..R

N1 PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71074-52F00C2

KSP130,NSP130..LHD..R

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71074-52E90C2

KSP130,NSP130..LHD..R

BLACK,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-52420

KSP130,NSP130..LHD

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-52100C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-52050C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-52760

KSP130,NSP130

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-52070

KSP130,NSP130..LHD

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-52160

KSP130,NSP130

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52320C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH
71769-47020

KSP130,NSP130

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

KSP130,NSP130

INNER

 1
71848-52040

KSP130,NSP130

OUTER

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

KSP130,NSP130

INNER

 1
71848-52040

KSP130,NSP130

OUTER

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52210C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-47040

KSP130,NSP130..LHD

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-52220C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71874C - SHIELD, FRONT SEAT CUSHION, LOWER
71874-52230C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-60260C0

KSP130,NSP130

BLACK,TRIM1#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60270C0

KSP130,NSP130

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52D50C1

KSP130,NSP130

BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

KSP130,NSP130

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

KSP130,NSP130

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

KSP130,NSP130

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

KSP130,NSP130

W(LOCK),BLACK,TRIM1#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-52070C0

KSP130,NSP130

BLACK,TRIM1#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-52100

KSP130,NSP130

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52190

KSP130,NSP130

LH

 1
72211-52130

KSP130,NSP130

LH

 1
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-21010C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-47010C0

KSP130,NSP130

BLACK,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-52080

KSP130,NSP130

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-52180

KSP130,NSP130

 1
Common parts
72702-52030
79977-52160
90119-10601
90167-40044
90168-50078
90467-07044
91673-10820
94170-60600
94185-60600
Linked diagrams
7104

(1108- )LHD

Click highlighted areas on diagram

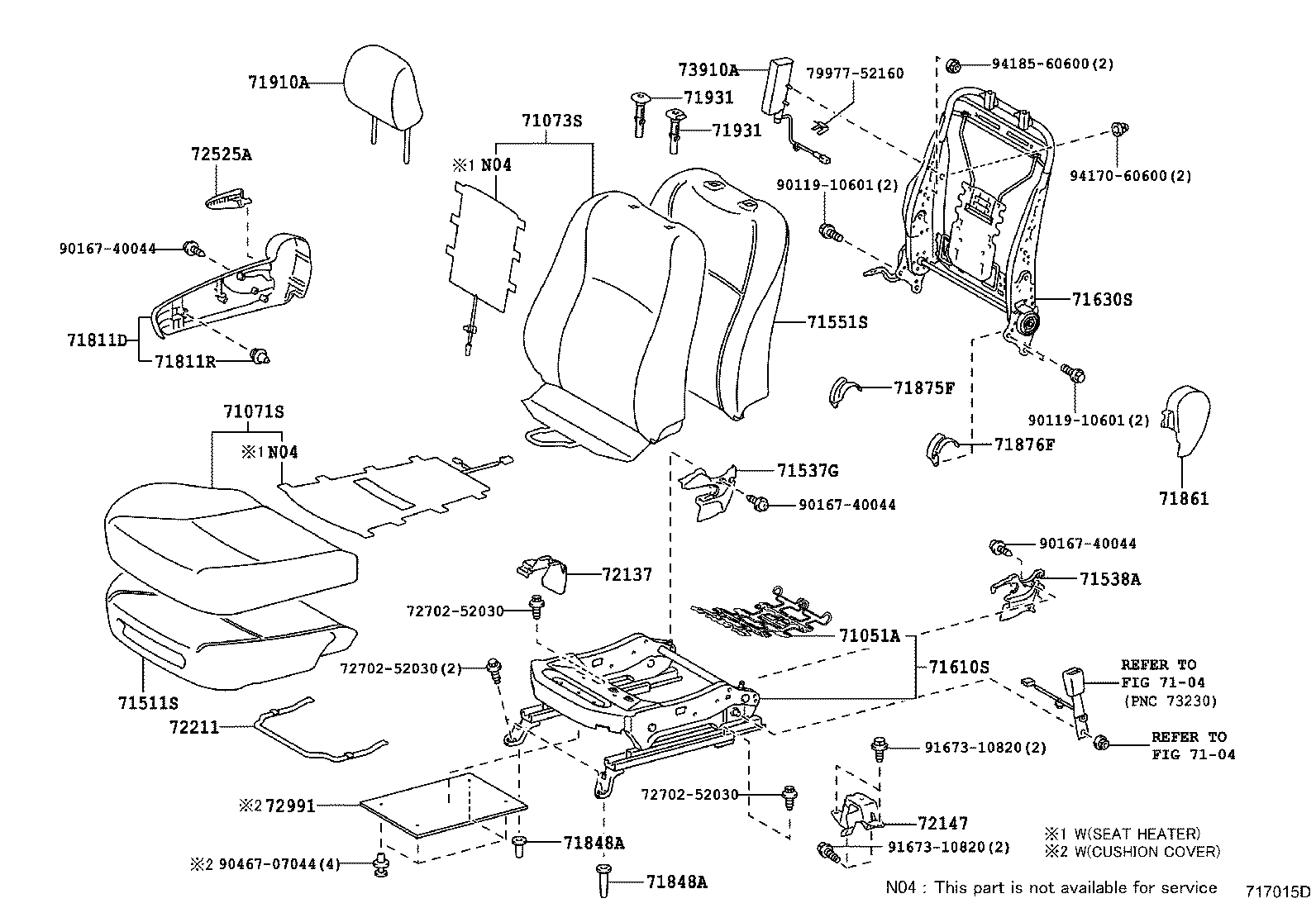

PASSENGER SEAT

diagram 7104 7104 71051A 71071S 71073S 71511S 71537G 71538A 71551S 71610S 71630S 71811D 71811R 71848A 71848A 71861 71875F 71876F 71910A 71931 71931 72137 72147 72211 72525A 7270252030 7270252030 7270252030 72991 73910A 7997752160 9011910601 9011910601 9016740044 9016740044 9016740044 9046707044 9167310820 9167310820 9417060600 9418560600
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-47060

KSP130,NSP130

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-52G00C1

KSP130,NSP130..LHD..R

BLACK,TRIM1#

 1
71071-52G10C1

KSP130,NSP130..LHD..R

N1 PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71071-52G10C1

KSP130,NSP130..LHD..R

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71071-52G01C1

KSP130,NSP130..LHD..R

BLACK,TRIM1#

 1
71071-52G11C1

KSP130,NSP130..LHD..R

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71071-52G11C1

KSP130,NSP130..LHD..R

N1 PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-52M40C2

KSP130,NSP130..LHD..R

N1 PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71073-52M40C2

KSP130,NSP130..LHD..R

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

 1
71073-52P80C1

KSP130,NSP130..LHD..R

BLACK,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-52030

KSP130,NSP130..LHD

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-52110C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-52060C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-52880

KSP130,NSP130

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-52040

KSP130,NSP130..LHD

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-52380

KSP130,NSP130

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-52340C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH
71769-47020

KSP130,NSP130

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-52040

KSP130,NSP130

OUTER

 1
71848-52050

KSP130,NSP130

INNER

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-52040

KSP130,NSP130

OUTER

 1
71848-52050

KSP130,NSP130

INNER

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-52250C0

KSP130,NSP130..LHD

BLACK,TRIM1#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-60260C0

KSP130,NSP130

BLACK,TRIM1#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-60270C0

KSP130,NSP130

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52D50C1

KSP130,NSP130

BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

KSP130,NSP130

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

KSP130,NSP130

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

KSP130,NSP130

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

KSP130,NSP130

W(LOCK),BLACK,TRIM1#

 2
72137 - COVER, SEAT TRACK, OUTER RH
72137-52090C0

KSP130,NSP130

BLACK,TRIM1#

 1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-52100

KSP130,NSP130

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52190

KSP130,NSP130

LH

 1
72211-52130

KSP130,NSP130

LH

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-47010C0

KSP130,NSP130

BLACK,TRIM1#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-52180

KSP130,NSP130

 1
Common parts
72702-52030
79977-52160
90119-10601
90167-40044
90467-07044
91673-10820
94170-60600
94185-60600
Linked diagrams
7104
