KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )R

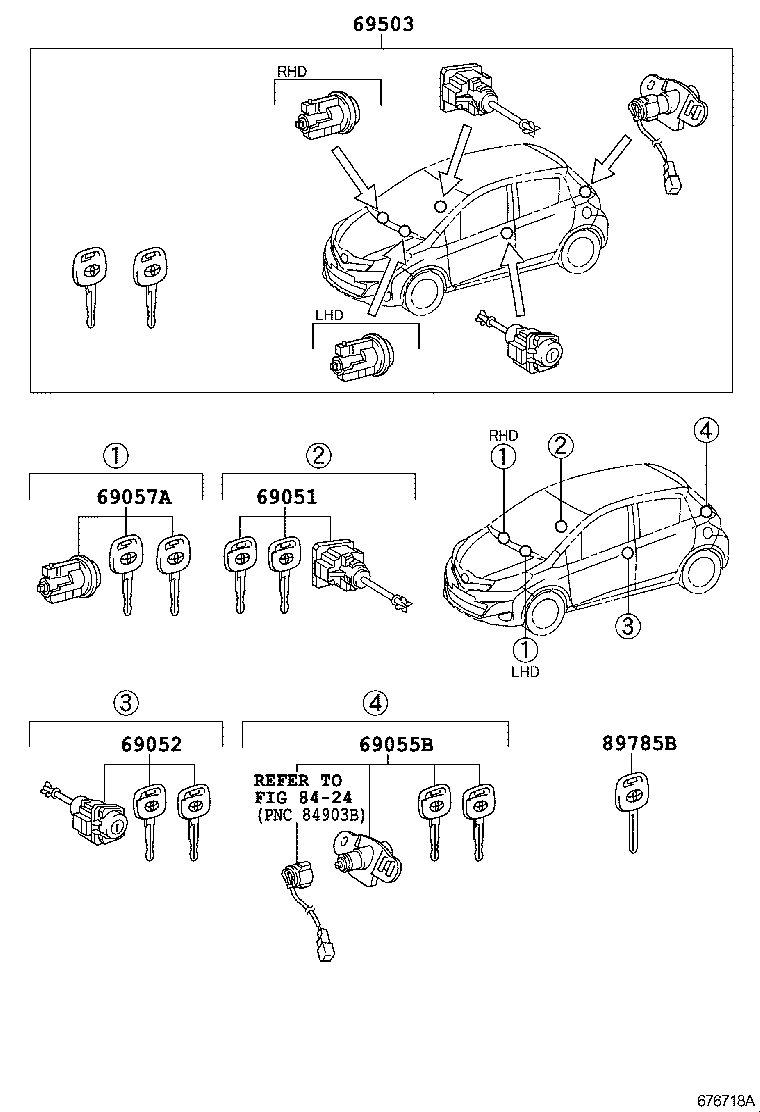

Click highlighted areas on diagram

W/O(WIRELESS DOOR LOCK)

diagram 69051 69052 69055B 69057A 69503 8424 89785B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-52490

KSP130,NSP130..RHD;KSP130,NSP130..LHD..R

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-52380

KSP130,NSP130..R;KSP130,NSP130..LHD..ACTV

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-52500

KSP130,NSP130..R

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-60610

KSP130,NSP130..R

 1
69503 - CYLINDER SET, LOCK
69005-52K50

KSP130,NSP130..R

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60210

KSP130,NSP130

 1
Linked diagrams
8424
