KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1108- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67751 67751A 67751A 67751A 67751A 67751B 67751B 74811D
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-52180C0

KSP130;NSP130..R;NSP130..RHD..CVFC

BLACK,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KSP130;NSP130..R;NSP130..RHD..CVFC

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KSP130;NSP130..R;NSP130..RHD..CVFC

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KSP130;NSP130..R;NSP130..RHD..CVFC

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

KSP130;NSP130..R;NSP130..RHD..CVFC

 9
67751B - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-58010

KSP130;NSP130..R;NSP130..RHD..CVFC

 2
67751B - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-58010

KSP130;NSP130..R;NSP130..RHD..CVFC

 2
74811D - HANDLE, DOOR PULL
74811-13010C0

KSP130;NSP130..R;NSP130..RHD..CVFC

BLACK,TRIM1#

 1

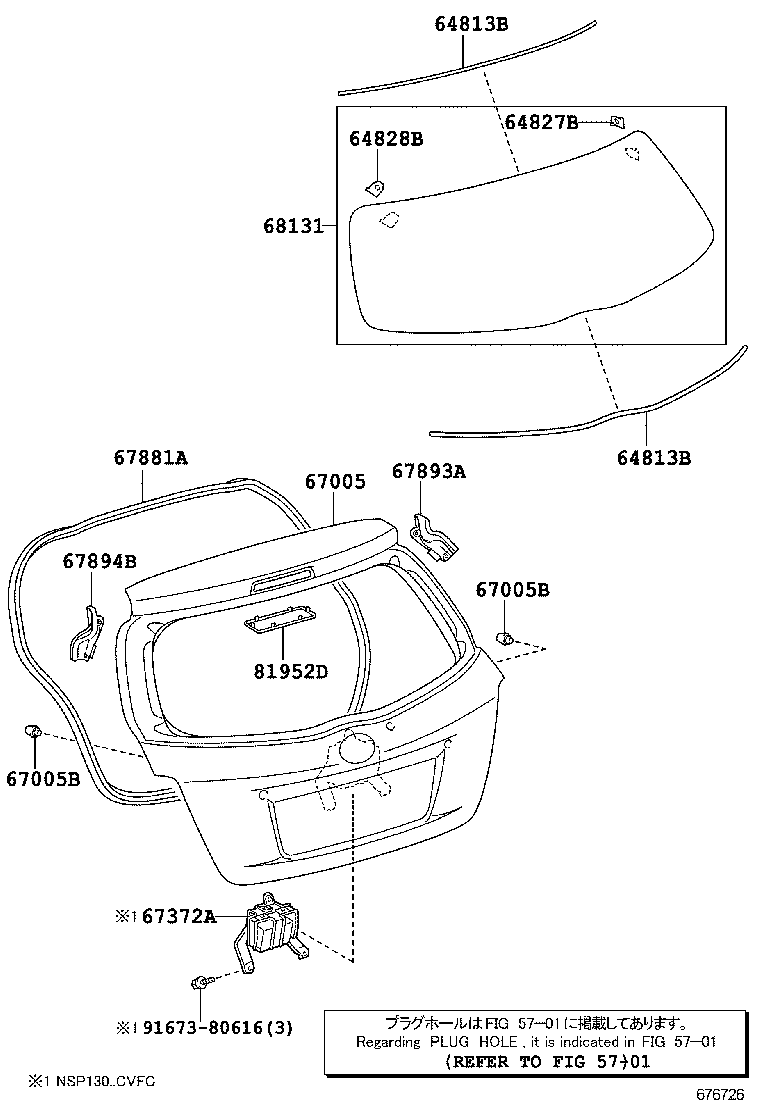

ILLUST NO. 1 OF 2(1108- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 64813B 64813B 64827B 64828B 67005 67005B 67005B 67372A 67881A 67893A 67894B 68131 81952D 9167380616
Part # Description Qty Price
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-50140

KSP130,NSP130

 2
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-50140

KSP130,NSP130

 2
64827B - CLIP, BACK WINDOW GLASS, RH
64827-52090

KSP130,NSP130

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-52090

KSP130,NSP130

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52C20

KSP130,NSP130

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09146

KSP130,NSP130

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09146

KSP130,NSP130

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-52180

KSP130,NSP130

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-52090

KSP130,NSP130

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-52090

KSP130,NSP130

 1
68131 - GLASS, BACK DOOR
68105-52600

KSP130,NSP130

*UVCEHT,T=3.1,GREEN

 1
81952D - COVER, REAR LAMP
81952-52020

KSP130,NSP130

 1
Common parts
91673-80616
Linked diagrams
5701
